. 2024 Jul 12;16(7):e64423.
doi: 10.7759/cureus.64423. eCollection 2024 Jul.

Fracture Resistance of Zirconia Surveyed Crowns With Digitally Designed and Hand-Modified Occlusal Rest Seats

Nabeel M Munshi  1 , Mohammed Alsufayri  2 , Adham Alzahrani  2 , Carlos A Jurado  3 , Maher S Hajjaj  4 , Mosa Altassan  1 , Saeed J Alzahrani  4
Affiliations

Fracture Resistance of Zirconia Surveyed Crowns With Digitally Designed and Hand-Modified Occlusal Rest Seats

Nabeel M Munshi et al. Cureus. .

Abstract

Background In light of the trend of using zirconia crowns, clinicians will likely face abutment included in removable partial dentures (RPD) designs with existing zirconia. However, the decision to replace the existing crown with a surveyed crown or modify the existing crown to accept the RPD is unclear. To the best of our knowledge, there is a lack of literature on the effect of preparing a rest seat on the existing monolithic zirconia crown in the patient's mouth on the fracture resistance of the crown. Therefore, in this study, we aimed to evaluate the fracture resistance of computer-aided design/computer-aided manufacturing (CAD/CAM) zirconia surveyed crowns with digitally designed rest seats and hand-modified rest seats. Methods Thirty CAD/CAM zirconia surveyed crowns were digitally designed and fabricated and divided into groups (n=10 per group) as follows: Group 1 comprised surveyed crowns with no occlusal rest seat; Group 2 comprised surveyed crowns with a digitally designed mesial rest seat; and Group 3 comprised surveyed crowns with a hand-modified mesial rest seat. Then, with all the crowns cemented to metal dies, the specimens were subjected to a fracture resistance test using a universal testing machine (Model 8501 Instron, Norwood, MA, USA). Results Surveyed crowns without any rest seat and those with digitally created and hand-modified rest seats displayed different fracture resistances: crowns with no rest seat offered the highest fracture resistance (5831 ± 895.15 N), followed by those with a digitally designed and milled rest seat (5280 ± 1673.33 N). Crowns with a hand-modified rest seat provided the lowest fracture resistance (4976 ± 322.5 N). Based on our results, surveyed crowns without a rest seat displayed higher fracture resistance than those with a rest seat. Conclusion The fracture resistance of crowns with a digitally designed and milled rest seat was statistically similar to that of control crowns with no rest seat, whereas hand-modified rest seats significantly reduced the fracture resistance of surveyed zirconia crowns.

Keywords: fracture resistance; mechanical testing; milling; monolithic zirconia; removable partial denture; surveyed crowns; zirconia cad-cam crown; zirconia crowns.

PubMed Disclaimer

Conflict of interest statement

Human subjects: All authors have confirmed that this study did not involve human participants or tissue. Animal subjects: All authors have confirmed that this study did not involve animal subjects or tissue. Conflicts of interest: In compliance with the ICMJE uniform disclosure form, all authors declare the following: Payment/services info: All authors have declared that no financial support was received from any organization for the submitted work. Financial relationships: All authors have declared that they have no financial relationships at present or within the previous three years with any organizations that might have an interest in the submitted work. Other relationships: All authors have declared that there are no other relationships or activities that could appear to have influenced the submitted work.

Figures

Figure 1

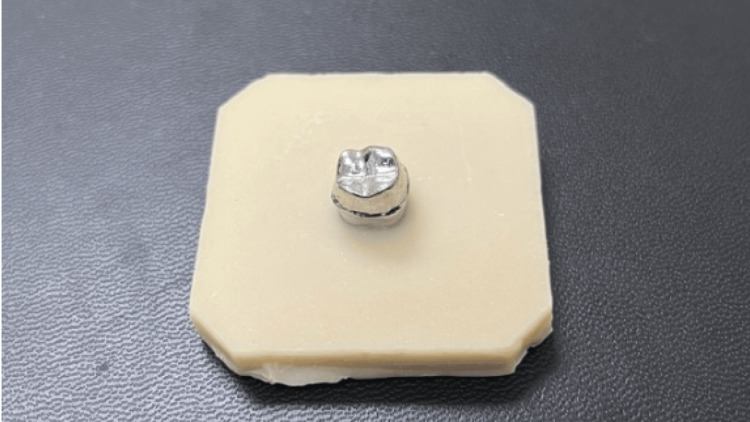

Figure 1. Metal die embedded in acrylic resin.
Figure 2

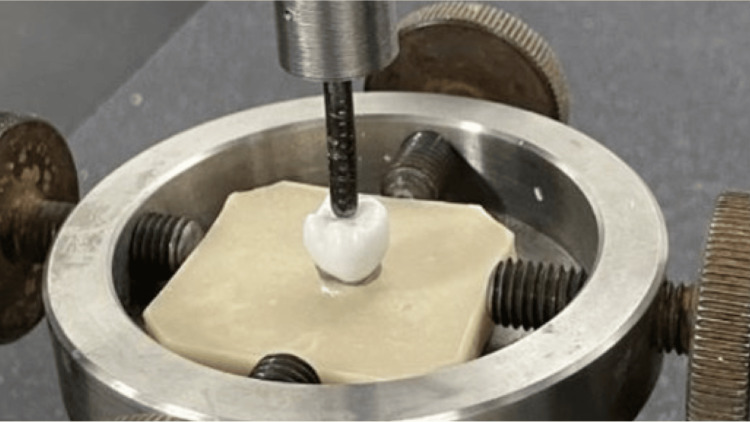

Figure 2. Crown subjected to a load to fracture using a universal testing machine.
