Workflow for Maxilla/Mandible Individual [Mai®] Implant by Integra Implants-How Individual Implants Are Manufactured

Rafał Zieliński  1 , Agata Kołkowska  2   3 , Jerzy Sowiński  4 , Bartłomiej Konieczny  5 , Marcin Kozakiewicz  6 , Wojciech Simka  2
Affiliations

Workflow for Maxilla/Mandible Individual [Mai®] Implant by Integra Implants-How Individual Implants Are Manufactured

Rafał Zieliński et al. Biomedicines. .

Abstract

The newest technology allows the medical industry to manufacture innovative products such as milled titanium prosthodontic parts in an implant for a screw-retained suprastructure. In the literature, there are some articles on the clinical usage of subperiosteal implants, but none of these publications, either in PubMed or Google Scholar, thoroughly describe the workflow for the design and manufacture of individual implants for maxillofacial surgery with milled threads for a screw-retained prosthodontic bridge. The aim of the article is to present a step-by-step method of producing personalized implants, from the first steps of production to the implantation of the final product. The article includes information on patient qualification for surgery, computational preparation and skull printing, planning of Mai Implants®, meshing, 3D printing and milling, cleaning, rinsing, anodizing, and laser marking, as well as the cleaning and sterilization process in a hospital or dental clinic. A detailed description of implant production allows for the analysis of each step and the development of technology. The production of implants is an expensive procedure, but considering all the advantages of the Mai Implants® treatment and the disadvantages of alternatives, the product is worth the price.

Keywords: Mai Implants®; individual implant; subperiosteal implant for maxillofacial; subperiosteal implants; technology process of manufacturing individual implants.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflicts of interest.

Figures

Figure 1
Figure 1
(A) Composite visible on the vestibular surface on the tooth. (B) The same patient without a bridge. The excessively vestibular setting of the multiunit has resulted in anunesthetic hole that must be covered with composite on the acrylic bridge in a dental clinic.
Figure 2
Figure 2

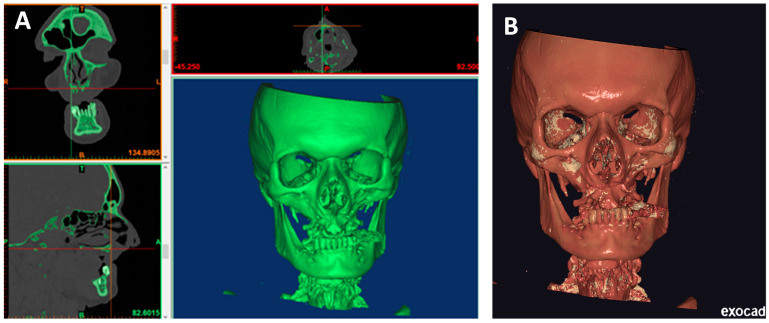

(A) Setting the threshold in the software for segmentation purposes—Materialise® (upper image—front view; bottom image—lateral view). (B) Importing .DICOMs and .STL files into Exoplan®.
Figure 3
Figure 3

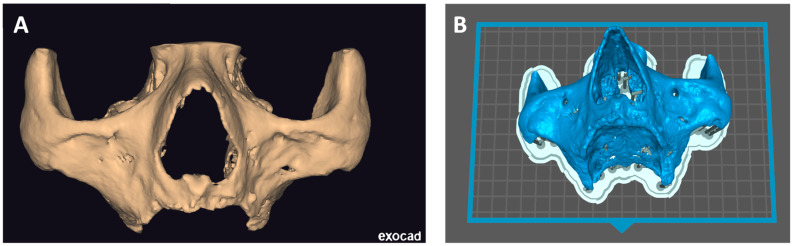

(A) STL file after surface polishing in GeoMagic Studio® imported into ExoCAD®and ready for export into 3D printer software. (B) Skull model with suprastructures set in 3D printer software.
Figure 4
Figure 4

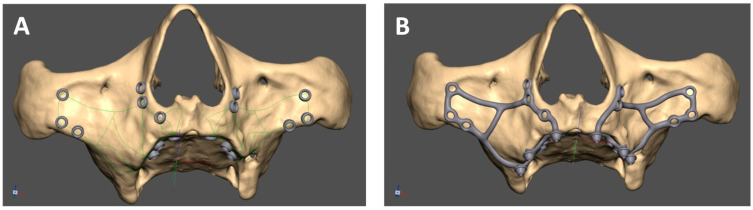

(A) Mai Implant® with holes where the bone is sufficiently thick. (B) Holes linked with connectors and the placement of multiunits in Mai Implant®.
Figure 5
Figure 5

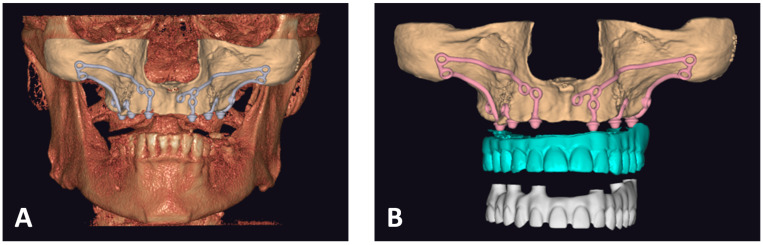

(A) An individual implant after the segmentation process. (B) The Mai Implant® after the superimposition of a CBCT scan image with a removable prosthesis with radiopaque gutta-percha balls.
Figure 6
Figure 6

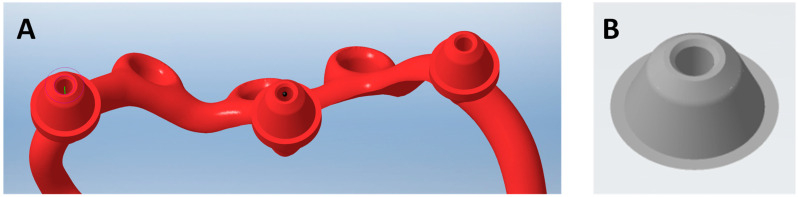

(A) Internal threads in the multiunit. (B) The Integra Multiunit®.2.5 project (B).
Figure 7
Figure 7
(A) The mesh with three main connectors. (B) The mesh with new connectors.
Figure 8
Figure 8

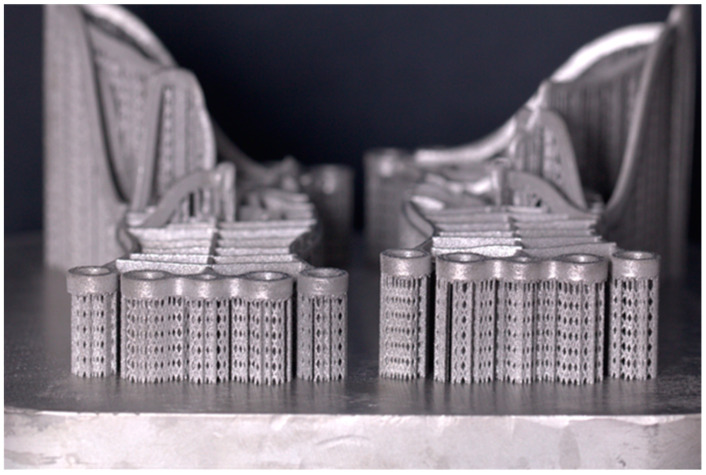

Three-dimensional printed Mai Implants® just before removal from the Lasertec 12 SLM (DMG Mori, 2-3-23 Shiomi Koto-ku, Tokyo, 135-0052, Japan).
Figure 9
Figure 9

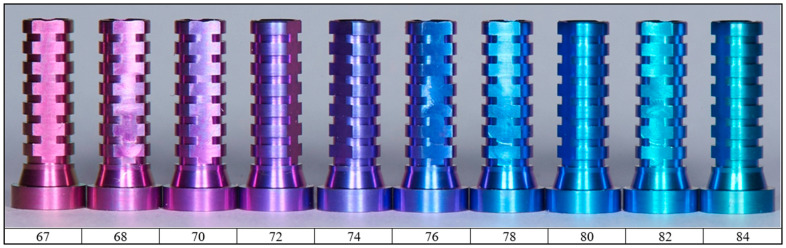

Example of Ti6Al4V samples anodized in different voltage; numbers indicate an anodizing voltage [V].
Figure 10
Figure 10

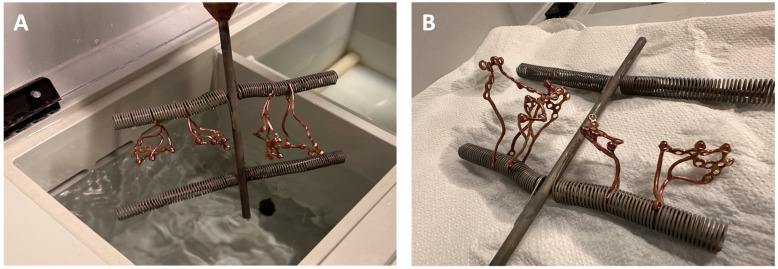

Anodizing process—individual implants mounted to an anodic holder: (A) In an electrolyzer; (B) Drying on air.
Figure 11
Figure 11

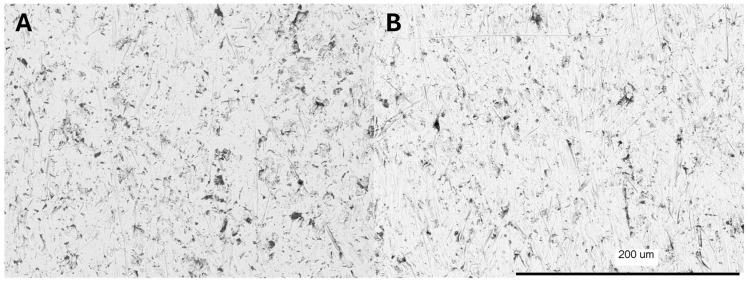

SEM pictures of rough Ti6Al4V surface (A) and anodized surface (B).
