Observational Study
. 2024 Oct 1;72(10):1501-1505.
doi: 10.4103/IJO.IJO_3237_23. Epub 2024 Sep 27.

Volume measurement of the vitrectomised eye and its applications in practice

Surbhi Agrawal  1 , P Mahesh Shanmugam  1 , Divyansh Kailashchandra Mishra  1 , Rajesh Ramanjulu  1 , H N Ravishankar  2 , Pradeep Sagar  2 , Harshal Sahare  2 , Shwetha Suryakanth  1
Affiliations
Observational Study

Volume measurement of the vitrectomised eye and its applications in practice

Surbhi Agrawal et al. Indian J Ophthalmol. .

Abstract

Purpose: To estimate the vitreous cavity replacement volume after pars plana vitrectomy and analyze its correlation with axial length and refractive error.

Methods: Observational cross-sectional study on 103 eyes undergoing vitrectomy. Fluid-air exchange was performed using a soft-tip cannula connected to a PVC tubing, the distal end of which opened into a 10-cc syringe without the plunger. The collected fluid was measured (and correction factors applied) to estimate the vitreous cavity volume.

Results: The mean axial length of 103 eyes was 23.43 ± 1.54 mm. The mean vitreous cavity volume was 4.46 ± 0.83 mL (2.8-8.1 mL). There was a strong positive correlation between axial length and vitreous volume, which was stronger for pseudophakic and aphakic groups than for phakic groups.

Conclusion: Accurate assessment of vitreous cavity volume can enable precise quantification of tamponade, intravitreal drugs, and intravitreal chemotherapeutic agents. This will allow better surgical outcomes, decreased toxicity, and increased cost-effectiveness due to lesser wastage.

Objective: To estimate the vitreous cavity replacement volume after pars plana vitrectomy and analyze its correlation with axial length and refractive error.

PubMed Disclaimer

Conflict of interest statement

There are no conflicts of interest.

Figures

Figure 1
Figure 1
A soft-tip cannula was connected to a fixed-length PVC tubing, and the other end of this tube opened into a 10-cc syringe (with the plunger removed); (a). Fluid collected in the syringe was measured to obtain volume x (b)
Figure 2
Figure 2

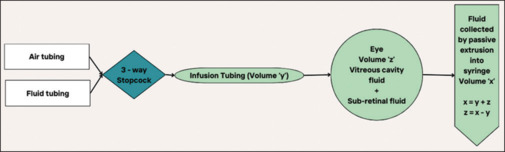

Flow diagram to demonstrate the various fluid compartments relevant to the intraoperative measurement of vitrectomised eye volume. x is the volume of fluid collected after fluid-air exchange. It includes fluid in the eye and fluid in the infusion tubing. y is the volume of fluid in the infusion tubing and was measured using the technique described in the supplemental video. z is the volume of the vitrectomised eye, obtained as follows, z = x − y
Figure 3
Figure 3

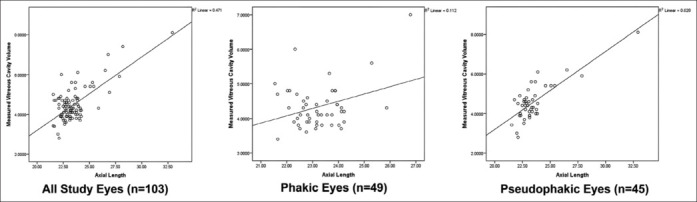

Scatter plot for measured vitreous cavity volume (y-axis) as a function of axial length (y-axis). Graphs were plotted for the entire study population (left), phakic eyes (middle), and pseudophakic eyes (right). Aphakic eyes (n = 9) did not have a sufficient sample size due to the general rarity of such patients in modern ophthalmology
Figure 4
Figure 4

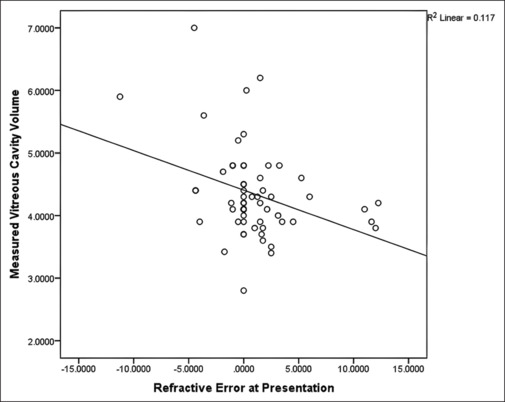

Scatter plot for measured vitreous cavity volume (y-axis) as a function of refractive error (y-axis)
