Development and extensive sequencing of a broadly-consented Genome in a Bottle matched tumor-normal pair

Abstract

The Genome in a Bottle Consortium (GIAB), hosted by the National Institute of Standards and Technology (NIST), is developing new matched tumor-normal samples, the first to be explicitly consented for public dissemination of genomic data and cell lines. Here, we describe a comprehensive genomic dataset from the first individual, HG008, including DNA from an adherent, epithelial-like pancreatic ductal adenocarcinoma (PDAC) tumor cell line and matched normal cells from duodenal and pancreatic tissues. Data for the tumor-normal matched samples comes from seventeen distinct state-of-the-art whole genome measurement technologies, including high depth short and long-read bulk whole genome sequencing (WGS), single cell WGS, and Hi-C, and karyotyping. In future publications, these data will be used by the GIAB Consortium to develop matched tumor-normal benchmarks for somatic variant detection. We expect these data to facilitate innovation for whole genome measurement technologies, de novo assembly of tumor and normal genomes, and bioinformatic tools to identify small and structural somatic mutations. This first-of-its-kind broadly consented open-access resource will facilitate further understanding of sequencing methods used for cancer biology.

Figure 1

HG008 Passaging and Measurements. The PDAC tumor and normal duodenal and pancreatic tissues were resected from the HG008 individual in 2020. The HG008-T cell line was established by MGH and a bulk growth of tumor cells was produced for most measurements. This bulk growth and harvest is known as batch 0823p23. Tumor and normal samples were sent for measurements on multiple technologies denoted by the colored ovals; empty ovals are where no corresponding measurement was made. To characterize the HG008-T cell line during passaging, preliminary measurements were made and noted below the passage points denoted by “p#”. In 2024, an aliquot of the cell line was transferred to NIST by MGH for additional culturing and measurements.

Figure 2

Directional Genomic Hybridization (dGH) and G-banded karyograms for three passages of the HG008-T tumor cell line. Karyograms show examples of cells with and without whole genome doubling. (a-b) dGH karyograms from NIST passage 21 (2024) have each chromosome colored by one of five dyes, and information from G-banded karyograms and copy number alterations were used to make preliminary assignments of chromosomes. (c-d) G-banded karyotypes from MGH passage 31 (2022) with and without whole genome doubling. In 25 spreads, the chromosome count varied from 29 to 71 chromosomes per spread, with the exception of two polyploid spreads of over 100 chromosomes each. While the ploidy number varied, the karyotype was relatively consistent with minor variations from spread to spread. (e) G-banded karyotype from NIST passage 18 (2024) without whole genome doubling, representative of 17 of 20 spreads that had 34 to 36 chromosomes. While not shown, three out of twenty spreads showed whole genome doubling, with counts ranging from 68 to 70 chromosomes.

Figure 3

Haplotype Specific Coverage Plot. Plot shows coverage of haplotype 1 (HP-1, red) and haplotype 2 (HP-2, blue) for all chromosomes using HG008-T HiFi reads (Dataset ID: PB-HiFi-1) visualized using Wakhan (https://github.com/KolmogorovLab/Wakhan).

Figure 4

Ancestry Principal Component Analysis (PCA). PCA plot for HG008 using continental super populations of the 1000 Genomes reference samples. The PCA uses PLINK to visualize clusters of genetic similarity, and we show the first three principal component axes, which distinguish the super populations. Yellow points indicate both the normal and tumor cells’ variants from the HG008 individual make them most similar to individuals with European ancestry based on the first three principal components.

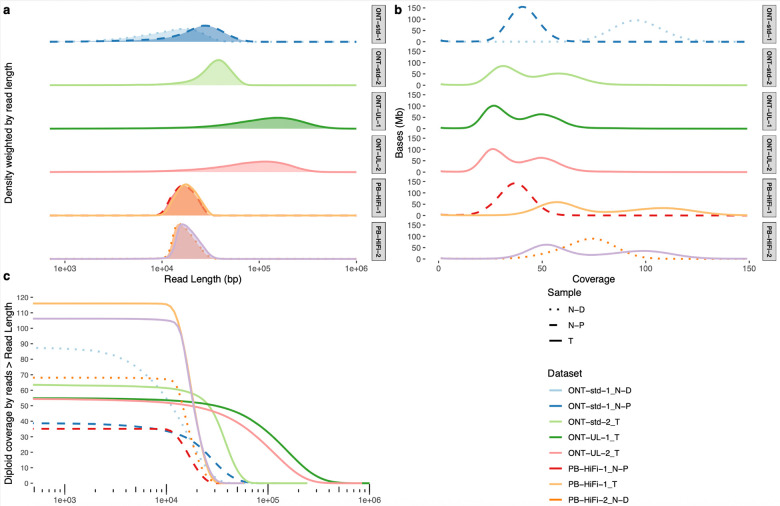

Figure 5

Long-read Coverage Plots. Read length and coverage distributions for long-read datasets (a) Mapped read length distribution weighted by aligned read length. (b) Coverage distribution showing number of genome positions (Mb) at each integer coverage. (c) Inverse cumulative distribution showing coverage of apparently diploid regions by aligned reads longer than the length on the x axis (this assumes no whole genome doubling).
