. 2024 Sep 12;9(38):40110-40121.
doi: 10.1021/acsomega.4c06087. eCollection 2024 Sep 24.

Study on the Cyclic Impact Mechanical Characteristics of Coal under Confining Pressure

He Yongliang  1   2 , Sun Liying  1   2 , Xing Xuegang  3
Affiliations

Study on the Cyclic Impact Mechanical Characteristics of Coal under Confining Pressure

He Yongliang et al. ACS Omega. .

Abstract

Coal damage accumulation and strength deterioration caused by mining-induced disturbances in deep mines are among the factors influencing the occurrence of dynamic disasters such as rock bursts. To study the mechanical deformation and failure characteristics of coal masses under both cyclic impact and confining pressure, SHPB experiments were performed to systematically analyze the behavior of coal samples under 1, 2, and 3 cycles at impact pressures of 0.25, 0.30, 0.35, 0.40, and 0.45 MPa. To study the influence of pressure and impact frequency on the dynamic mechanical failure of coal samples, a weakening effect model of coal samples under confining pressure was established, revealing the dynamic mechanical characteristics and failure mechanism of coal samples under different impact pressures and impact frequencies. The confining pressure SHPB results reveal that the number of cycles and impact pressure are inversely proportional to the peak stress and are proportional to the degree of weakening. The peak stress weakening coefficient of the coal samples under the different impact pressures ranged from 28.5 to 73.2%, and a linear weakening relationship with the number of cycles was obtained. The coal exhibited an end effect-controlled Y-shaped failure mode under both confining pressure and dynamic loading. This study provides an experimental reference for preventing the energy absorption and erosion of weak structures around rock bursts and improving the stability of supporting structures.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing financial interest.

Figures

Figure 1
Figure 1
Schematic of the sample processing process.
Figure 2
Figure 2
SHPB experimental system.
Figure 3
Figure 3

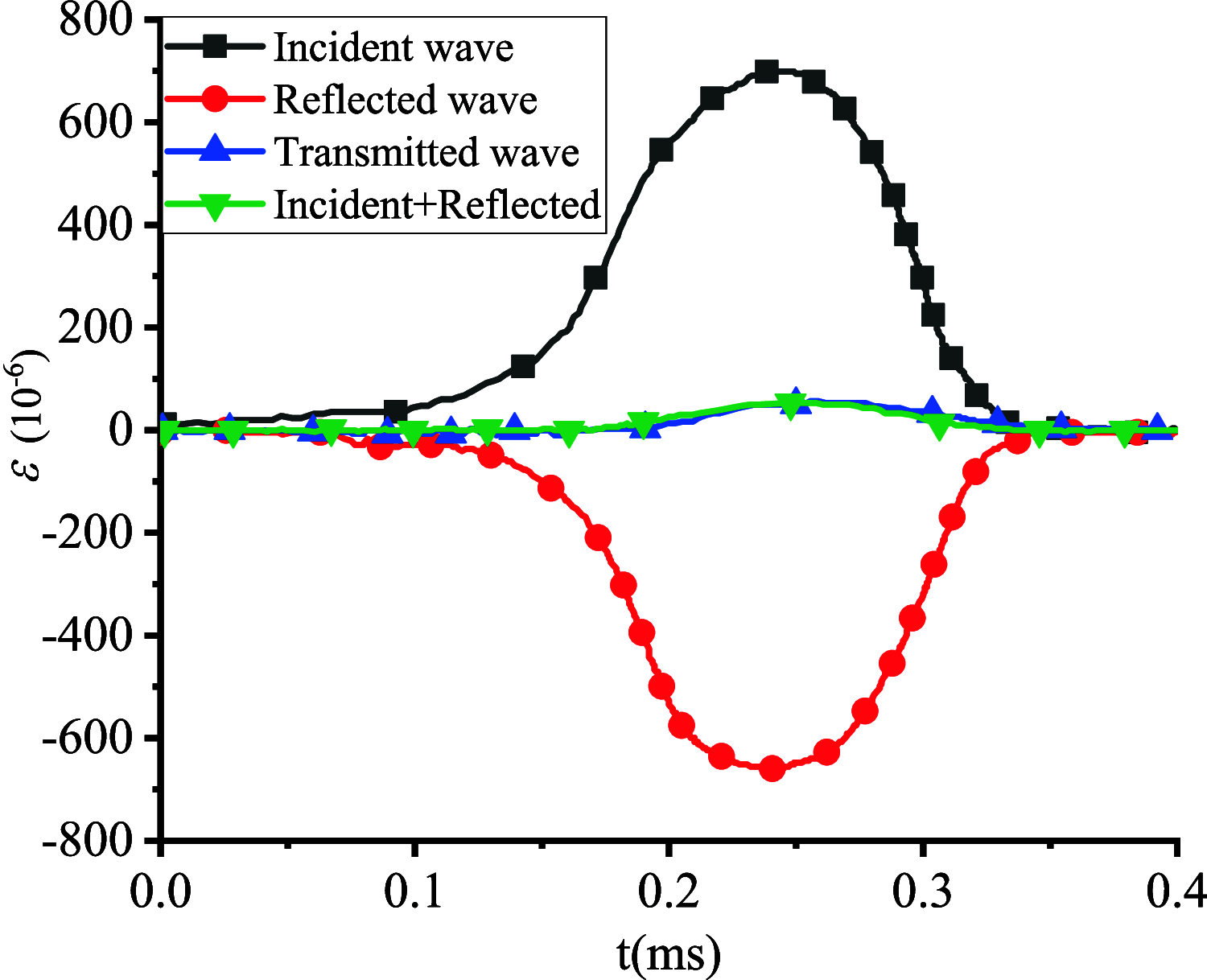

Typical waveforms.
Figure 4
Figure 4
Testing method.
Figure 5
Figure 5
Typical stress–strain curve under dynamic loading with confining pressure.
Figure 6
Figure 6
Stress–strain curves of coal samples under dynamic loading with respect to the confining pressure.
Figure 7
Figure 7
Relationships between the peak stress and number of cycles.
Figure 8
Figure 8
Relationship between the peak stress and impact pressure.
Figure 9
Figure 9
Relationship between the peak stress and strain rate.
Figure 10
Figure 10

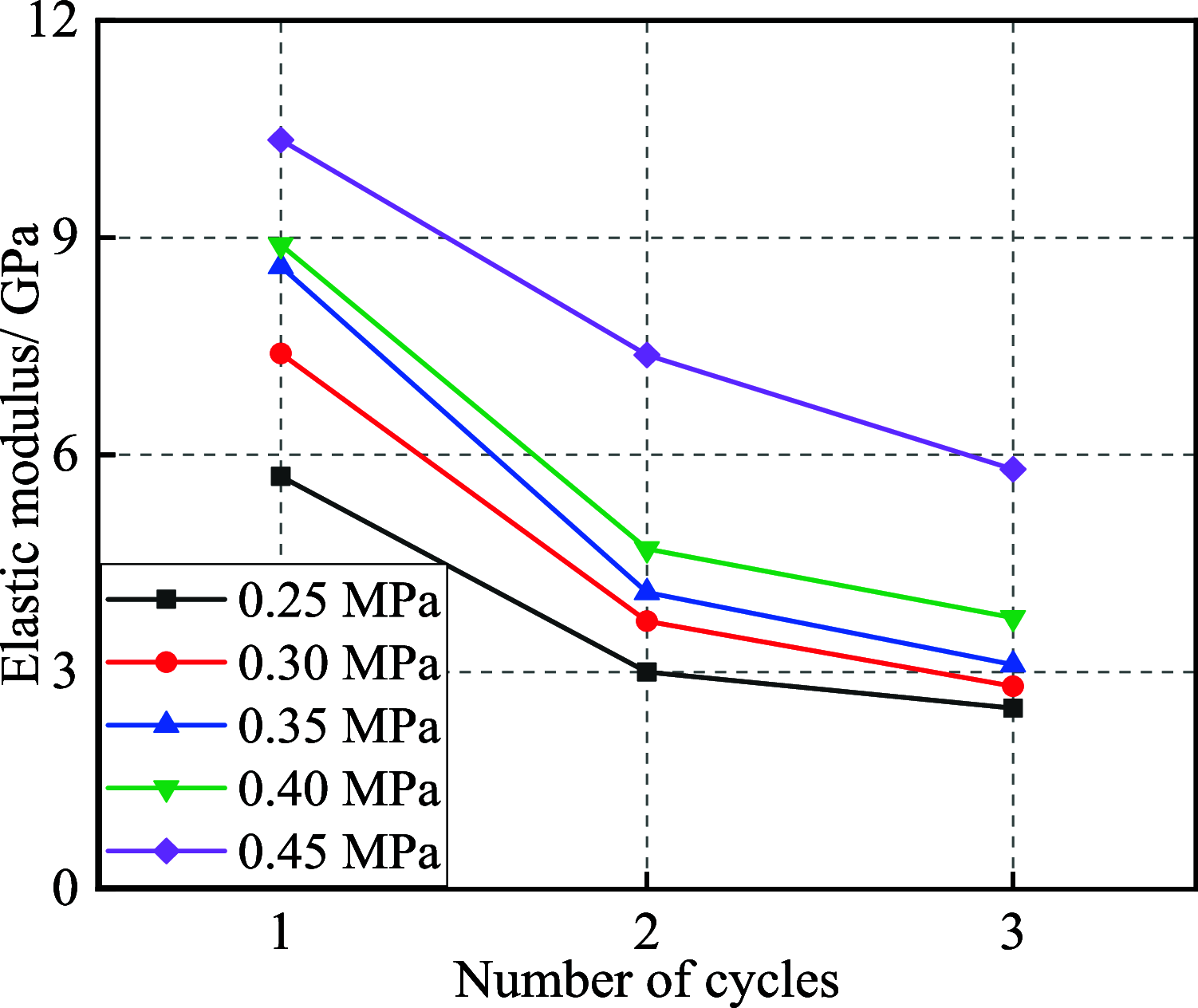

Relationship between the elastic modulus and number of cycles.
Figure 11
Figure 11
Relationship between the weakening factor and the impact pressure.
Figure 12
Figure 12
Failure modes of coal samples under dynamic loading with confining pressure.
Figure 13
Figure 13

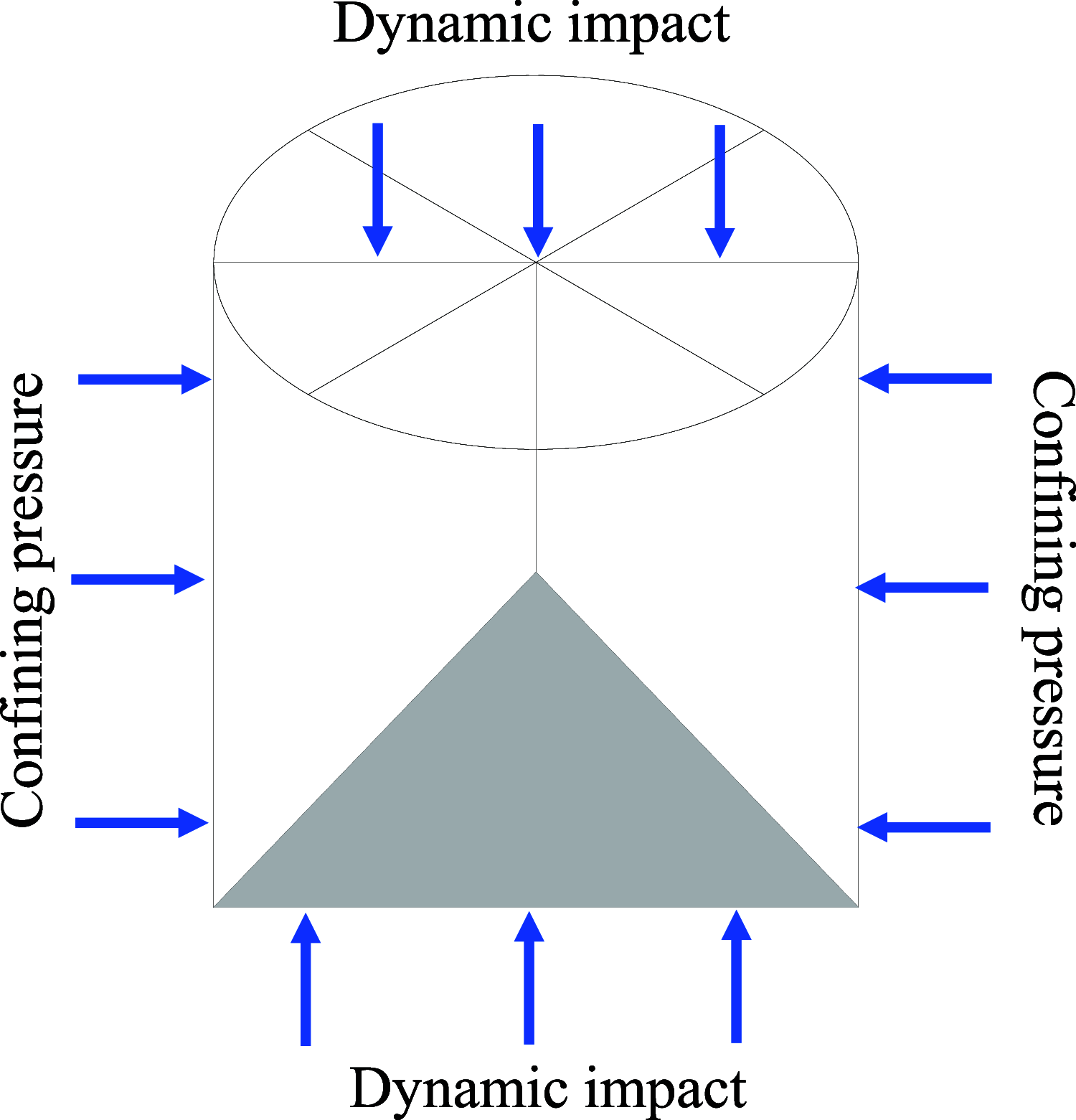

Failure mechanism of the coal samples.
See this image and copyright information in PMC

References

    1. Liu Q.; Li X.; Meng X. Effectiveness research on the multi-player evolutionary game of coal-mine safety regulation in China based on system dynamics. Saf. Sci. 2019, 111, 224–233. 10.1016/j.ssci.2018.07.014. - DOI
    1. Zhan H.; Liu S.; Wu Q.; Li Y.; Qi K.; Zhang X. Quantitative prediction of the impact of deep extremely thick coal seam mining on groundwater. Process Saf. Environ. Prot. 2023, 178, 511–527. 10.1016/j.psep.2023.08.061. - DOI
    1. Liu J.; Shen W.; Bai J.; Shan C.; Liu X. Experiment on separated layer rock failure technology for stress reduction of entry under coal pillar in mining conditions. Front. Ecol. Evol. 2023, 11, 126588310.3389/fevo.2023.1265883. - DOI
    1. Shu L.; Yuan L.; Li Q.; Xue W.; Zhu N.; Liu Z. Response characteristics of gas pressure under simultaneous static and dynamic load: Implication for coal and gas outburst mechanism. Int. J. Min. Sci. Technol. 2023, 33 (2), 155–171. 10.1016/j.ijmst.2022.11.005. - DOI
    1. Wu Y.; Gao F.; Chen J.; He J. Experimental Study on the Performance of Rock Bolts in Coal Burst-Prone Mines. Rock Mech. Rock Eng. 2019, 52 (10), 3959–3970. 10.1007/s00603-019-01794-9. - DOI
