. 2024 Sep 30;16(9):6196-6203.
doi: 10.21037/jtd-24-1358. Epub 2024 Sep 26.

Preoperative localization of pulmonary nodules by electromagnetic navigation bronchoscopy combined with methylene blue injection

Jin Wang  1   2 , Haihua Huang  2 , Qian Xue  2 , Travis C Geraci  3 , Zheng Ruan  2 , Haitao Ma  1
Affiliations

Preoperative localization of pulmonary nodules by electromagnetic navigation bronchoscopy combined with methylene blue injection

Jin Wang et al. J Thorac Dis. .

Abstract

Background: Electromagnetic navigation bronchoscopy (ENB) can help to accurately locate pulmonary nodules using a minimally invasive approach. This study sought to evaluate the clinical efficacy and safety of dye marking localization under the guidance of ENB followed by surgery.

Methods: A retrospective analysis was performed of 61 patients who underwent ENB localization using methylene blue dye marking before surgery at Shanghai General Hospital from October 2021 to February 2022. The clinical efficacy and safety of ENB localization and the related factors affecting the navigation time of ENB location were analyzed.

Results: ENB was performed on 170 pulmonary nodules in 61 patients with a median age of 60 [interquartile range (IQR), 18] years. The majority of patients (70.69%) had more than two pulmonary nodules. The median maximum nodule diameter was 10 (IQR, 8) mm, and 48.21% of the nodules were mixed ground-glass nodules. Median time for ENB navigation was 10.5 (IQR, 6) min. The navigation success rate was 92.96%, and the ENB location success rate was 95.89%. The rate of complications related to ENB localization was 1.64% (there was only one case of pulmonary hemorrhage). The multivariate analysis showed that the factors related to the navigation time included the node location (P=0.001) and location mode (P=0.04).

Conclusions: ENB-guided methylene blue injection is an effective and safe tool for localizing and marking pulmonary nodules, and can be used to assist the diagnosis and treatment of early lung cancer. The node location and location mode had significant effects on navigation time.

Keywords: Electromagnetic navigation bronchoscopy (ENB); localization; lung nodule; methylene blue.

PubMed Disclaimer

Conflict of interest statement

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jtd.amegroups.com/article/view/10.21037/jtd-24-1358/coif). The authors have no conflicts of interest to declare.

Figures

Figure 1
Figure 1

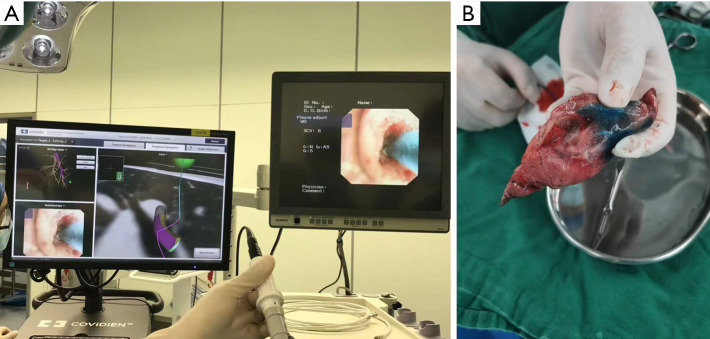

Preoperative pulmonary nodule localization under the guidance of ENB. (A) ENB localization system; (B) methylene blue marking of pulmonary nodules. ENB, electromagnetic navigation bronchoscopy.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Bray F, Laversanne M, Sung H, et al. Global cancer statistics 2022: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J Clin 2024;74:229-63. 10.3322/caac.21834 - DOI - PubMed
    1. Yang WH, Xu TQ, Zhang Y, et al. Application of Electromagnetic Navigation Bronchoscopy in the early diagnosis and treatment of lung cancer: a narrative review. Transl Cancer Res 2021;10:1583-93. 10.21037/tcr-20-3020 - DOI - PMC - PubMed
    1. Wang C, Shao J, Song L, et al. Persistent increase and improved survival of stage I lung cancer based on a large-scale real-world sample of 26,226 cases. Chin Med J (Engl) 2023;136:1937-48. 10.1097/CM9.0000000000002729 - DOI - PMC - PubMed
    1. Wang LL, He BF, Cui JH, et al. Electromagnetic navigational bronchoscopy-directed dye marking for locating pulmonary nodules. Postgrad Med J 2020;96:674-9. 10.1136/postgradmedj-2019-137083 - DOI - PubMed
    1. Qian K, Deng Y, Shen C, et al. Combination of electromagnetic navigation bronchoscopy-guided biopsy with a novel staining for peripheral pulmonary lesions. World J Surg Oncol 2019;17:158. 10.1186/s12957-019-1704-7 - DOI - PMC - PubMed
