Caries Detection and Classification in Photographs Using an Artificial Intelligence-Based Model-An External Validation Study

Abstract

Objective: This ex vivo diagnostic study aimed to externally validate a freely accessible AI-based model for caries detection, classification, localisation and segmentation using an independent image dataset. It was hypothesised that there would be no difference in diagnostic performance compared to previously published internal validation data.

Methods: For the independent dataset, 718 dental images representing different stages of carious (n = 535) and noncarious teeth (n = 183) were retrieved from the internet. All photographs were evaluated by the dental team (reference standard) and the AI-based model (test method). Diagnostic performance was statistically determined using cross-tabulations to calculate accuracy (ACC), sensitivity (SE), specificity (SP) and area under the curve (AUC).

Results: An overall ACC of 92.0% was achieved for caries detection, with an ACC of 85.5-95.6%, SE of 42.9-93.3%, SP of 82.1-99.4% and AUC of 0.702-0.909 for the classification of caries. Furthermore, 97.0% of the cases were accurately localised. Fully and partially correct segmentation was achieved in 52.9% and 44.1% of the cases, respectively.

Conclusions: The validated AI-based model showed promising diagnostic performance in detecting and classifying caries using an independent image dataset. Future studies are needed to investigate the validity, reliability and practicability of AI-based models using dental photographs from different image sources and/or patient groups.

Keywords: artificial intelligence; deep learning; dental caries; diagnosis; validation study.

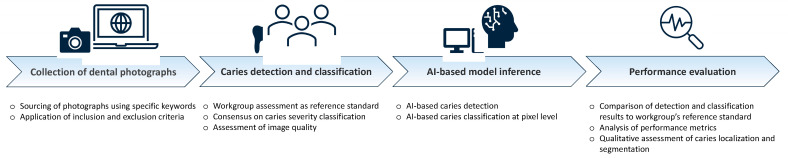

Figure 1

Workflow diagram illustrating the methodological steps.

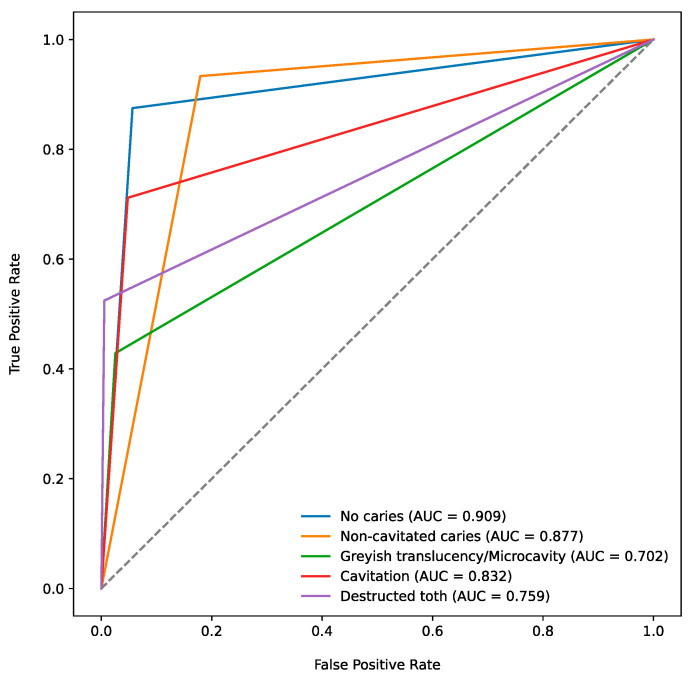

Figure 2

ROC curves and the corresponding AUCs for all caries classes.
