Comprehensive Symptom Prediction in Inpatients With Acute Psychiatric Disorders Using Wearable-Based Deep Learning Models: Development and Validation Study

Abstract

Background: Assessing the complex and multifaceted symptoms of patients with acute psychiatric disorders proves to be significantly challenging for clinicians. Moreover, the staff in acute psychiatric wards face high work intensity and risk of burnout, yet research on the introduction of digital technologies in this field remains limited. The combination of continuous and objective wearable sensor data acquired from patients with deep learning techniques holds the potential to overcome the limitations of traditional psychiatric assessments and support clinical decision-making.

Objective: This study aimed to develop and validate wearable-based deep learning models to comprehensively predict patient symptoms across various acute psychiatric wards in South Korea.

Methods: Participants diagnosed with schizophrenia and mood disorders were recruited from 4 wards across 3 hospitals and prospectively observed using wrist-worn wearable devices during their admission period. Trained raters conducted periodic clinical assessments using the Brief Psychiatric Rating Scale, Hamilton Anxiety Rating Scale, Montgomery-Asberg Depression Rating Scale, and Young Mania Rating Scale. Wearable devices collected patients' heart rate, accelerometer, and location data. Deep learning models were developed to predict psychiatric symptoms using 2 distinct approaches: single symptoms individually (Single) and multiple symptoms simultaneously via multitask learning (Multi). These models further addressed 2 problems: within-subject relative changes (Deterioration) and between-subject absolute severity (Score). Four configurations were consequently developed for each scale: Single-Deterioration, Single-Score, Multi-Deterioration, and Multi-Score. Data of participants recruited before May 1, 2024, underwent cross-validation, and the resulting fine-tuned models were then externally validated using data from the remaining participants.

Results: Of the 244 enrolled participants, 191 (78.3%; 3954 person-days) were included in the final analysis after applying the exclusion criteria. The demographic and clinical characteristics of participants, as well as the distribution of sensor data, showed considerable variations across wards and hospitals. Data of 139 participants were used for cross-validation, while data of 52 participants were used for external validation. The Single-Deterioration and Multi-Deterioration models achieved similar overall accuracy values of 0.75 in cross-validation and 0.73 in external validation. The Single-Score and Multi-Score models attained overall R² values of 0.78 and 0.83 in cross-validation and 0.66 and 0.74 in external validation, respectively, with the Multi-Score model demonstrating superior performance.

Conclusions: Deep learning models based on wearable sensor data effectively classified symptom deterioration and predicted symptom severity in participants in acute psychiatric wards. Despite lower computational costs, Multi models demonstrated equivalent or superior performance than Single models, suggesting that multitask learning is a promising approach for comprehensive symptom prediction. However, significant variations were observed across wards, which presents a key challenge for developing clinical decision support systems in acute psychiatric wards. Future studies may benefit from recurring local validation or federated learning to address generalizability issues.

Keywords: clinical decision support system; deep learning; digital phenotype; local validation; mental health facility; mental health monitoring; multitask learning; smart hospital; wearable sensor.

Figure 1

The architecture of deep learning models for predicting comprehensive symptoms in inpatients with acute psychiatric disorders. Original sequence data were adjusted to match the required length by removing data older than 4 weeks; shorter data were zero-padded to form the input layer. 1D-Conv, GRU, and fully connected layers were used sequentially. The model’s performance was compared based on various output layer configurations. 1D-Conv: 1D convolutional; GRU: gated recurrent unit.

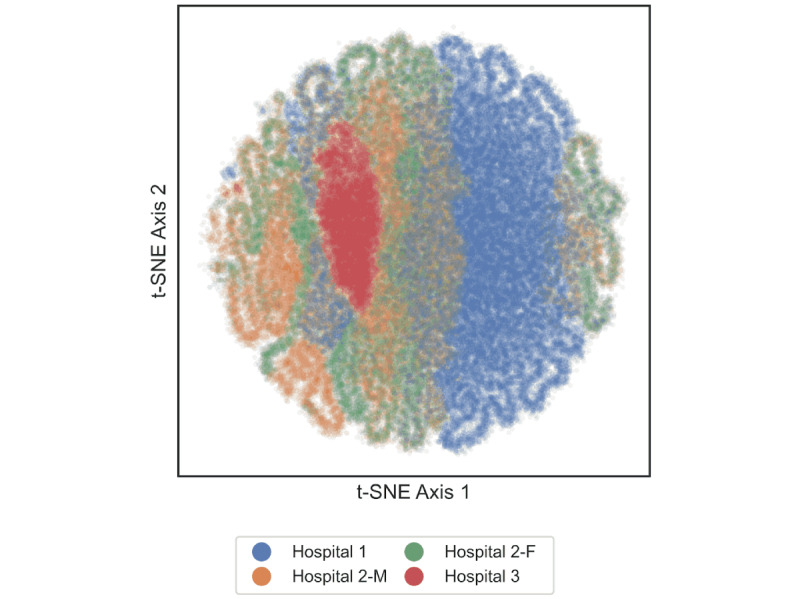

Figure 2

Visualization of the distribution of sensor data using t-SNE. Each point is color-coded to differentiate between hospital wards—hospital 1: Seoul National University Hospital; hospital 2: male (M) and female (F) wards in Yongin Mental Hospital; and hospital 3: Dongguk University Ilsan Hospital. t-SNE: t-distributed stochastic neighbor embedding.

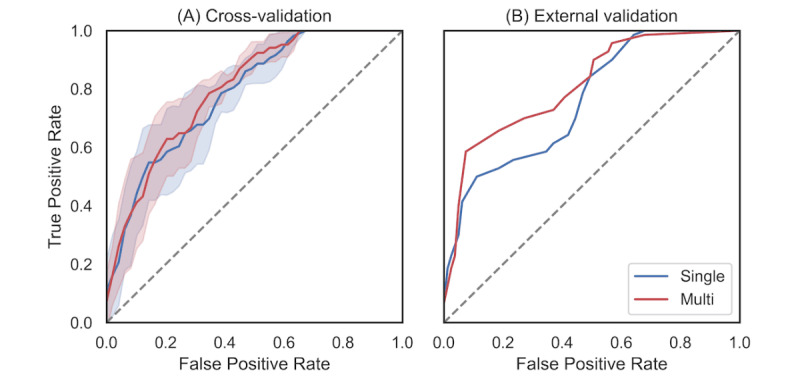

Figure 3

Receiver operating characteristic curve of the Deterioration models with respect to BPRS scores: (A) cross-validation and (B) external validation. The Deterioration models predict whether BPRS scores increased compared with the previous assessment. Colored areas in cross-validation represent the range of 1 SD. BPRS: Brief Psychiatric Rating Scale.

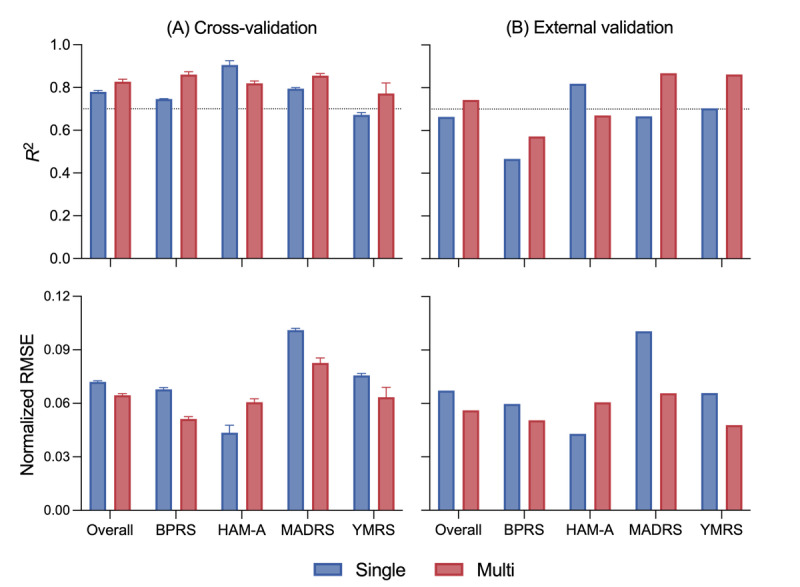

Figure 4

Performance of the Score model measured by R2 and NRMSE: (A) cross-validation and (B) external validation. The Score models predict scale scores; the error bar represents an interval of 1 SD. The dotted line indicates an R2 value of 0.7. BPRS: Brief Psychiatric Rating Scale; HAM-A: Hamilton Anxiety Rating Scale; MADRS: Montgomery-Asberg Depression Rating Scale; Multi: model predicting multiple symptoms simultaneously; NRMSE: normalized root mean squared error; Single: model predicting single symptoms individually; YMRS: Young Mania Rating Scale.

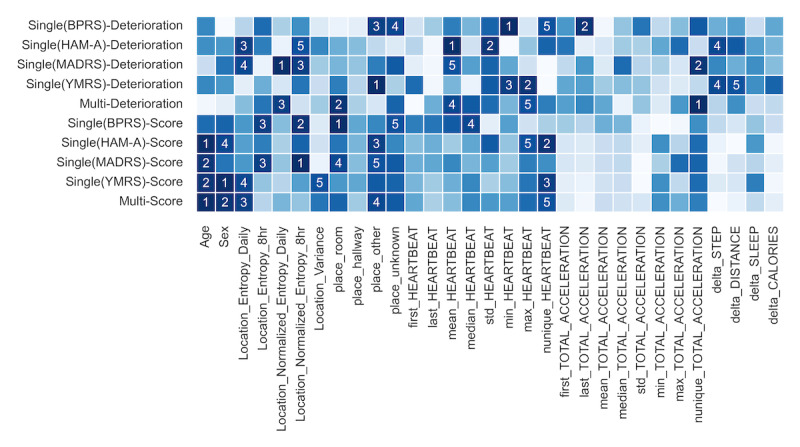

Figure 5

Permutation feature importance in external validation. The horizontal axis represents 31 individual features, and the vertical axis represents the prediction models. To ensure comparability, the importance values are converted to ranks, with the top 5 annotated. BPRS: Brief Psychiatric Rating Scale; HAM-A: Hamilton Anxiety Rating Scale; MADRS: Montgomery-Asberg Depression Rating Scale; Multi: model predicting multiple symptoms simultaneously; Single: model predicting single symptoms individually; YMRS: Young Mania Rating Scale.
