Material analysis on semi-permanent makeup needles

Abstract

The cosmetic-tattoo industry is evolving every year and the microstructures of the equipment have the great potential for semi-permanent makeup applications. Present paper explores the materials and microparticles of semi-permanent makeup tattoo needles. The surface of the five-round-shader tattoo needle used in semi-permanent makeup process was examined by scanning electron microscopy, and its elemental composition was analyzed by energy-dispersive X-ray spectroscopy. The comparison of five-round-shader needles have undergone thorough observation: original five-round-shader needle and distorted five-round-shader needle. The diameter of the sharp and rounded needle tip was measured at approximately 6.80 μm, while the deformed needle tip was approximately 16 μm thick, about 2.5 times thicker than the rounded needle tip. Many rosette-shaped lead (Pb) particles and irregular clusters adhere to the welded areas and closely adjacent needle shaft surfaces. The lead particles have a diameter ranging from 4 μm to 5 μm and exhibit a grid-like structure with a consistent thickness of plate-like shape. The distorted structure of Pb in rosette-shaped formations is shown to have originated from the grinding and polishing processes during needle manufacturing. To produce sterilized tattoo needles, high-quality tattoo needle inspection processes are necessary to remove any unhygienic substances adhering to the needle surface.

Keywords: Cosmetics; EDS; Make up; Micro-pigmentation; Microblading; SEM; Semi-permanent makeup; Tattoo needle; Tattooing.

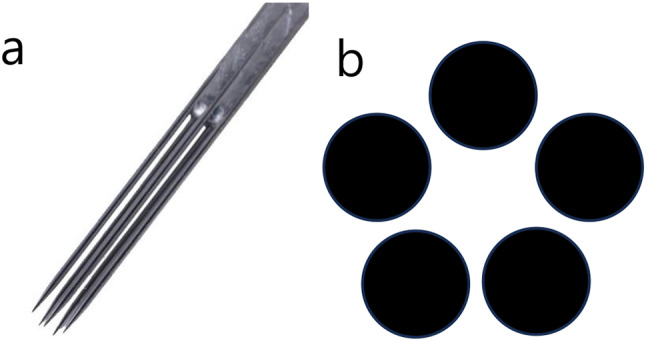

Fig. 1

Five-round-shader tattoo needle (a) and the shade with its use (b)

Fig. 2

Low magnification scanning electron micrograph of five-round-shader tattoo needle body (a) and tip(b)

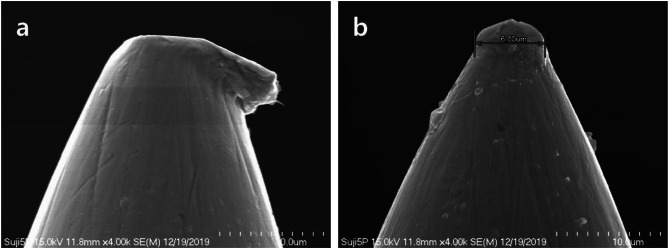

Fig. 3

Scanning electron micrograph of (a) a distorted (b) a poorly made five-round-shader tattoo needle tip

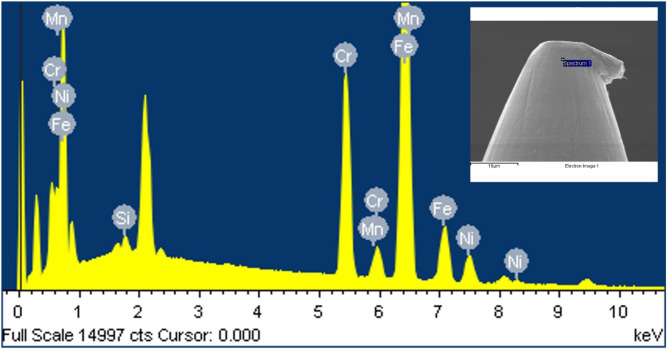

Fig. 4

Energy-dispersive X-ray spectroscopy (EDS) spectrum of the five-round-shader tattoo needle tip sample. EDS reveals Fe, Cr, Ni, Mn, Si elements. Inset: Content of the constituent elements of needle tip

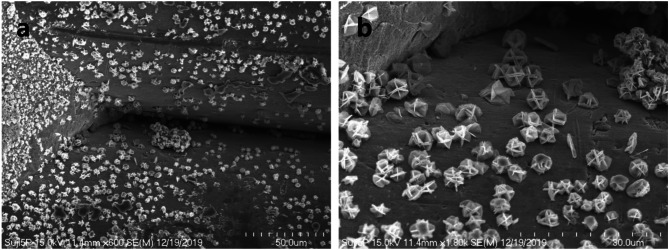

Fig. 5

Scanning electron micrograph of many flower-shaped particles of five-round-shader tattoo needle. (a) Amorphous substances seen between the flower-shaped particles. (b) Magnification scanning electron micrograph of Fig. (4a) shown as many flower-shaped particles

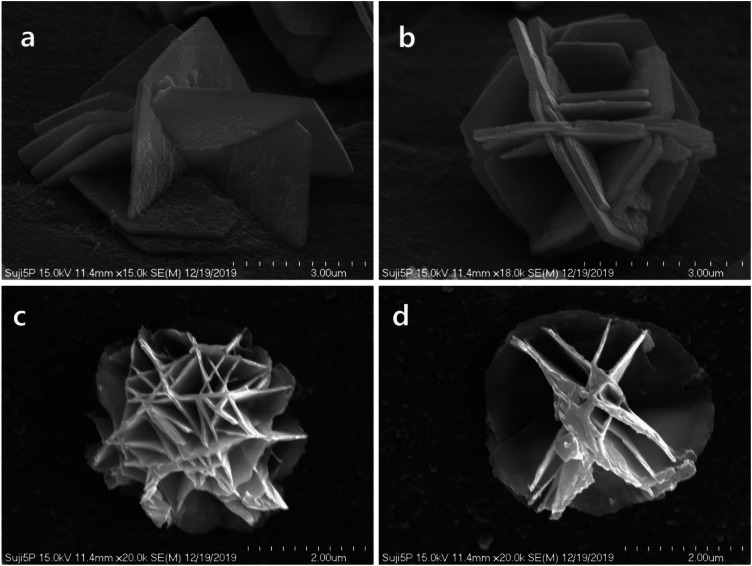

Fig. 6

High magnification scanning electron micrograph of a lattice structure in the flower shaped particle. (a)-(d): flower-shaped lead particles

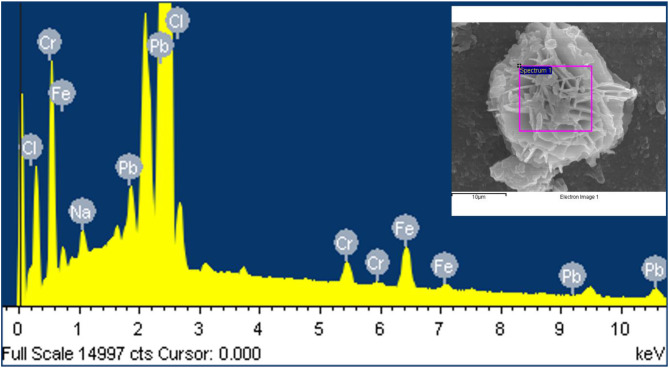

Fig. 7

EDS spectrum of the flower shaped particle of five-round-shader tattoo needle surface sample. EDS reveals Pb, Fe, Cr, Cl, Na elements. Inset: Content of the constituent elements of flower shaped particle of needle surface
