A non-canonical mechanism of GPCR activation

Abstract

The goal of designing safer, more effective drugs has led to tremendous interest in molecular mechanisms through which ligands can precisely manipulate the signaling of G-protein-coupled receptors (GPCRs), the largest class of drug targets. Decades of research have led to the widely accepted view that all agonists-ligands that trigger GPCR activation-function by causing rearrangement of the GPCR's transmembrane helices, opening an intracellular pocket for binding of transducer proteins. Here we demonstrate that certain agonists instead trigger activation of free fatty acid receptor 1 by directly rearranging an intracellular loop that interacts with transducers. We validate the predictions of our atomic-level simulations by targeted mutagenesis; specific mutations that disrupt interactions with the intracellular loop convert these agonists into inverse agonists. Further analysis suggests that allosteric ligands could regulate the signaling of many other GPCRs via a similar mechanism, offering rich possibilities for precise control of pharmaceutically important targets.

Fig. 1. Unlike typical GPCR ligands, AP8 controls the conformation of an intracellular loop but does not affect key transmembrane helices.

a The crystal structure of FFAR1 (PDB 5TZY) shows agonist AP8 (cyan) bound to a membrane-facing pocket near intracellular loop 2 (ICL2) and transmembrane helices 3, 4, and 5 (TM3, TM4, and TM5). Other FFAR1 agonists, such as MK-8666, bind in a more typical pocket (highlighted in red) within the extracellular region of the receptor. b, c AP8 does not significantly affect the conformation of key TM helices in molecular dynamics simulations. The conformation of TM5 was measured by its vertical shift relative to TM4 (see Methods), which differs by 3 Å between the AP8-bound and AP8-free crystal structures but converges to the same conformation in simulations (P = 0.11, two-sided Mann-Whitney U test, N = 10 independent simulations). The intracellular conformation of TM helices was measured by distances between Cɑ atoms (P = 0.10 TM3-TM6, residue 105 Cɑ to 222 Cɑ, P = 0.85 TM3-TM5, 104 Cɑ to 208 Cɑ, two-sided MWU test, N = 10 independent simulations). Data presented as mean with 68% confidence interval (CI). Blue bars are simulations started from AP8-bound crystal structure and orange bars are simulations started from AP8-free crystal structure. d AP8 has a significant effect on the orientation of the ICL2 helix in simulation as measured by the rotation about the helical axis (see Methods) (P = 0.0004, two-sided MWU test, N = 10 independent simulations). The PR state is the “positively rotated” state of the ICL2 helix observed in the AP8-bound crystal structure. AP8 does not have a significant effect on how frequently ICL2 adopts a helical conformation (P = 0.22, two-sided MWU test, N = 10 independent simulations). The conformation of ICL2, both angle and helicity, was quantified over simulations with and without AP8 bound, starting from the AP8-bound crystal structure. Data presented as mean with 68% CI. e Diagram showing the proposed mechanism for AP8’s agonism in comparison to a canonical GPCR agonist (iperoxo at M1). AP8 directly alters the receptor’s intracellular surface without long-range rearrangements of transmembrane helices.

Fig. 2. Ligand directly affects the intracellular receptor surface by rotating intracellular loop 2.

a Simulations of the receptor with AP8 bound (blue) favor one stable ICL2 conformation (PR state) while simulations without AP8 (orange) favor a distinct negatively rotated ICL2 conformation (NR state). Both simulations were started from the same structure. Representative simulation snapshots are shown at indicated time points overlaid on the AP8-bound crystal structure (light grey). Simulation trajectories show the ICL2 angle as measured by the rotation of L112 and Y114 around the ICL2 helix axis (see Methods). The dashed horizontal line at 0 degrees is the distance in the starting structure. b AP8 alters a network of polar interactions; the frequency of water-mediated hydrogen bonds between key ICL2 residues was quantified in the presence and absence of AP8. Data presented as mean with 68% CI (N = 10 independent simulations for each condition). Only simulation frames where ICL2 remained folded were used. c Simulation frames show representative hydrogen bonds (yellow dashes) formed with and without AP8 bound. With AP8 bound, a stable water molecule forms a hydrogen bond network bridging AP8 and the ICL2 backbone. In the absence of AP8, the water molecule reorients to form a new stable network of hydrogen bonds, necessitating a rotation of ICL2.

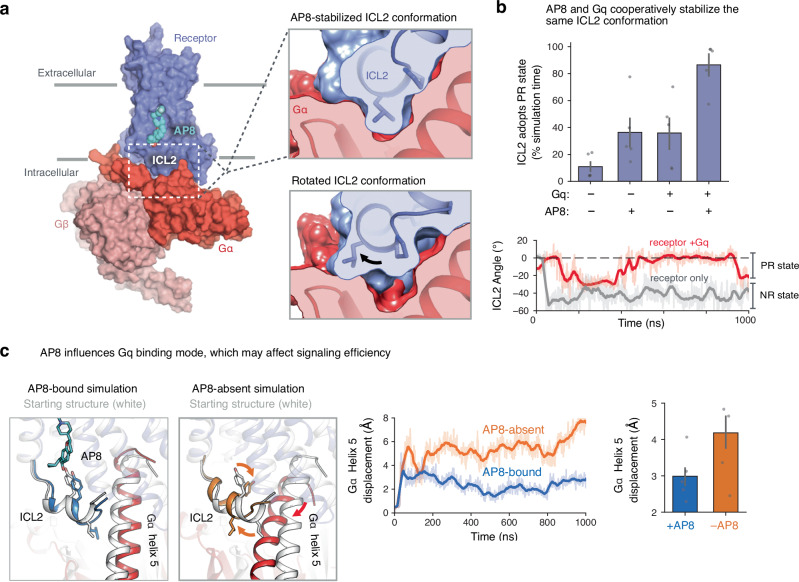

Fig. 3. ICL2 helix orientation affects G protein binding.

a Model of active FFAR1 with bound AP8 and heterotrimeric Gq constructed from homology modeling and alignment with other complexes (see Methods). Zoomed image shows that ICL2 in the AP8-stabilized conformation (PR state) forms a tight interface with Gqα (red). In the lower image, ICL2 modeled in the NR state has poor shape complementarity with the Gq surface. b AP8 and Gq both independently stabilize the PR state of ICL2, and do so to an even greater degree together, indicating a cooperative effect. Data presented as mean with 68% CI (N = 5 independent simulations for each condition). The simulation trace below shows ICL2 angle vs. time for the receptor-only condition (grey) and receptor-Gq condition (red). When Gq is bound to the receptor, the ICL2 PR state is stabilized relative to the receptor alone. The dashed horizontal line at 0 degrees is the distance in the AP8-bound crystal structure. c ICL2 conformation is also coupled to the orientation of Gq relative to the receptor, in particular Gα helix 5. Representative simulation frames (left) and traces (middle) of the FFAR1-Gq model are shown with and without AP8 bound. In images, the starting structure is shown in grey, and the simulation frame in color. The displacement of the Gα helix 5 was calculated by aligning simulation frames on the receptor and calculating the root mean square displacement (RMSD) of helix 5 (terminal 10 residues) relative to the starting structure. Bars (right) show mean displacement with 68% CI (N = 5 independent simulations for each condition).

Fig. 4. Mutagenesis experiments validate computationally derived activation mechanism.

At the mutated G3.49E receptor, AP8 acts as an inverse agonist. FFAR1 activity was monitored in IP1 accumulation assays in HEK293 cells expressing WT or G3.49E mutant receptors treated with a AP8 or b MK-8666. Data is plotted as the % of WT receptor basal activity (cells treated with 1% DMSO), where data points are mean ± S.E.M. from N = 3 biologically independent experiments and n = 2 technical replicates. Dose-response curves were fit to a standard 4-parameter non-linear regression model. Images at right show simulation frames in color and starting structure as a black outline; AP8 is displaced from its WT binding pose by G3.49E, likely due to the repulsion of the two nearby carboxylates. c In simulations, AP8 destabilizes the PR ICL2 state at the G3.49E receptor, the opposite of its behavior at the WT receptor. Data presented as mean with 68% CI (P = 0.031 WT –AP8 vs. +AP8, P = 0.027 WT –AP8 vs. G3.49E –AP8, two-sided MWU test, from left N = 5, 5, 10, 10 independent simulations for each condition). d Basal receptor activity in the IP1 accumulation assay, normalized by receptor surface expression, is plotted at right for different mutants at the 3.49 position. Only G3.49E leads to an increase in basal receptor activity relative to WT. At left, a snapshot of the simulation of the G3.49E receptor in complex with Gq shows the glutamate sidechain can mimic the interactions of the AP8 carboxylate. Data are expressed as the mean ± S.E.M. from a single fit to grouped data from N biologically independent experiments (from left, N = 3, 3, 2, 3, 2) and n = 2 technical replicates.

Fig. 5. Druggable allosteric pockets exist at the same membrane-facing site in diverse GPCRs.

a Curated structures from the Protein Data Bank (PDB), with non-protein molecules bound to the ICL2 site. Receptors are shown in purple with ligands and other molecules in orange sticks. b Using Schrodinger’s SiteMap software, we scored the druggability of ICL2 allosteric sites from 29 class A GPCRs, selected for diversity and a well-resolved ICL2 region. Representative static structures from the PDB were used. Druggable classification is determined from previously reported literature benchmarks. c Selected frames from simulations of a range of different GPCRs show comparable allosteric pockets to the AP8 binding pocket. All receptors are shown from the same view angle with the putative pockets highlighted by dashed lines. Below, selected simulation frames show changes in the ICL2 helix angle and orientation upon formation of receptor-G protein complex, suggesting functional relevance. Purple structures were selected from simulations of receptor-G protein complexes, red structures were selected from simulations of receptors only.
