. 2024 Nov 20;24(1):364.
doi: 10.1186/s12893-024-02654-2.

Modified screw-rod fixation for management of posterior pelvic ring fractures: a retrospective study

Junqi Huang #  1 , Jiajia Cheng #  1 , Bo Shi  1 , Heng Yang  1 , Tao Wang  1 , Dingwei Zhang  1 , Nan Ye  1 , Shitian Tang  2
Affiliations

Modified screw-rod fixation for management of posterior pelvic ring fractures: a retrospective study

Junqi Huang et al. BMC Surg. .

Abstract

Background: Pelvic fractures are often associated with life-threatening damage and mechanical instability. Surgical therapy is a prior choice. To minimize surgical invasion and risk, bilateral screws combined with curved rod were applied to stabilize posterior pelvic ring. This study was aim to explore the clinical effect of this procedure.

Methods: From January 2018 to January 2022, 27 patients with posterior pelvic fracture were included retrospectively. There were 12 males and 15 females with an average age of 56.3 ± 14.2 years. The prognosis of pelvis was evaluated by Matta and Majeed scores. Relevant clinical evaluation indications include the time of fracture healing, limb function and complications.

Results: The average follow-up time was 14.2 ± 5.4 month. Matta scoring standard: excellent in 18 cases, good in 7 cases, the good rate was 92.6%. The average healing time was 8.4 months. The standard of Majeed score in 6 months after operation: excellent in 14 cases, good in 10 cases, the good rate was 88.8%. At the last follow-up, the functional recovery of the affected limb was satisfactory. No deep infection occurred after operation. The neurological symptoms of patients with caudal sacral nerve injury were recovered 6 months after operation.

Conclusion: The results indicated that screw-rod system is a safe technique. Minimally invasive technology reduced frequency of fluoroscopy. It provides a simple and safety method for posterior pelvic fracture.

Keywords: Pelvic fracture; Screw-rod system; Unstable pelvic ring.

PubMed Disclaimer

Conflict of interest statement

Declarations Ethics approval and consent to participate Informed consent was obtained from all subjects and/or their legal guardian(s). We promised that data was applied for effective analysis alone, keeping individual information confidential. Study procedures and materials were approved by Mianyang Central Hospital Ethics Committee (S20240357-01). Consent for publication Not applicable. Competing interests The authors declare no competing interests.

Figures

Fig. 1
Fig. 1

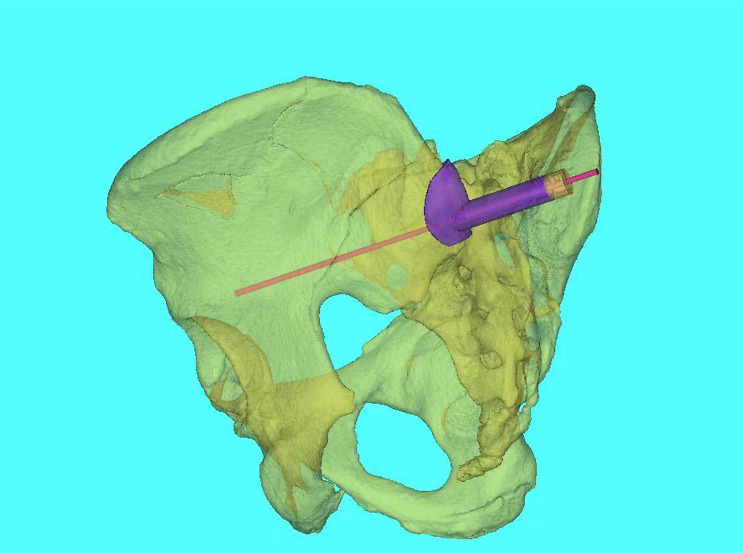

The 3D visualization of bone corridor (red line)
Fig. 2
Fig. 2
Posterior surgical incisions for screw-rod fixation (a). Postoperative plain X-ray showed anteroposterior appearance (b)
Fig. 3
Fig. 3
The lumbar screws were added to restore vertical stability
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Hiyama A, Ukai T, Ogasawara S, et al. Minimally invasive 360° Fusion using a combination of INFIX and minimally invasive spinopelvic fixation by Intraoperative Computed Tomography Navigation for Unstable Pelvic Ring fracture: a technical note. Orthop Surg. 2023;15(5):1405–13. - PMC - PubMed
    1. Markus A, Küper R, Bachmann GötzF, Wenig, et al. Associated abdominal injuries do not influence quality of care in pelvic fractures—a multicenter cohort study from the German Pelvic Registry. World J Emerg Surg. 2020;15:8. - PMC - PubMed
    1. Klingebiel FK, Hasegawa M, Parry J, et al. Standard practice in the treatment of unstable pelvic ring injuries: an international survey. Int Orthop. 2023;47(9):2301–18. - PMC - PubMed
    1. Azhar S, Syafiq S, Arif NK, et al. Navigated percutaneous sacroiliac screw fixation in unstable pelvic Ring fracture. Cureus. 2022;14(10):e29897. - PMC - PubMed
    1. Zheng YB, Zhao X, Zheng Q, et al. Safe surgical corridor for iliosacral screw placement in unstable pelvic fractures: a computed-tomography-guided validation study of the triangulation method. Patient Saf Surg. 2023;17(1):28. - PMC - PubMed
