. 2025 Mar 3;26(5):e202400832.
doi: 10.1002/cphc.202400832. Epub 2025 Jan 28.

Electrochemical and Thermal Evolution of P2 Na2/3MnO2

B D K K Thilakarathna  1 , Uttam Mittal  1 , Jian Peng  1 , Daniel Brocklebank  1 , Helen E A Brand  2 , Neeraj Sharma  1
Affiliations

Electrochemical and Thermal Evolution of P2 Na2/3MnO2

B D K K Thilakarathna et al. Chemphyschem. .

Abstract

P2 Na2/3MnO2 can be used as a cathode material in sodium-ion batteries. Here, the electrochemical-temperature-dependent evolution of P2 Na2/3MnO2 is investigated using X-ray powder diffraction. P2 Na2/3MnO2 powder under a N2 atmosphere shows evidence of the formation of a monoclinic C2/m phase, from about 450 °C. The P2 Na2/3MnO2 electrode sealed in a capillary undergoes a sequence of phase transitions from the as-prepared hexagonal P63/mmc to a secondary hexagonal P63/mmc phase followed by a transition to Mn3O4 and subsequently MnO. NaF also appears parallel to the formation of the secondary hexagonal phase. These transitions suggest a local reducing environment as the Mn oxidation state evolves from 3+/4+ to 2+. The samples at various states of charge show similar thermal evolution with the exception of the discharged (Na-inserted) state which features a slightly more complex evolution. Understanding the structure and thermal evolution at various states of charge and under various conditions provides insight into the stability of these potential cathode materials.

Keywords: Cathode; Sodium-ion batteries; Structural evolution; Synchrotron X-ray powder diffraction.

PubMed Disclaimer

Conflict of interest statement

There are no conflicts of interest to declare.

Figures

Figure 1
Figure 1

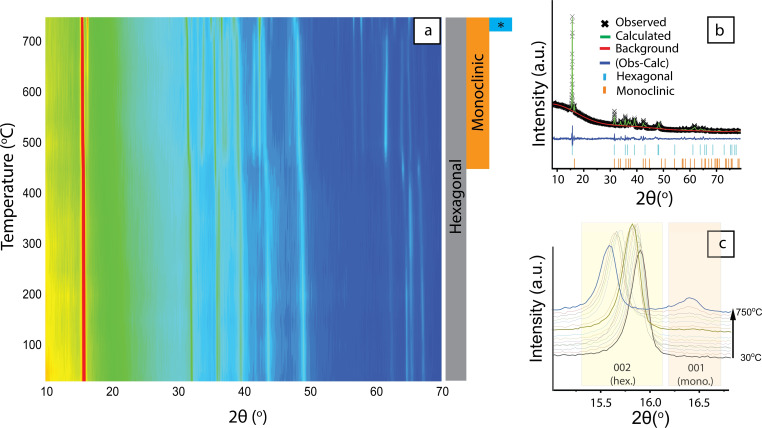

(a) Contour plot of the diffraction data (λ=1.5418 Å), (b) Rietveld‐refined fit at 450°C and (c) zoom of the stacking axes (002) in P63 /mmc and (100) in C2/m. The * refers to the Mn3O4 phase.
Figure 2
Figure 2
Lattice parameters of the hexagonal P63/mmc phase, volume and weight fractions of both hexagonal and monoclinic phases as a function of temperature.
Figure 3
Figure 3
(a) Thermal evolution of NaxMnO2 at various states of charge. Weight fractions are derived from Rietveld analysis using a variety of structural models. (b) The contour plots show the evolution of a selected 2θ range (λ =0.68729(1) Å).
Figure 4
Figure 4
Lattice parameters and volume evolution of the two hexagonal P63/mmc phases found between 30–500 °C.
Figure 5
Figure 5
Lattice parameters and volume evolution of the orthorhombic Cmcm phase(s), labelled FD_1 and FD_2 found between 30–400 °C in sample FD.
Figure 6
Figure 6
The (a) volume evolution of the Mn3O4 and MnO phases and (b‐c) the volume and lattice parameter evolution of Mn3O4.
See this image and copyright information in PMC

References

    1. Croguennec L., Palacin M. R., Chem.l Soc. 2015, 3140–3156, 10.1021/ja507828x. - DOI - PubMed
    1. Liu C., Neale Z. G., Cao G., Materials Today Elsevier, B. V., 1 March: 2016. 109–123, 10.1016/j.mattod.2015.10.009. - DOI
    1. Clément R. J., Bruce P. G., Grey C. P., J Electrochem Soc 2015, 162(14), A2589–A2604.
    1. Yabuuchi N., Kubota K., Dahbi M., Komaba S., Chem. Rev. 2014, 114(23), 11636–11682. - PubMed
    1. Billaud J., Singh G., Armstrong A. R., Gonzalo E., Roddatis V., Armand M., Rojo T., Bruce P. G., Energy Environ. Sci. 2014, 7, 1387–1391.
