Spinal cord evaluation in multiple sclerosis: clinical and radiological associations, present and future

Abstract

Spinal cord disease is important in most people with multiple sclerosis, but assessment remains less emphasized in patient care, basic and clinical research and therapeutic trials. The North American Imaging in Multiple Sclerosis Spinal Cord Interest Group was formed to determine and present the contemporary landscape of multiple sclerosis spinal cord evaluation, further existing and advanced spinal cord imaging techniques, and foster collaborative work. Important themes arose: (i) multiple sclerosis spinal cord lesions (differential diagnosis, association with clinical course); (ii) spinal cord radiological-pathological associations; (iii) 'critical' spinal cord lesions; (iv) multiple sclerosis topographical model; (v) spinal cord atrophy; and (vi) automated and special imaging techniques. Distinguishing multiple sclerosis from other myelopathic aetiology is increasingly refined by imaging and serological studies. Post-mortem spinal cord findings and MRI pathological correlative studies demonstrate MRI's high sensitivity in detecting microstructural demyelination and axonal loss. Spinal leptomeninges include immune inflammatory infiltrates, some in B-cell lymphoid-like structures. 'Critical' demyelinating lesions along spinal cord corticospinal tracts are anatomically consistent with and may be disproportionately associated with motor progression. Multiple sclerosis topographical model implicates the spinal cord as an area where threshold impairment associates with multiple sclerosis disability. Progressive spinal cord atrophy and 'silent' multiple sclerosis progression may be emerging as an important multiple sclerosis prognostic biomarker. Manual atrophy assessment is complicated by rater bias, while automation (e.g. Spinal Cord Toolbox), and artificial intelligence may reduce this. Collaborative research by the North American Imaging in Multiple Sclerosis and similar groups with experts combining distinct strengths is key to advancing assessment and treatment of people with multiple sclerosis spinal cord disease.

Keywords: atrophy; magnetic resonance imaging; multiple sclerosis; pathology; spinal cord.

Graphical Abstract

Figure 1

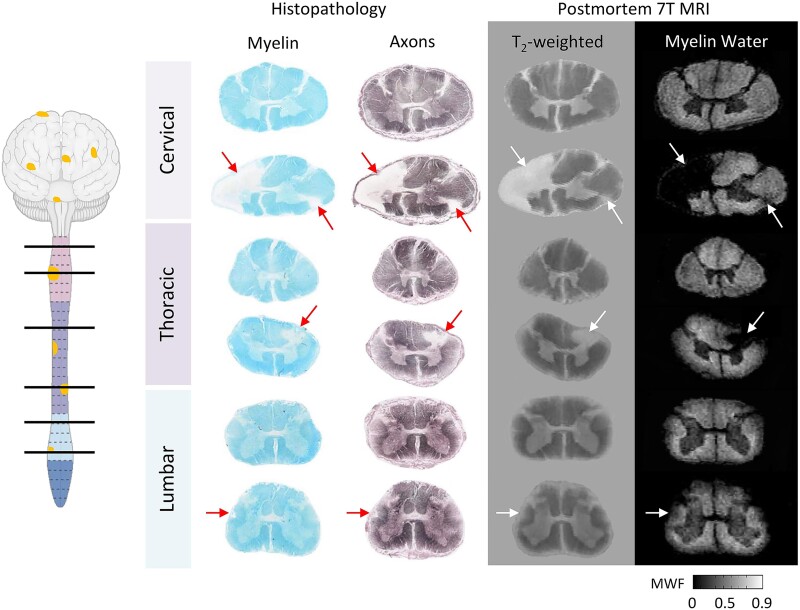

Pathology and MRI of secondary progressive multiple sclerosis. Histological staining and post-mortem 7 T MRI of a secondary progressive multiple sclerosis patient (female, 78 years old, 25-year disease duration). Focal lesions (arrows) are visible on cervical, thoracic and lumbar sections, highlighted by myelin (Luxol fast blue) and axon (Bielschowsky) staining, as well as on ex vivo 7 T T2-weighted and myelin water fraction MRI scans. Modified from Laule et al. with permission. MWF, myelin water fraction.

Figure 2

MRI differential diagnosis of myelitis in multiple sclerosis. (A) Myelin oligodendrocyte glycoprotein antibody-associated disease. (B) Aquaporin 4-IgG positive neuromyelitis optica spectrum disorder (AQP4+ neuromyelitis optica spectrum disorder). (C) Spinal cord sarcoidosis. (D) Cervical spondylotic myelopathy. Thoracic spine MRI reveals a sagittal T2 lesion in the lower thoracic spine involving the conus and extending <3 vertebral segments (Ai) with axial T2 images revealing a central T2 lesion (Aii) in a patient with myelin oligodendrocyte glycoprotein antibody-associated disease. Cervical spine sagittal MRI reveals a longitudinally extensive T2 lesion extending >3 vertebral segments (Aiii) with T2 hyperintensity restricted to the central GM on axial T2 images forming a H sign (Aiv, arrow) in a patient with myelin oligodendrocyte glycoprotein antibody-associated disease. Cervical spine sagittal MRI reveals a longitudinally extensive T2 lesion extending >3 vertebral segments (Bi) with central T2 lesion on axial images (Bii) with an elongated ring of enhancement on T1-weighted images post-gadolinium (Biii) with an open ring on axial T1-weighted images post-gadolinium (Biv) in a patient with AQP4+ neuromyelitis optica spectrum disorder. Cervical spine sagittal MRI reveals a longitudinally extensive T2 lesion extending >3 vertebral segments (Ci) with central T2 lesion on axial images (Cii) accompanied by linear dorsal subpial enhancement on sagittal and axial T1-weighted images post-gadolinium (Ciii, Civ) in spinal cord sarcoidosis. Cervical spine sagittal MRI reveals a T2 lesion extending <3 vertebral segments (Di) with axial T2 images showing some T2 hyperintensity (Dii) and evidence of a transverse band or ‘pancake-like’ enhancement with the width greater than the height (Diii) circumferentially involving the WM (Div).

Figure 3

Critical demyelinating lesions of the spinal cord. ‘Critical’ demyelinating lesions of the spinal cord are anatomically associated with progressive motor impairment in people with multiple sclerosis; they are typically laterally based in the corticospinal tract and have focal spinal cord atrophy. MRI cervical spine sagittal (A) and axial (B) images showing ‘critical’ demyelinating lesion with T2 signal abnormality in the right lateral-dorsal cord with focal atrophy (black arrows and arrowhead) in a 53-year-old man with a 5-year history of progressive right upper motor neuron face-sparing hemiparesis. CSF showed four unique oligoclonal bands. MRI cervical spine sagittal (C) and axial (D) images showing ‘critical’ demyelinating lesion with T2 signal abnormality in the left lateral cord (arrows) with focal atrophy (open arrowhead) in a 59-year-old woman with a prior history of relapsing-remitting multiple sclerosis and an 8-year history of progressive left face-sparing upper motor neuron hemiparesis. Additional demyelinating lesion was seen in the lower thoracic spine with no volume loss (not shown). MRI thoracic spine sagittal (E) and axial (F) images showing ‘critical’ demyelinating lesion with T2 signal abnormality right hemispinal cord (arrows and open arrowhead) in a 58-year-old man with multiple sclerosis and progressive right lower extremity monoparesis.

Figure 4
