Histopathology-based Protein Multiplex Generation using Deep Learning

Abstract

Multiplexed protein imaging offers valuable insights into interactions between tumors and their surrounding tumor microenvironment (TME), but its widespread use is limited by cost, time, and tissue availability. We present HistoPlexer, a deep learning framework that generates spatially resolved protein multiplexes directly from standard hematoxylin and eosin (H&E) histopathology images. HistoPlexer jointly predicts multiple tumor and immune markers using a conditional generative adversarial architecture with custom loss functions designed to ensure pixel- and embedding-level similarity while mitigating slice-to-slice variations. A comprehensive evaluation on metastatic melanoma samples demonstrates that HistoPlexer-generated protein maps closely resemble real maps, as validated by expert assessment. They preserve crucial biological relationships by capturing spatial co-localization patterns among proteins. The spatial distribution of immune infiltration from HistoPlexer-generated protein multiplex enables stratification of tumors into immune subtypes. In an independent cohort, integration of HistoPlexer-derived features into predictive models enhances performance in survival prediction and immune subtype classification compared to models using H&E features alone. To assess broader applicability, we benchmarked HistoPlexer on publicly available pixel-aligned datasets from different cancer types. In all settings, HistoPlexer consistently outperformed baseline methods, demonstrating robustness across diverse tissue types and imaging conditions. By enabling whole-slide protein multiplex generation from routine H&E images, HistoPlexer offers a cost- and time-efficient approach to tumor microenvironment characterization with strong potential to advance precision oncology.

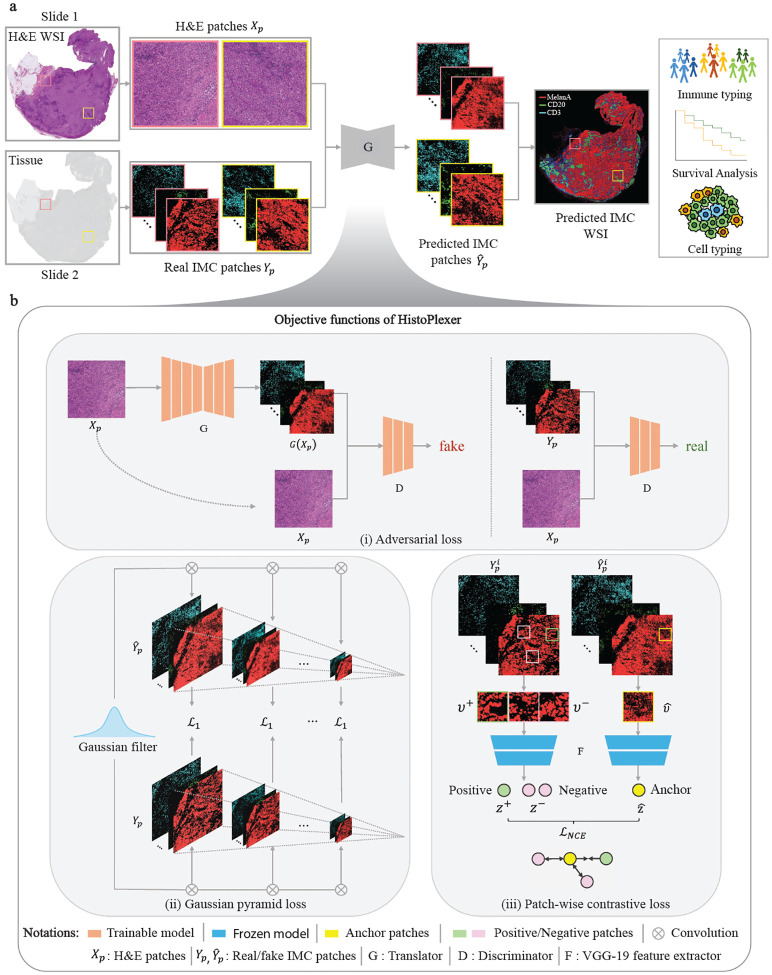

Fig. 1:. Overview of HistoPlexer architecture.

a The HistoPlexer consists of a translator G that takes H&E and IMC images as input and predicts protein multiplexes from morphology information encoded in the H&E images, ultimately generating protein multiplex on the WSI level from H&E input. b The objective functions of HistoPlexer contain the GAN adversarial loss, gaussian pyramid loss with average L1 score across scales and patch-wise contrastive loss with anchor from generated IMC and positive and negative from GT IMC.

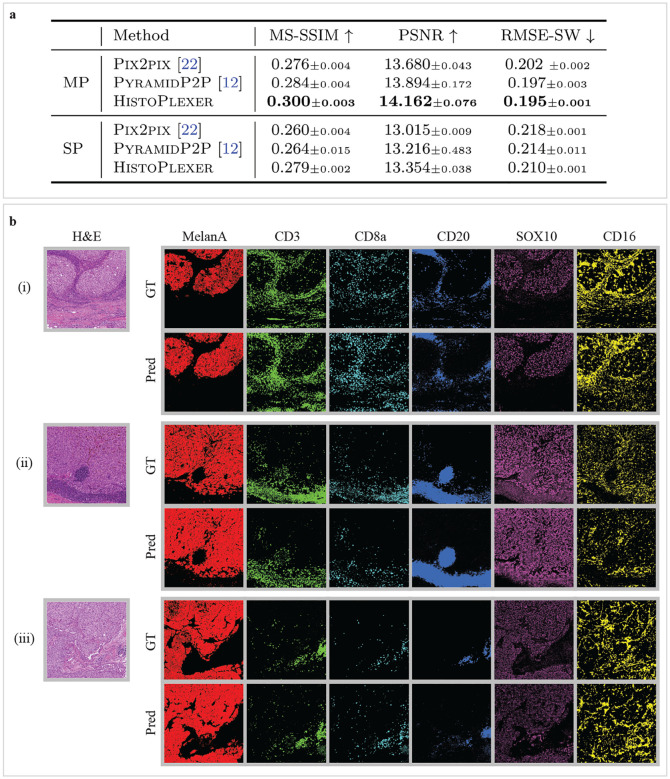

Fig. 2:. RoI-level assessment of HistoPlexer.

a Quantitative assessment and comparison against benchmarks using MS-SSIM, PSNR and RMSE-SW for multiplex (MP) and singleplex (SP) settings. ↑ arrow indicates higher values are better. ↓ arrow indicates higher values are better. Best results are highlighted in bold. b Qualitative assessment of HistoPlexer for three RoIs. H&E as input to HistoPlexer (first column) and expression profiles of individual markers: MelanA, CD3, CD8a, CD20, SOX10 and CD16 (from second to last column). Top row: ground-truth (GT) expression profiles from IMC modality; bottom row: predicted (Pred) expression profiles from HistoPlexer.

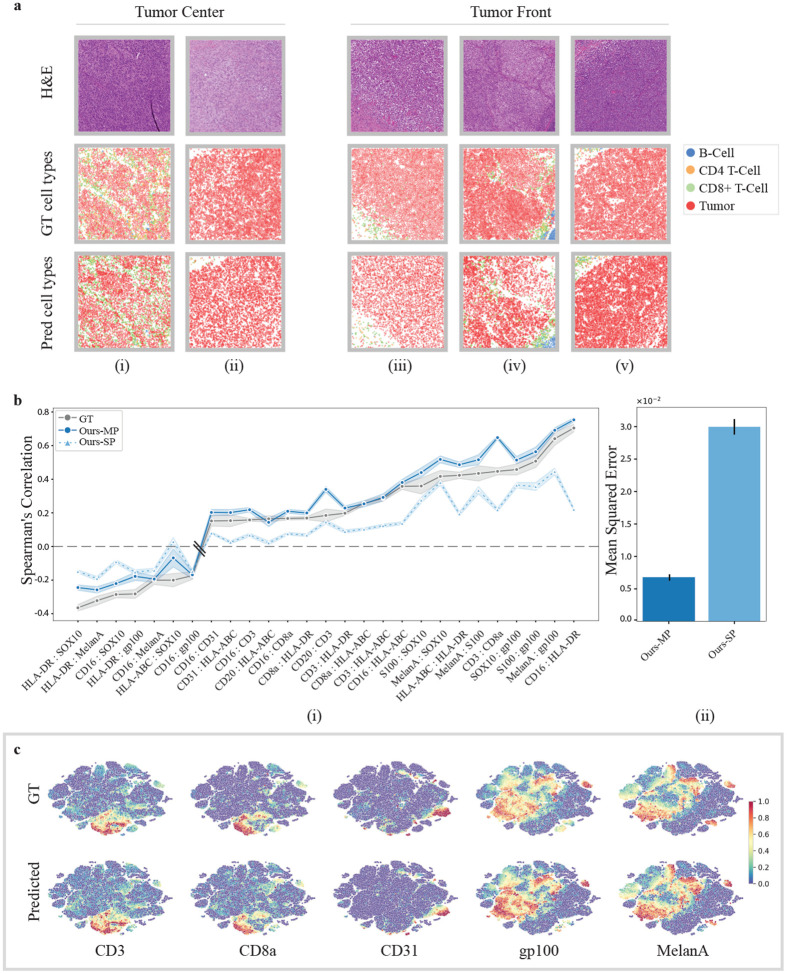

Fig. 3:

a Cell-typing results: H&E (first row), GT and predicted cell types (middle and bottom row) in RoIs grouped by their location within the tissue: “Tumor Center” and “Tumor Front”. b(i) Spearman’s correlation coefficients between protein pairs, comparing the ground truth (GT) with both singleplexed (SP) and multiplexed (MP) predictions of the HistoPlexer. The pairs on the X-axis are ordered by increasing Spearman’s correlation in the GT. b(ii) Mean squared error between the GT and predicted Spearman’s correlation coefficients, comparing the SP and MP predictions of the HistoPlexer. c Joint t-SNE visualization of protein co-localization patterns for selected markers: CD3, CD8a, CD31, gp100 and MelanA. The color represents protein expression.

Fig. 4:. Qualitative WSI-level assessment of HistoPlexer.

H&E (first column) and expression profiles of individual markers: CD3, SOX10, CD8a and HLA-DR (from second to last column). Top row: GT expression profiles from Ultivue images; bottom row: predicted (pred) expression profiles on WSI level both samples in (i) and (ii).

Fig. 5:. Immune phenotyping using HistoPlexer.

a Four samples from TuPro metastatic melanoma cohort with two immune hot cases in the top row and two immune cold samples in the bottom row. For each sample, H&E image on left along with overlay of predicted tumor and CD8+ T-cells within tumor center region using HistoPlexer model on right. b(i) Box plot of intratumoral (iCD8) and stromal (sCD8) CD8+ T-cell densities in tumor center compartment, stratified by immune desert, excluded and inflamed classes. b(ii)Box plot of intratumoral (iCD8) and stromal (sCD8) CD8+ T-cell densities in tumor center compartment, stratified by immune hot and cold classes.

Fig. 6:. Generalization to an independent patient cohort.

a Two examples (immune-high and -low) from the TCGA-SKCM cohort, showing H&E images (first column), predicted protein multiplexes (second row) as well as expression profiles of MelanA, CD3 and CD20 markers (last three colums). b Model architecture for multimodal survival and immune subtype prediction. c(i) Survival prediction results, displaying time-dependent c-index scores (left) and Kaplan-Meier survival curves for the multimodal setting, with separation of low- and high-risk groups (right).; c(ii) Immune subtype prediction results, showing the weighted F1 score (left) and confusion matrix (right) for classification into low, intermediate, and high immune subtypes.
