Shaping the environment - Drosophila suzukii larvae construct their own niche

Abstract

In holometabolous insects, the choice of oviposition substrate by the adult needs to be coordinated with the developmental needs of the larva. Drosophila suzukii female flies possess an enlarged serrated ovipositor, which has enabled them to conquer the ripening fruit as an oviposition niche. They insert their eggs through the skin of priced small fruits. However, this specialization seems to clash with the nutritional needs for larval development since ripening fruits have a low protein content and are high in sugars. In this work, we studied how D. suzukii larvae develop in and interact with the blueberry. We show that despite its hardness and composition, D. suzukii's first instar larvae are able to use the ripening fruit by engaging in niche construction. They display unique physical and behavioral characteristics that allow them to process the hard-ripening fruit and provoke an improvement in its composition that better suits larval nutritional needs.

Keywords: Biological sciences; Entomology; Evolutionary biology.

Graphical abstract

Figure 1

Developmental progression of D. suzukii larvae in blueberries and their physical adaptations (A) The procedure developed to study larvae in blueberries. Top, left: Incision into the skin of a blueberry to expose the flesh and place five first instar larvae inside. Bottom, left: Schematics of the procedure. 1. An incision was made to generate and open a flap. 2. Larvae were placed on the exposed fruit tissue. 3. The skin flap was closed. Right: Blueberries in tissue sample bags hanging inside an incubator and the environmental parameters used. (B) Average proportion of five initially placed D. suzukii (top) or D. melanogaster (bottom), larvae in each developmental stage, found in each fruit at one-day intervals after introduction into fruits (days after infestation). n indicates number of fruits for each treatment. Bars show the means, error bars the SEM. Survival of Drosophila larvae of the two species was compared using a binomial generalized linear model (glm), F = 53.059, p < 0.001 (∗∗∗). (C) Description of D. suzukii and D. melanogaster first instar larvae mouth hooks. Top panels: Lateral (left column) and bottom view (mid column) of the mouth hooks of D. melanogaster (top row) and D. suzukii (bottom row). On the right, enlarged isolated tracings of the structures are shown for a clearer comparison (Scale bar: 20 μm). Bottom graphs: Bar graphs show the mean length of the first tooth from the top of the mouth hook (H1), the length from the top of the mouth hook hinge to the bump posterior to the first tooth (H2), length of the H piece (P1), and vertical length from the top of the dorsal posterior process to the joining of the bottom posterior and anterior processes, passing through the end of the H piece (P2). Bars indicate the mean and error bars the SEM. n indicates the number of mouth hooks analyzed. The size of mouth hook parameters between the two Drosophila species was compared with ANOVAs, H1: F = 427.80, H2: F = 1938.00, P1: F = 165.00, P2: F = 32.09, p for all comparison <0.001 (∗∗∗). (D and E) Average proportion of the initially placed larvae of D. suzukii or D. melanogaster in each developmental stage, found in each fruit at one-day intervals after introduction into fruits (days after infestation), (D) D. melanogaster in softened blueberries and (E) Co-infestation experiments. Fruits and larvae were scored independently and discarded at each time point. Bars represent means, error bars SEMs. n indicates the number of larvae containing fruits. (F) Average (mean) cumulative proportion of the initially placed larvae of D. melanogaster that pupate at one-day intervals after introduction into vials with infested blueberry tissue from 4 days D. suzukii infested blueberries. The same vials were scored each day for the presence of pupae. Error bars: SEM. n represents the number of vials scored for pupae.

Figure 2

D. suzukii larval activity modifies the composition of the fruit, elevates its protein content, and increases its physiologically perceived nutritional value (A) Qualitative changes in blueberries at 1-day intervals after the introduction of D. suzukii larvae (top row) or D. melanogaster larvae (bottom row). The red arrowhead marks the introduction point. (B) Percentage of protein in sample tissue from single fruits either displaying no signs of larval activity (virgin fruit tissue – green bars) or showing signs of larval activity (infested tissue – purple bars) at one-day intervals after placement of first instar larvae in fruits (days after infestation). The protein content of fruits was analyzed using generalized least squares models. Common uppercase letters on top of the graph indicate non-significant differences between treatments. Bars represent the mean, and error bars the SEM, and n the number of investigated fruits. (C) Progression of the average larval weight (mg) at 1-day intervals during development in blueberries from recently hatched D. suzukii first instar larvae. Blue circles represent the mean, error bars the SEM, n the number of investigated samples of larvae. The beige curve represents the 3-parameter sigmoidal growth curve with the equation shown in the graph. All three parameters of the equation are statistically significant (a: t = 14.080, b: t = 26.049, c: t = 5.912, p for all parameters <0.001). (D) Volatile compounds emitted by individual blueberry samples on different days after sham-treated (left), D. melanogaster-infested (center), and D. suzukii-infested (right) blueberries. Bars: Presence of a chemical in a sample. Red bars: Chemicals of interest exclusively present in D. suzukii-infested samples. (E) Schematics of expected dILP2 immunofluorescence signal dynamics in IPCs of larvae feeding on poor or rich protein media (left). Normalized immunofluorescence signals of anti-dILP2 in IPCs of larvae feeding on virgin blueberries (VB - green bar) or 4-day D. suzukii-infested blueberries (IB - purple bar) (right) Bars represent the means, error bars the SEM, and n the number of larvae investigated. two-way ANOVA with tissue type and Drosophila species as explanatory variables (Tissue type: F = 17.405, p < 0.001 (∗∗∗), Drosophila species: F = 0.077, p = 0.782, Tissue type: Drosophila species: F = 1.074, p = 0.302).

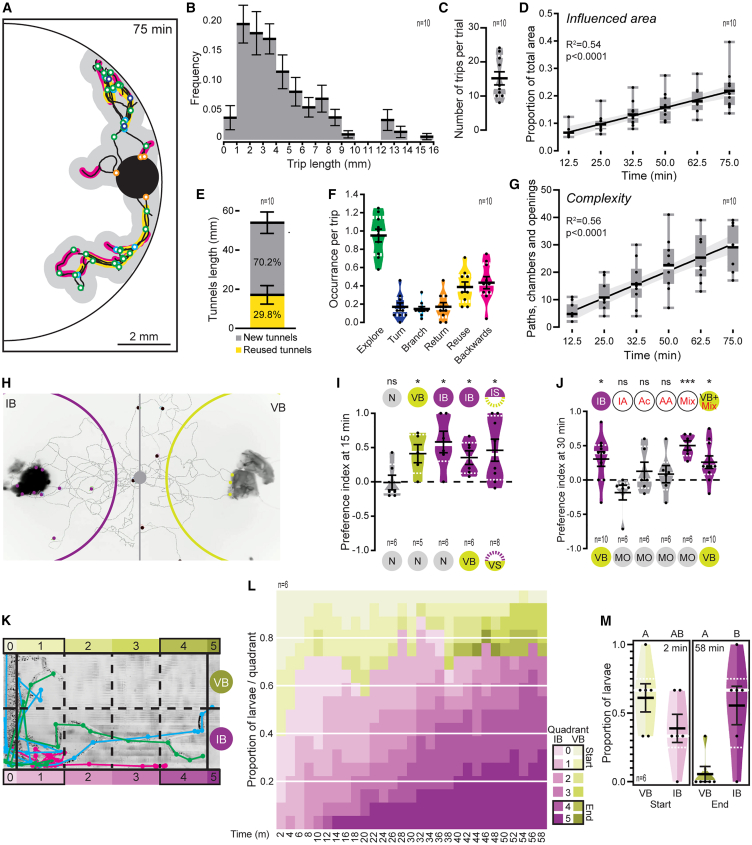

Figure 3
