. 2024 Dec 5;14(12):8899-8914.
doi: 10.21037/qims-24-1233. Epub 2024 Nov 12.

Analysis of tumor treatment under interventional ultrasound through structural and temporal dynamics: a bibliometric visualization

Siyu Liang #  1 , Kangchun Wang #  2 , Feiyang Liu  3 , Ben Li  3 , Haiping Du  4 , Xin Yu  5 , Baomei Yan  3 , Bei Zhao  3
Affiliations

Analysis of tumor treatment under interventional ultrasound through structural and temporal dynamics: a bibliometric visualization

Siyu Liang et al. Quant Imaging Med Surg. .

Abstract

Background: Ultrasound is considered one of the most crucial tools for image-guided tumor ablation, and provides a vital alternative approach to tumor treatment. This study used bibliometric methods to characterize the development history of tumor treatment under interventional ultrasound and explore future research hotspots.

Methods: In this study, we retrieved and selected publications on tumor treatment under interventional ultrasound from the Web of Science Core Collection (WoSCC) database published from 1960 to 2023. In total, 2,588 articles were included in our study. A bibliometric analysis was conducted to explore various aspects of this field, such as global publication trends, institutional and author collaborations, high-impact journals, highly cited publications, and the evolution of research hotspots.

Results: Our results revealed that the global publication output in this field has continuously increased over the past few decades with China and the United States emerging as the most active contributors and maintaining close collaborative relationships. Several institutions and authors, including Chongqing Medical University, had a high publication volume, high citation counts, and a high number of collaborations in this field. Journals like the "Journal of Urology" and "Ultrasound in Medicine and Biology" have enriched the literature resources and fostered developments in this field. In addition, a keyword analysis revealed the main focus areas in this field.

Conclusions: Based on our analysis, we found that the focus of research on tumor treatment under interventional ultrasound has shifted from the exploration of clinical applications to technological advancements and safety. This study also revealed the historical trajectory and identified future trends in this field.

Keywords: Interventional ultrasound; ablation; bibliometrics; high-intensity focused ultrasound (HIFU); tumor treatment.

PubMed Disclaimer

Conflict of interest statement

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-1233/coif). The authors have no conflicts of interest to declare.

Figures

Figure 1
Figure 1

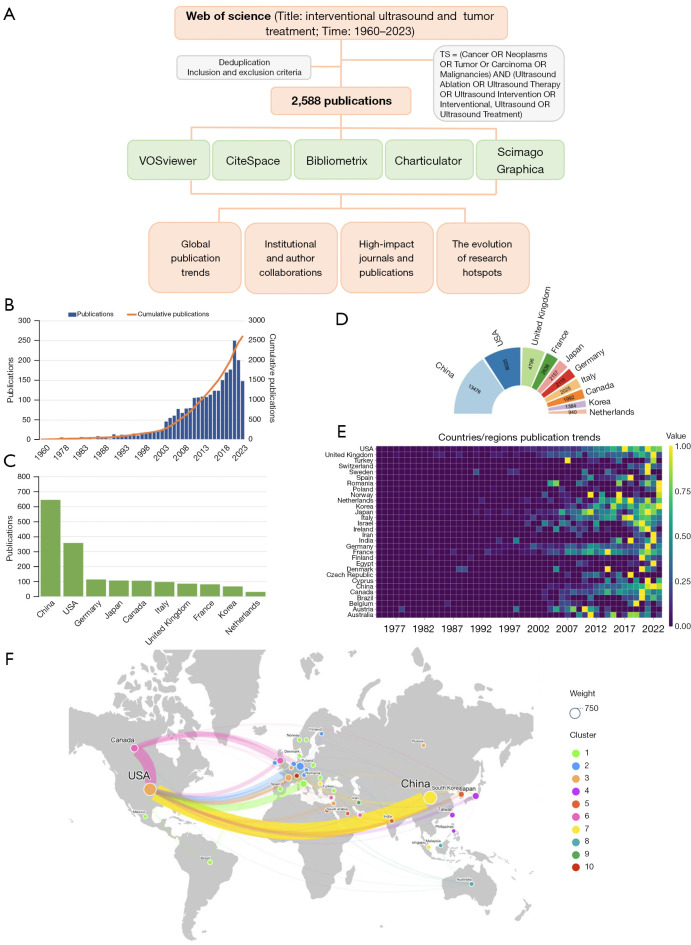

Global trends in research on tumor treatment under interventional ultrasound. (A) The workflow of this study. (B) The number of publications per year, and the cumulative number of publications per year. (C) The top 10 countries/regions with the highest number of publications. (D) The top 10 countries/regions with the highest total citations. (E) Heatmap of the temporal distribution of the publication trends for various countries/regions. (F) Map of collaboration networks between countries/regions. TS, topic search.
Figure 2
Figure 2

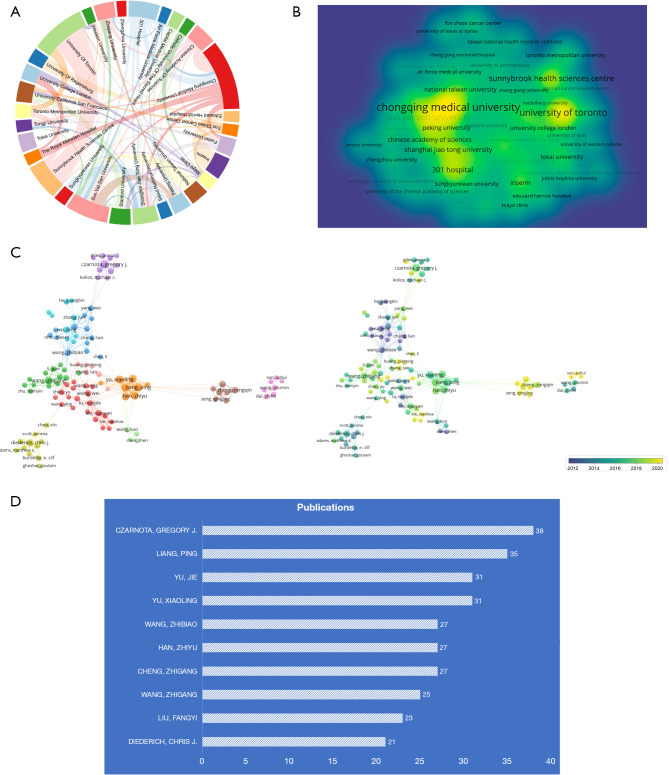

Analysis of institutional and author distribution. (A) Chord diagram illustrating collaboration relationships among the top 30 institutions by publication volume. (B) Density visualization of institutions based on the number of citations. (C) Author collaboration network graph and overlay visualization. (D) Top 10 authors with the highest number of publications in the author collaboration network.
Figure 3
Figure 3

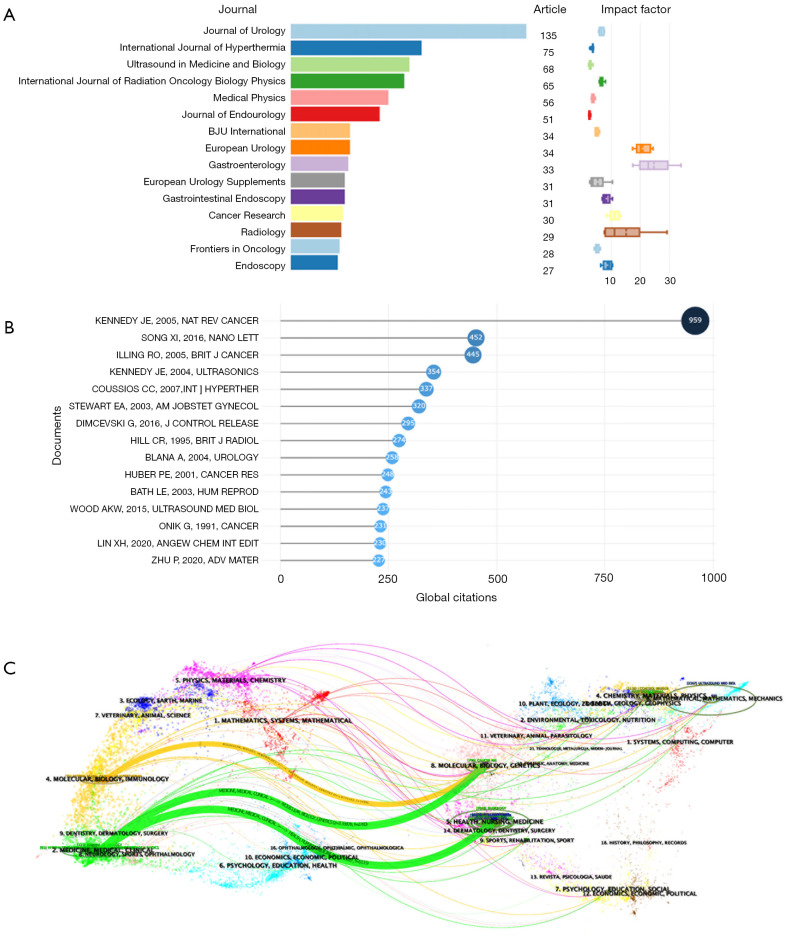

Analysis of high-impact journals and highly cited publications. (A) The top 15 academic journals based on the number of publications and their impact factors. (B) The top 15 most frequently cited publications. (C) Dual-map overlay of the journals.
Figure 4
Figure 4

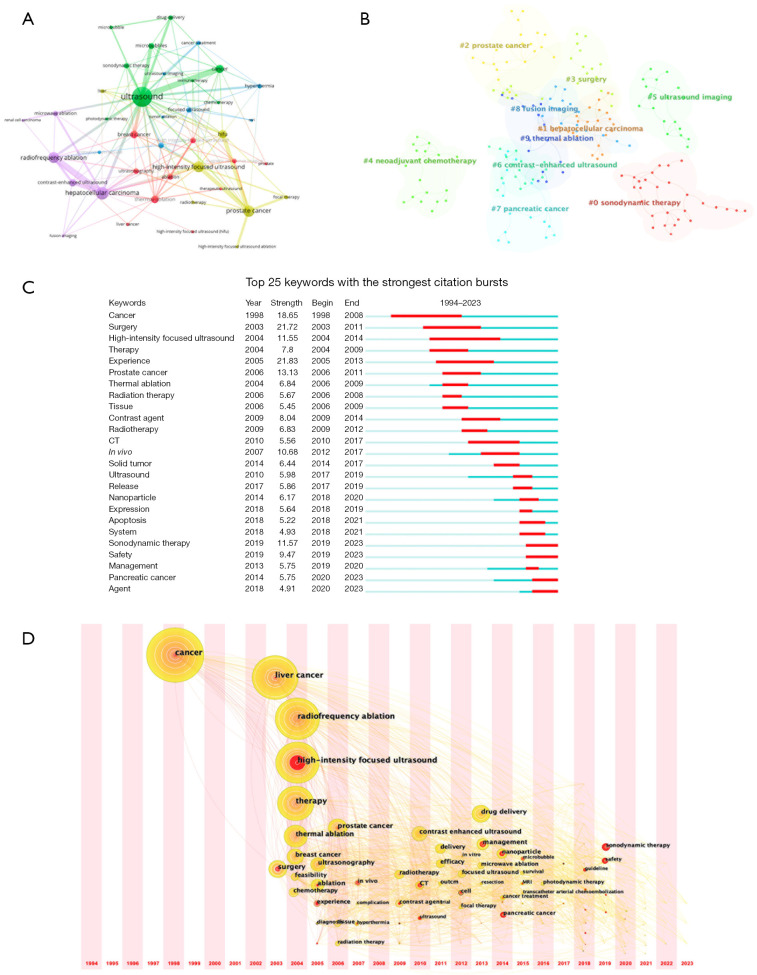

Keywords and evolutions in this research field. (A) Co-occurrence network of keywords. (B) Clustering of keywords. (C) Keyword burst analysis results from 1994 to 2023. (D) Timeline view of keywords from 1994 to 2023. CT, computed tomography.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Cortes J, Perez-García JM, Llombart-Cussac A, Curigliano G, El Saghir NS, Cardoso F, Barrios CH, Wagle S, Roman J, Harbeck N, Eniu A, Kaufman PA, Tabernero J, García-Estévez L, Schmid P, Arribas J. Enhancing global access to cancer medicines. CA Cancer J Clin 2020;70:105-24. 10.3322/caac.21597 - DOI - PubMed
    1. Xu Q, Zhou M, Yin P, Jin D. Projections of cancer mortality by 2025 in central China: A modeling study of global burden of disease 2019. Heliyon 2023;9:e13432. 10.1016/j.heliyon.2023.e13432 - DOI - PMC - PubMed
    1. Sathishkumar K, Chaturvedi M, Das P, Stephen S, Mathur P. Cancer incidence estimates for 2022 & projection for 2025: Result from National Cancer Registry Programme, India. Indian J Med Res 2022;156:598-607. 10.4103/ijmr.ijmr_1821_22 - DOI - PMC - PubMed
    1. Wang Z, Zhou C, Feng X, Mo M, Shen J, Zheng Y. Comparison of cancer incidence and mortality between China and the United States. Precis Cancer Med 2021;4:31.
    1. Rulten SL, Grose RP, Gatz SA, Jones JL, Cameron AJM. The Future of Precision Oncology. Int J Mol Sci 2023;24:12613. 10.3390/ijms241612613 - DOI - PMC - PubMed
