. 2024 Dec 18;9(52):51175-51190.
doi: 10.1021/acsomega.4c07015. eCollection 2024 Dec 31.

Preparation and Characterization of New Biodegradable Packaging Materials Based on Gelatin Extracted from Tenualosa ilisha Fish Scales with Cellulose Nanocrystals

Md Abdul Mottalib  1 , Md Hasan Islam  1 , Mohon Chandra Dhar  1 , Kawsar Akhtar  1 , Md Abdul Goni  2
Affiliations

Preparation and Characterization of New Biodegradable Packaging Materials Based on Gelatin Extracted from Tenualosa ilisha Fish Scales with Cellulose Nanocrystals

Md Abdul Mottalib et al. ACS Omega. .

Abstract

Food packaging industries generally use petroleum-based packaging materials that are non-biodegradable and harmful to the environment. Eco-friendly polymers such as chitosan (CH), gelatin (GE), and cellulose nanocrystals (CNCs) are leading viable alternatives to plastics traditionally used in packaging because of their higher functionality and biodegradability. In this study, an innovative approach has been disclosed to prepare new packaging materials by utilizing chitosan, gelatin, and cellulose nanocrystals (CNCs) through a simple solution casting method. GE and CNCs have been isolated from prawn shells and jute fiber, respectively. Utilization of Hilsa Tenualosa ilisha fish scale biowaste was a new and first approach for gelatin extraction. Fourier transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), thermogravimetric analysis (TGA), UV-vis spectroscopy, and scanning electron microscopy (SEM) were used to examine the functional and morphological features of fish scale gelatin, chitosan, CNCs, and the resulting composite films. The synthesized film materials were analyzed for their mechanical strength, solubility, apparent density, swelling behavior, biodegradability, light transmittance, and transparency. The impregnation of CNCs into the polymer amalgam milieu effectively enhanced their physicochemical and biological properties. The degree of swelling in composite matrices was found to be increased gradually, whereas the solubility was decreased due to the cross-linking effect of CNCs. Elongation at break in the gelatin-chitosan (GC) film was observed as 48%. However, the incorporation of CNCs into the GC matrix potentially enhanced the elongation at break property to 64.05%, 62.86%, and 59.21% in GC1, GC2, and GC3 bioplastic films, respectively. The purified chitosan-gelatin films showed a tensile strength of 12.24 N/mm2, which was increased to 13.93 N/mm2 with the addition of 1.00% CNCs. The composite films were found to be highly transparent and stable in an ambient atmosphere. However, 49-60% deformation occurred in the composite materials after 7 days, whereas 71-84% biodegradation was realized after 21 days, when the respective composite films were subjected to a natural soil environment. These novel composite films possess all essential interesting features, such as biocompatibility, transparency, smoothness of surfaces, and biodegradability, making them suitable for use as packaging materials in different industries.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing financial interest.

Figures

Figure 1
Figure 1
Extraction of gelatin from Hilsa fish scales.
Figure 2
Figure 2
Extraction and isolation of chitosan from raw prawn shells.
Figure 3
Figure 3
Preparation of biodegradable packaging material.
Figure 4
Figure 4
Analysis of fish gelatin by FTIR.
Figure 5
Figure 5
FTIR spectra of chitosan and CNC.
Figure 6
Figure 6
TGA and DTGA studies of gelatin extracted from Hilsa fish scales.
Figure 7
Figure 7
SEM images of fish gelatin at different magnifications.
Figure 8
Figure 8
Spectra obtained from the DLS analysis of CNC.
Figure 9
Figure 9
Results of FT-IR analysis of composite films.
Figure 10
Figure 10
Results of the TGA study on composite films.
Figure 11
Figure 11
DTGA curves of gelatin-based film composites.
Figure 12
Figure 12
XRD analysis data of fish gelatin.
Figure 13
Figure 13
(a) SEM image of the biocomposite film without CNC and (b) SEM image of the biocomposite film with CNC.
Figure 14
Figure 14

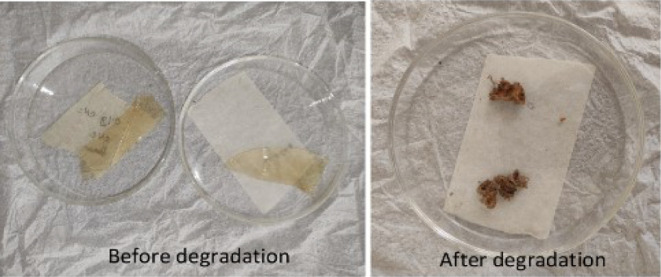

Biocomposite films before and after degradation in natural soil.
Figure 15
Figure 15
Graphical illustration of the biodegradability analysis of composite films.
Figure 16
Figure 16
Degradation of CG biocomposite films (A) before and (B) after exposure to ambient weather.
Figure 17
Figure 17
Degradation of composite films in the natural soil surface environment.
See this image and copyright information in PMC

References

    1. Syahida N. S.; Ismail-Fitry M. R.; Ainun Z. M. A.; Hanani Z. A. N. Effects of palm wax on the physical, mechanical and water barrier properties of fish gelatin films for food packaging application. Food Packaging Shelf Life 2020, 23, 100437.10.1016/j.fpsl.2019.100437. - DOI
    1. Adilah A. N.; Chong G. H.; Hanani Z. A. N. Incorporation of graphene oxide to enhance fish gelatin as bio-packaging material. Food Packaging And Shelf Life 2021, 28, 100679.10.1016/j.fpsl.2021.100679. - DOI
    1. Huang T.; Fang Z.; Zhao H.; Xu D.; Yang W.; Yu W.; Zhang J. Physical Properties and Release Kinetics of Electron Beam Irradiated Fish Gelatin Films with Antioxidants of Bamboo Leaves. Food Biosci. 2020, 36, 100597.10.1016/j.fbio.2020.100597. - DOI
    1. Jeevahan J.; Chandrasekaran M.; Venkatesan S. P.; Sriram V.; Joseph G. B.; Mageshwaran G.; Durairaj R. Scaling up difficulties and commercial aspects of edible films for food packaging: A review. Trends Food Sci. Technol. 2020, 100, 210–222. 10.1016/j.tifs.2020.04.014. - DOI
    1. Li X.; Yang X.; Deng H.; Guo Y.; Xue J. Gelatin Films Incorporated with Thymol Nanoemulsions: Physical Properties and Antimicrobial Activities. Int. J. Biol. Macromol. 2020, 150, 161–168. 10.1016/j.ijbiomac.2020.02.066. - DOI - PubMed
