. 2025 Jan 2;15(1):38-47.
doi: 10.1039/d4ra07964g.

Study of supported heteropolyacid catalysts for one-step DME synthesis from CO2 and H2

Anne Wesner  1 , Nick Herrmann  1 , Lasse Prawitt  1 , Angela Ortmann  1 , Jakob Albert  1 , Maximilian J Poller  1
Affiliations

Study of supported heteropolyacid catalysts for one-step DME synthesis from CO2 and H2

Anne Wesner et al. RSC Adv. .

Abstract

Dimethyl ether (DME) is a versatile molecule, gaining increasing interest as a viable hydrogen and energy storage solution, pivotal for the transitioning from fossil fuels to environmentally friendly and sustainable energy supply. This research explores a novel approach for the direct conversion of CO2 to DME in a fixed-bed reactor, combining the Cu/ZnO/Al2O3 methanol synthesis catalyst with supported heteropolyacids (HPAs). First, various HPAs, both commercially available and custom-synthesized, were immobilized on Montmorillonite K10. Using a wet impregnation procedure an almost ideal mono-layer of HPA on the support was achieved. The catalysts were further evaluated for their efficiency in direct synthesis of DME from CO2/H2 in combination with the Cu/ZnO/Al2O3 catalyst. Among the catalysts tested, tungstosilicic acid (HSiW) supported on K10 exhibited the most promising performance, achieving a DME yield (Y DME) of 7.06% and a molar productivity (P mol) of 77.84 molDME molHPA -1 h-1. In a subsequent step, further tests using HSiW on various support materials identified ZrO2 as the most effective support, increasing the molar productivity to 125.44 molDME molHPA -1 h-1, while maintaining the DME yield. The results highlight the potential of applying HPA-based catalysts for sustainable DME synthesis directly from CO2, emphasizing the critical role of the catalyst support for optimizing catalytic performance.

PubMed Disclaimer

Conflict of interest statement

There are no conflicts to declare.

Figures

Fig. 1

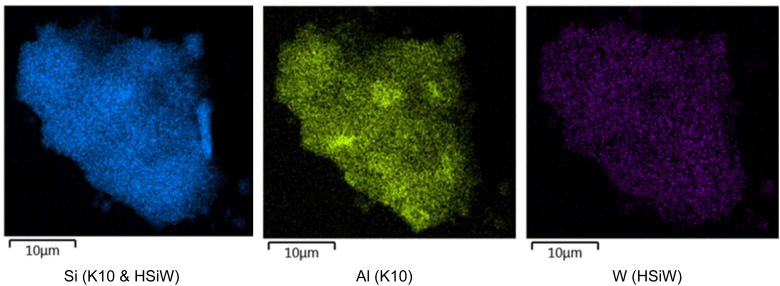

Fig. 1. Exemplary SEM EDX-mapping of HSiW supported on K10.
Fig. 2
Fig. 2. Exemplary IR spectra (left) and XRD (right) of pure HSiW (red line), HSiW supported on K10 (black line) and pure K10 (blue line).
Fig. 3
Fig. 3. NH3-TPD analysis of HPAs supported on K10, normalized to mass of catalyst (left) and normalized to molar mass of supported HPA (right).
Fig. 4
Fig. 4. Yield of DME YDME and productivity Pmass of HPAs supported on K10. Reaction conditions: T = 250 °C, p = 50 bar, H2/CO2 3/1, GHSV = 10 000 h−1.
Fig. 5
Fig. 5. Productivity Pmol of HPAs supported on K10. Reaction conditions: T = 250 °C, p = 50 bar, H2/CO2 3/1, GHSV = 10 000 h−1.
Fig. 6
Fig. 6. Yield of DME YDME and productivity Pmass of HSiW on different supports. Reaction conditions: T = 250 °C, p = 50 bar, H2/CO2 3/1, GHSV = 10 000 h−1.
Fig. 7
Fig. 7. Productivity Pmol of HSiW on different supports. Reaction conditions: T = 250 °C, p = 50 bar, H2/CO2 3/1, GHSV = 10 000 h−1.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Schühle P. Stöber R. Semmel M. Schaadt A. Szolak R. Thill S. Alders M. Hebling C. Wasserscheid P. Salem O. Dimethyl ether/CO2 – a hitherto underestimated H2 storage cycle. Energy Environ. Sci. 2023;16:3002–3013.
    1. Pawelczyk E. Łukasik N. Wysocka I. Rogala A. Gębicki J. Recent Progress on Hydrogen Storage and Production Using Chemical Hydrogen Carriers. Energies. 2022;15:4964.
    1. Hilgers M., Alternative Antriebe und Ergänzungen zum konventionellen Antrieb, Springer Fachmedien Wiesbaden, Wiesbaden, 2016
    1. Azizi Z. Rezaeimanesh M. Tohidian T. Rahimpour M. R. Dimethyl ether: a review of technologies and production challenges. Chem. Eng. Process.: Process Intensif. 2014;82:150–172.
    1. Catizzone E. Bonura G. Migliori M. Frusteri F. Giordano G. CO2 Recycling to Dimethyl Ether: State-of-the-Art and Perspectives. Mol. 2018;23:31. - PMC - PubMed
