. 2025 Jan 22;12(1):e70149.
doi: 10.1002/jeo2.70149. eCollection 2025 Jan.

Biomechanical comparison of all-inside meniscal suture configurations for posterior root tear: Three conventional stitches versus delta-grip stitch

Kyohei Ishibashi  1 , Kyota Ishibashi  1 , Takahiro Tsushima  1 , Eiji Sasaki  1 , Shohei Yamauchi  1 , Yuka Kimura  1 , Yasuyuki Ishibashi  1
Affiliations

Biomechanical comparison of all-inside meniscal suture configurations for posterior root tear: Three conventional stitches versus delta-grip stitch

Kyohei Ishibashi et al. J Exp Orthop. .

Abstract

Purpose: This study aimed to compare the biomechanical properties of four meniscal suture configurations-two simple sutures (TSS), two cinch sutures, a locking loop stitch (LLS), and a delta-grip stitch (DGS)-for transtibial pullout repair of medial meniscus posterior root tears (MMPRTs) using porcine menisci.

Methods: Forty porcine menisci were randomly assigned to each suture configuration with all-inside repair. All specimens were subjected to cyclic loading for 1000 cycles, followed by a load-to-failure test. We evaluated displacement after cyclic loading, the ultimate failure load and the mode of failure.

Results: No significant differences in displacement were observed between the configurations (p = 0.709). The DGS exhibited significantly higher ultimate failure loads (281.4 ± 53.5 N) compared to TSS (166.8 ± 84.5 N) and the LLS (119.7 ± 46.7 N) (p = 0.006 and p < 0.001, respectively). Suture breakage was observed in the DGS group, while meniscus cutout was observed in the other suture configuration models.

Conclusion: The results suggest that the DGS provides superior fixation strength and enhances MMPRT repair outcomes.

Level of evidence: Level IV.

Keywords: all‐inside repair; cinch stitch; delta‐grip stitch; medial meniscus posterior root tear.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflicts of interest.

Figures

Figure 1
Figure 1

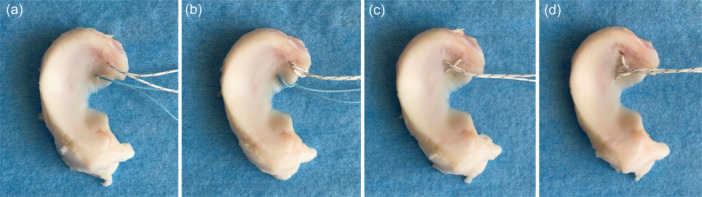

Suture configurations. (a) two simple stitches, (b) two cinch stitches, (c) locking loop stitch and (d) delta‐grip stitch.
Figure 2
Figure 2

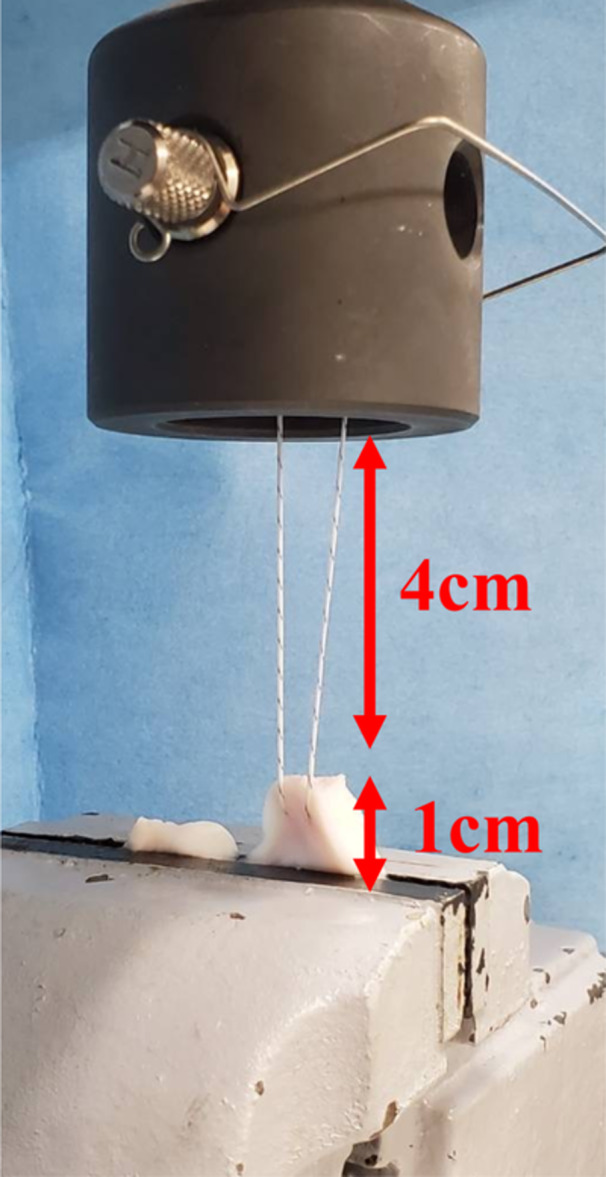

Set‐up for biomechanical testing. The sutures were fastened to the upper clamp. Each meniscus was attached to the lower clamp at a point 1 cm medial to the medial meniscus posterior root.
Figure 3
Figure 3

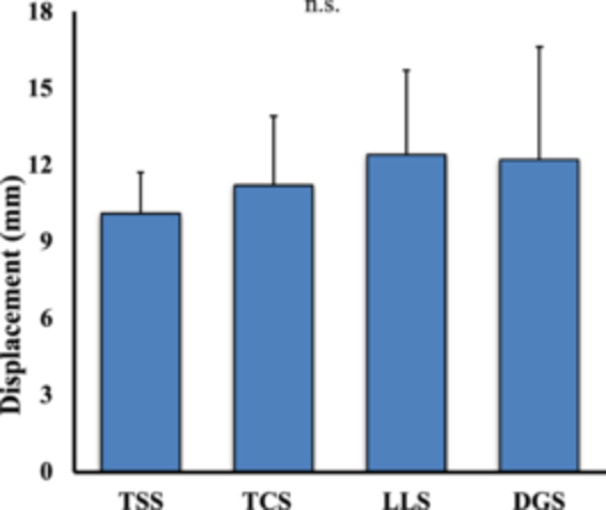

Displacement after cyclic load. Comparison of the displacement distances for each suture configuration DGS, delta‐grip strength; LLS, locking loop stitches; TCS, two cinch stitches; TSS, two simple stitches.
Figure 4
Figure 4

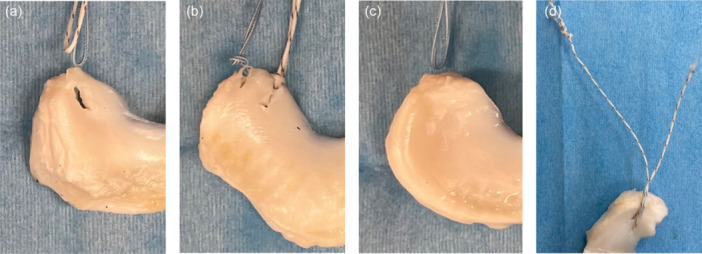

Mode of failure. (a) The mode of failure for two simple stitches, (b) two cinch stitches, (c) locking loop stitch and (d) delta‐grip stitch.
Figure 5
Figure 5

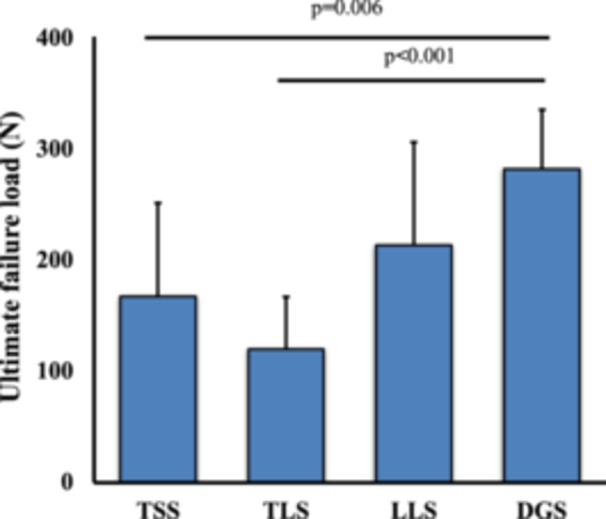

Ultimate failure load. Comparison of the ultimate failure load for each suture configuration. DGS, delta‐grip strength; LLS, locking loop stitches; TCS, two cinch stitches; TSS, two simple stitches.
