Understanding exposure risk using soil testing and GIS around an abandoned asbestos mine

Abstract

Background: Abandoned asbestos mines are a potential source of environmental contamination and exposure for nearby residents. The asbestos exposure risk may persist even after the cessation of mining activity if the mine is not properly closed. One such abandoned mine is at Roro Hills in the Jharkhand state of India. There are limited studies examining soil contamination and asbestos exposure to nearby residents due to abandoned mines. Objectives: The aim of this study is to examine the presence of asbestos in the residential areas of villages surrounding an abandoned asbestos mine and to understand the spread of visible asbestos dust using geographic information system map analysis. Methods: This study examined the presence of asbestos in soil samples from four villages surrounding an abandoned asbestos mine using the scanning electron microscopy technique. The study also compared satellite images taken 13 years apart to determine whether the mine waste containing asbestos had spread over time. Findings: The soil sample testing indicated that, out of 16 soil samples from residential areas, 12 showed the presence of chrysotile asbestos. It was found in the map analysis that asbestos-containing areas had enlarged by around 20% in those years. Conclusion: The evidence indicated the presence of asbestos in the soil of nearby residential areas around the mine, and this contamination has spread over the years. Similar studies at other mine locations are needed, and timely interventions are warranted to protect nearby residents.

Keywords: Asbestos; asbestosis; chrysotile; environmental exposure; mesothelioma; mining; pneumoconiosis; spatial analysis.

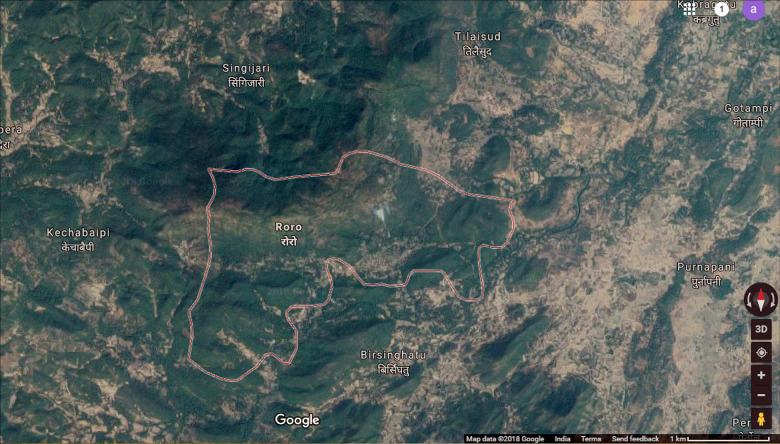

Figure 1

Roro village, with an asbestos pile in the center, and surrounding study villages.

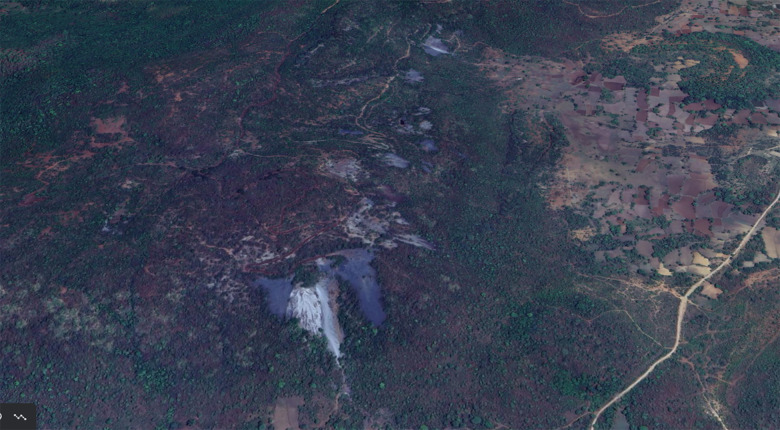

Figure 2

The Roro hill top with mine waste deposits at multiple locations.

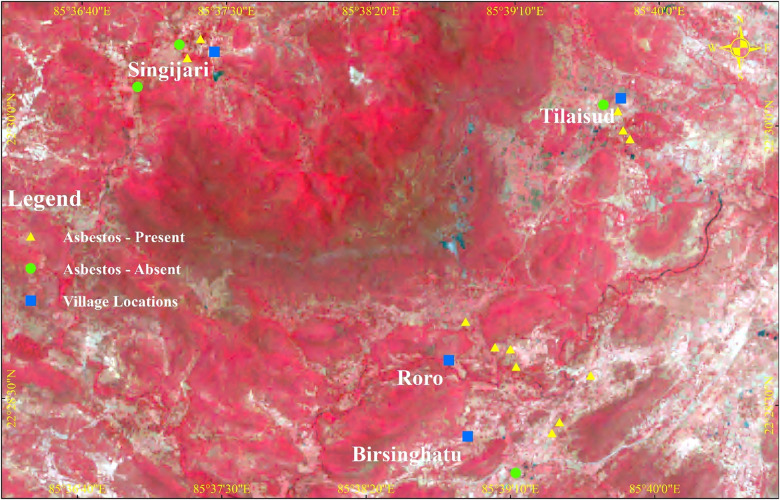

Figure 3

Soil sample locations in villages around the mine.

Figure 4

Asbestos fiber from sample 3 as seen under an electronic microscope.

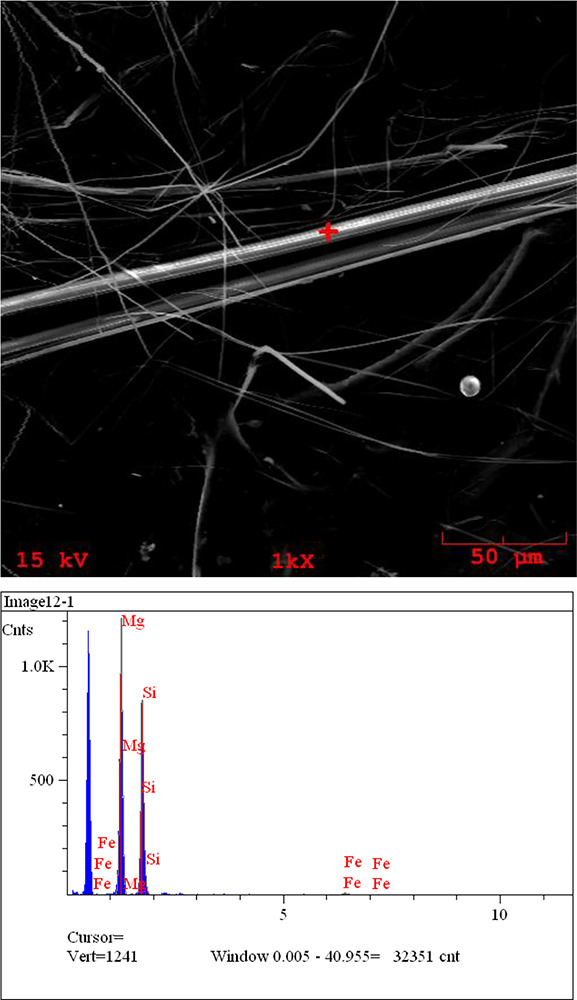

Figure 5

Image of asbestos fiber under an electron microscope and chemical analysis of the fiber with element composition at the marked point of the fiber.

Figure 6

Area of asbestos spread analyzed using temporal Google Earth satellite imageries and super imposed over the FCC of Sentinel 2 images.
