Programmable scanning diffuse speckle contrast imaging of cerebral blood flow

Abstract

Significance: Cerebral blood flow (CBF) imaging is crucial for diagnosing cerebrovascular diseases. However, existing large neuroimaging techniques with high cost, low sampling rate, and poor mobility make them unsuitable for continuous and longitudinal CBF monitoring at the bedside.

Aim: We aimed to develop a low-cost, portable, programmable scanning diffuse speckle contrast imaging (PS-DSCI) technology for fast, high-density, and depth-sensitive imaging of CBF in rodents.

Approach: The PS-DSCI employed a programmable digital micromirror device (DMD) for remote line-shaped laser (785 nm) scanning on tissue surface and synchronized a 2D camera for capturing boundary diffuse laser speckle contrasts. New algorithms were developed to address deformations of line-shaped scanning, thus minimizing CBF reconstruction artifacts. The PS-DSCI was examined in head-simulating phantoms and adult mice.

Results: The PS-DSCI enables resolving intralipid particle flow contrasts at different tissue depths. In vivo experiments in adult mice demonstrated the capability of PS-DSCI to image global/regional CBF variations induced by 8% ${\mathrm{CO}}_2$ inhalation and transient carotid artery ligations.

Conclusions: Compared with conventional point scanning, line scanning in PS-DSCI significantly increases spatiotemporal resolution. The high sampling rate of PS-DSCI is crucial for capturing rapid CBF changes while high spatial resolution is important for visualizing brain vasculature.

Keywords: cerebral blood flow; diffuse optics; digital micromirror device; line-shaped scanning; speckle contrast imaging.

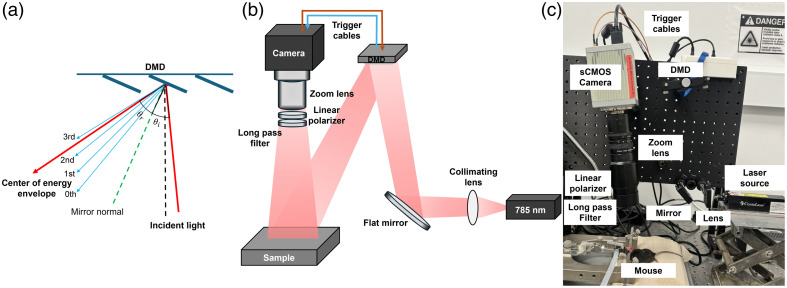

Fig. 1

PS-DSCI system. (a) The distribution of diffraction orders and energy envelope reflected by the DMD, which are dependent on the angle of incidence ($\theta i$) and angle of reflection ($\theta r$). $\theta r$ represents the center of energy envelope distribution. (b) Schematic of the PS-DSCI prototype. (c) A photo of the PS-DSCI prototype.

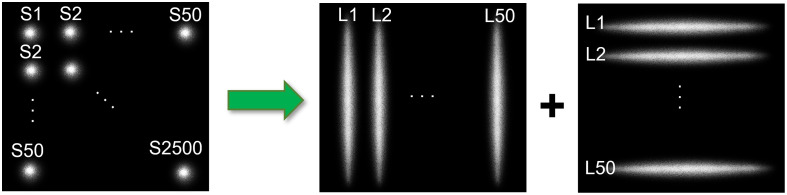

Fig. 2

Point scanning (scDCT) versus line scanning (PS-DSCI). In contrast to 2500 scanning points (S1 to S2500) by scDCT, PS-DSCI scans the same ROI with 100 scanning lines (L1 to L50, along vertical and horizontal directions, respectively).

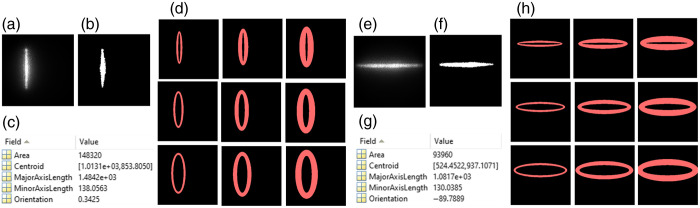

Fig. 3

Extraction of detector area/belt around the line-shaped source. (a) and (e) Raw intensity images of vertical and horizontal oval-shaped sources, respectively. (b) and (f) Binary masks of vertical and horizontal oval-shaped sources, respectively. (c) and (g) An example of vertical and horizontal oval-shaped source properties extracted using the “regionprops” function in MATLAB’s Image Processing Toolbox. (d) and (h) The elliptical-shaped detector belts with varied S-D separations of 1 to 3 mm and varied detector-belt thicknesses of 1 to 3 mm.

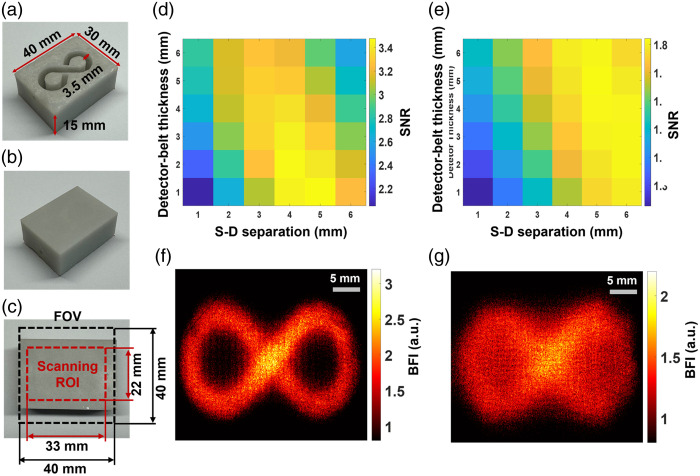

Fig. 4

Depth-sensitive 2D mapping of intralipid particle flow in head-simulating phantoms. (a) Bottom view of fabricated solid phantom with the infinity-shaped channel, designed to be filled with the liquid phantom. (b) Top view of the fabricated phantom. (c) The selected camera FOV and scanning ROI on the top of the phantom. (d) The SNR distribution with varied S-D separations (1 to 6 mm) and detector-belt thicknesses (1 to 6 mm) for the phantom with top layer thickness of 1 mm. (e) The SNR distribution with varied S-D separations (1 to 6 mm) and detector-belt thicknesses (1 to 6 mm) for the phantom with top layer thickness of 2 mm. (f) The 2D flow map of head-simulating phantom with the top layer of 1 mm thickness. The S-D separation and detector-belt thickness for flow map reconstruction were 4 and 2 mm, respectively. (g) The 2D flow map of the head-simulating phantom with the top layer of 2 mm thickness. The S-D separation and detector-belt thickness for flow map reconstruction were 5 and 4 mm, respectively.

Fig. 5

Two-dimensional maps of BFI at different depths in a representative mouse (mouse #7). (a) The selected ROI for BFI mapping on the exposed skull with its scalp retracted. (b) The speckle image with a vertical scanning line on the ROI. (c) The speckle image with a horizontal scanning line on the ROI. (d) 2D maps of BFI with varied S-D separations of 1 to 3 mm and detector-belt thicknesses of 1 to 3 mm.

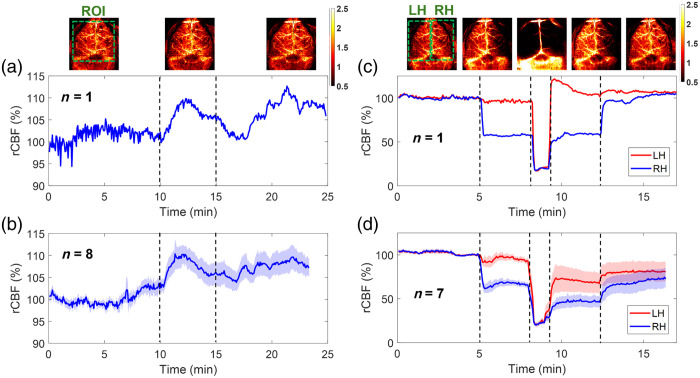

Fig. 6

Continuous mapping of rCBF variations during 8% ${\mathrm{CO}}_2$ inhalations and transient carotid artery ligations in mice with intact skulls. (a) BFI maps and time-course rCBF changes before, during, and after 8% ${\mathrm{CO}}_2$ inhalation in an illustrative mouse (mouse #8). The dash lines separate 10 min of baseline, 5 min of ${\mathrm{CO}}_2$ inhalation, and 10 min of recovery, respectively. The ROI for data analysis of rCBF time-course changes is shown in the first BFI map. (b) Group average time-course rCBF changes during 8% ${\mathrm{CO}}_2$ inhalations in eight mice (mouse #1 to mouse #8). The error bars represent standard errors. (c) BFI maps and time-course rCBF changes during transient carotid artery ligations in an illustrative mouse (mouse #8). The dash lines separate the 5 min of baseline, 3 min of right carotid artery ligation, 1 min of bilateral ligation, 3 min of left carotid artery release, and 5 min of right carotid artery release. The ROI of LH and RH for data analyses of rCBF time-course changes are shown in the first BFI map. (d) Group average time-course rCBF changes during transient carotid artery ligations in seven mice (mouse #1 to mouse #4 and mouse #6 to mouse #8). The error bars represent standard errors.

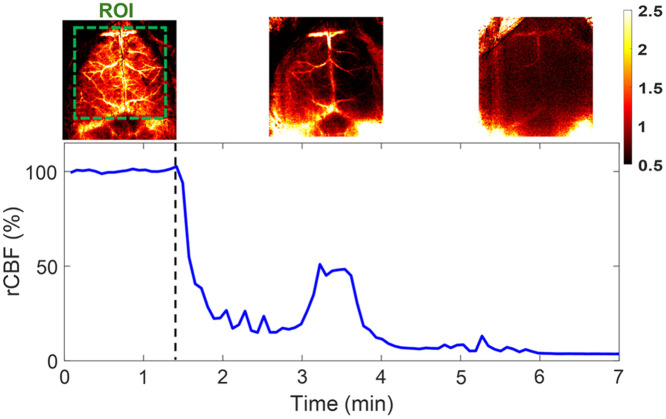

Fig. 7

Continuous mapping of rCBF variations during 100% ${\mathrm{CO}}_2$ inhalations in mouse #8 with an intact skull. BFI maps and time-course rCBF changes in mouse #8 before and during 100% ${\mathrm{CO}}_2$ inhalation until its death. More than a 95% decrease in rCBF was observed at the end of the experiment when mouse #8 died. The dashed line separates the baseline and 100% ${\mathrm{CO}}_2$ inhalation phases. The ROI for data analysis of rCBF time-course changes is shown in the first BFI map.

Fig. 8

Continuous mapping of rCBF variations during 8% ${\mathrm{CO}}_2$ inhalations and transient carotid artery ligations in mouse #9 with an intact head. (a) BFI maps and time-course rCBF changes before, during, and after 8% ${\mathrm{CO}}_2$ inhalation in mice with intact heads. The dash lines separate 10 min of baseline, 5 min of ${\mathrm{CO}}_2$ inhalation, and 10 min of recovery, respectively. The ROI for data analysis of rCBF time-course changes is shown in the first BFI map. (b) BFI maps and time-course rCBF changes during transient carotid artery ligations in a mouse with an intact head. The dashed lines separate the 5 min of the baseline, 3 min of the left carotid artery ligation, 1 min of the bilateral ligation, 3 min of the right carotid artery release, and 5 min of the left carotid artery release. The ROI of LH and RH for data analysis of rCBF time-course changes are shown in the first BFI map.
