Macro-re-entry atrial flutter involving the caval side of a persistent Eustachian valve

Ahmed T Mokhtar  1 , Ahmed T Moustafa  2 , Rami Abazid  2 , Aashish Geola  2 , Sarah Blissett  2 , Allan C Skanes  2
Affiliations
Case Reports

Macro-re-entry atrial flutter involving the caval side of a persistent Eustachian valve

Ahmed T Mokhtar et al. HeartRhythm Case Rep. .
No abstract available

Keywords: Ablation; Arrhythmia; Atrial flutter; Congenital heart disease; Imaging.

PubMed Disclaimer

Conflict of interest statement

The authors have no conflicts of interest to disclose.

Figures

Figure 1
Figure 1
A: A 12-lead electrocardiogram demonstrating features of typical counterclockwise atrial flutter (AFL) with underlying right bundle branch block and extreme axis deviation. B: Prospectively gated cardiac computed tomography scan with sagittal (left image) and coronal (right image) planes demonstrating the large, persistent Eustachian valve (EV) with inferior vena cava (IVC) distention and right atrium (RA) dilation. C: Intracardiac recording from a multipolar electrode during the clinical AFL. The ablation catheter was placed on the IVC side of the EV, demonstrating a fractionated signal during the atrial diastolic period (red arrow). D: Ablation and termination of clinical AFL at this site. ASD = atrial septal defect; LA = left atrium.
Figure 2
Figure 2
A: Propagation map with an inferior view demonstrating an early-meets-late signal at the Eustachian valve (EV). B: Left-lateral view of the propagation map demonstrating the early-meets late signal. C: Entrainment on the EV using the ablation catheter demonstrating an in-circuit response during tachycardia; postpacing interval minus tachycardia cycle length (PPI – TCL) equals 17 milliseconds. D: Entrainment from coronary sinus 7,8 (closer to the cavotricuspid isthmus) demonstrating PPI – TCL = 26 milliseconds.
Figure 3
Figure 3

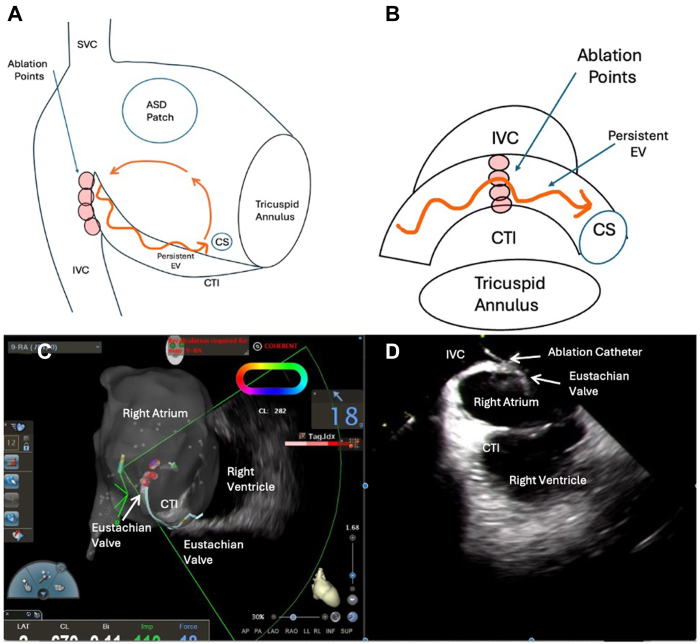

A: Right anterior oblique view demonstrating the circuit based on entrainment and propagation map during atrial flutter. Ablation was delivered on the caval side of the Eustachian valve (EV). B: Focused left anterior oblique view of the same, demonstrating the propagation of the tachycardia across the EV. C: Electroanatomic map of the right atrium in right anterior oblique view. The intracardiac echocardiogram (ICE) catheter fan is directed toward the EV with the ablation catheter on the caval side of the EV. D: Corresponding ICE view from the fan demonstrating the location of the ablation catheter in relation to the EV, with the ablation being performed on the inferior vena cava (IVC) side of the EV. ASD = atrial septal defect; CS = coronary sinus; CTI = cavotricuspid isthmus; SVC = superior vena cava.
