. 2025 Mar;603(5):1325-1328.
doi: 10.1113/JP288355. Epub 2025 Feb 5.

Evolutionary poker lacks a full deck when modelling the LTEE Cit+ phenotype

Scott A Minnich  1 , Carolyn J Hovde  1
Affiliations

Evolutionary poker lacks a full deck when modelling the LTEE Cit+ phenotype

Scott A Minnich et al. J Physiol. 2025 Mar.
No abstract available

Keywords: contingency; escherichia coli Cit+; evolution modeling; long‐term evolution experiment.

PubMed Disclaimer

Conflict of interest statement

No competing interests declared.

Figures

Figure 1

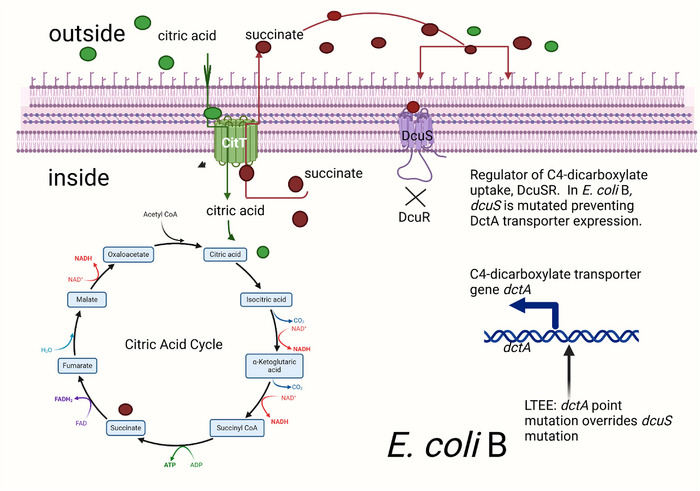

Figure 1. E. coli B aerobic citrate utilization requires constitutive expression of CitT and a suppressor mutation of dcuS −
The CitT antiporter (green complex in the inner membrane) is expressed aerobically after citT amplification followed by chromosome remodelling to capture an aerobic promoter. The antiporter function of CitT is depicted as uptake of external citrate (green spheres) and export of a C4‐dicarboxylic acid, such as succinate (red spheres). At this initial stage, import of citrate yields a net gain of two carbons for metabolism. However, as growth continues and succinate accumulates outside the cell, succinate cannot be recaptured. This is because in E. coli B DcuS is defective and cannot phosphorylate DcuR (see X under DcuS) preventing expression of DctA that is required for C4‐dicarboxylate uptake. Overcoming the lack of the DcuSR two‐component system requires a point mutation of the dctA promoter. This took 15 years (33,000 generations) to occur in LTEE and only happened in one of the 12 populations.
Figure 2

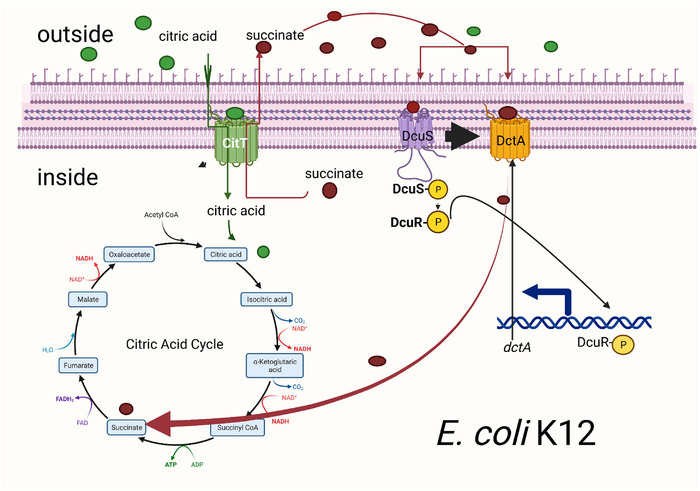

Figure 2. E. coli K12 aerobic citrate utilization only requires constitutive expression of CitT.
The CitT antiporter (green complex in the inner membrane) is expressed aerobically after citT amplification followed by chromosome remodelling to capture an aerobic promoter. The antiporter function of CitT is depicted as uptake of external citrate (green spheres) by CitT driven by export of a C4‐dicarboxylic acid, such as succinate (red spheres). As growth continues and succinate accumulates in the environment, it binds to the DcuS sensor protein of the DcuSR two‐component system (purple complex in inner membrane). This binding induces DcuS to auto‐phosphorylate (DcuS∼P) which then phosphorylates DcuR. DcuR∼P transcriptionally activates dctA, coding for a C4‐dicarboxylate transporter. The DctA protein transporter, orange complex in the inner membrane, recaptures the four carbons lost by the CitT antiporter. Imported succinate can feed directly into the citric acid cycle and be fully oxidized to CO2 and H2O.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Blount, Z. D. , Borland, Z. D. , & Lenski, R. E. (2008). Historical contingency and the evolution of a key innovation in an experimental population of Escherichia coli . Proceedings of the National Academy of Sciences of the United States of America, 105(23), 7899–7906. - PMC - PubMed
    1. Hall, B. G. (1982). Chromosomal mutation for citrate utilization by Escherichia coli K12. Journal of Bacteriology, 151, 269–273. - PMC - PubMed
    1. Leon, D. , D'Alton, S. , Quandt, E. M. , & Barrick, J. E. (2018). Innovation in an E. coli evolution experiment is contingent on maintaining adaptive potential until competition subsides. PLoS genetics, 14(4), e1007348. - PMC - PubMed
    1. Pennesi, E. (2013). The man who bottled evolution. Science, 342, 790–793 - PubMed
    1. Root‐Bernstein, R. S. , & Bernstein, M. I. (2024). ‘Evolutionary poker’: An agent‐based model of interactome emergence and epistasis tested against Lenski's long‐term E. coli experiments. The Journal of Physiology, 602(11), 2511–2535. - PubMed
