Modeling and Relative Permittivity Modulation of Cu/PDMS Capacitive Flexible Sensor for Pressure Sensing

Abstract

This study aims to establish an equivalent parallel capacitance model for a copper/polydimethylsiloxane (Cu/PDMS) capacitive flexible pressure sensor and modulate its relative permittivity to optimize pressure sensing performance. The Cu/PDMS composite material is an ideal dielectric layer for sensors due to its high dielectric constant and tunable elasticity. By adjusting the different mixing ratios of PDMS and copper particles in micro size, the components and structure properties of the composite material can be modified, thereby affecting the electrical and mechanical performance of the sensor. We used finite element analysis (FEA) to model the sensor structure and studied the capacitance changes under various normal loading conditions to assess its sensitivity and distribution characteristics. Experimental results show that the sensor has good sensitivity and repeatability in the pressure range of 0 to 50 kPa. Additionally, we explored the effect of the addition of carbon black particles. It could be inferred that the added carbon black can enhance electrical properties due to its conductivity, which would be consequenced by the distribution optimization of Cu particles for carbon black's low density, and it can mechanically restore some flexibility up to nearly 20%. Through these studies, our work can provide theoretical support for the design and application of flexible pressure sensors.

Keywords: capacitive; flexible sensor; relative permittivity modulation; tactile sensor.

Figure 1

Capacitive sensor structure diagram.

Figure 2

Diagram of normal force.

Figure 3

Schematic distribution of conductive particles in the dielectric layer.

Figure 4

Diagram of the formation process of the composite dielectric layer. (a) Local schematic diagram of dielectric layer. (b) Dielectric layer of multilayer structure. (c) Composite dielectric layer structure.

Figure 5

Schematic modeling of a composite dielectric layer.

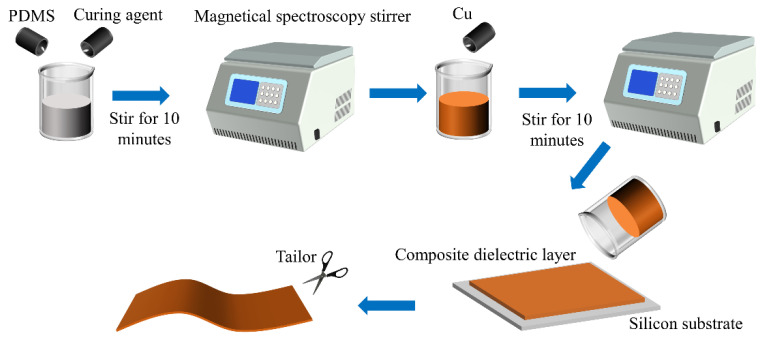

Figure 6
