. 2025 Mar 12;15(1):8483.
doi: 10.1038/s41598-025-89593-x.

Microstructural and statistical analysis on mechanical performance of novel flattened end nylon fibre reinforced concrete

M Sridhar  1 , M Vinod Kumar  1 , N Nagaprasad  2 , Suraj Kumar Bhagat  3 , Krishnaraj Ramaswamy  4   5
Affiliations

Microstructural and statistical analysis on mechanical performance of novel flattened end nylon fibre reinforced concrete

M Sridhar et al. Sci Rep. .

Abstract

This study investigates the use of novel flattened-end nylon fibres (FENF) as reinforcement in concrete to improve its mechanical properties. The research addresses inadequate circumferential bonding between macro synthetic fibres and concrete matrix, which can lead to fibre slippage or failure. Through experiments involving 19 concrete mixes with varying fibre dosages (0.5%, 1% and 1.5%), aspect ratios (35, 55 and 75), and shapes (straight and flattened-end), the study examines the impact of FENF on concrete workability and mechanical strengths. The mechanical strength tests illustrate the significance of fibre dosage, aspect ratio and especially the shape as the compressive, split-tensile strength and flexural strengths of the FENF concrete are respectively showing an increase in strength of up to 10.3%, 25.1% and 26.1% when compared with conventional concrete. Similarly, the straight nylon fibre-reinforced concrete also achieved comparable strength increments up to 11.8%, 13.9% and 15.9% respectively for compressive, split-tensile and flexural strengths. This indicates that the positive effect of fibre shape on circumferential bonding helped the better performance of the FENF in split-tensile and flexural strengths. Further, the statistical methods, including regression analysis, Principal Components Analysis, and Response Surface Methodology, are employed to analyse the complex relationships between fibre characteristics and identify optimal fibre configurations. Using the Scanning Electron Microscope (SEM) the microstructural view has been studied to evaluate the interaction between FENF and the concrete matrix.

Keywords: Fibre-reinforced concrete; Mechanical properties; Microstructural analysis; Novel flattened-end nylon fibres; Optimization.

PubMed Disclaimer

Conflict of interest statement

Declarations. Competing interests: The authors declare that they have no conflict of interest.

Figures

Fig. 1
Fig. 1
Methodology.
Fig. 2
Fig. 2
Illustration of FENF preparation: (a) Raw nylon monofilament fibres, (b) Nylon fibres cut to form straight fibre, (c) Collection of FENF after end-flattening, and (d) Enlarged view of FENF, showing the straight portion and flattened ends.
Fig. 3
Fig. 3
Slump cone values.
Fig. 4.
Fig. 4.

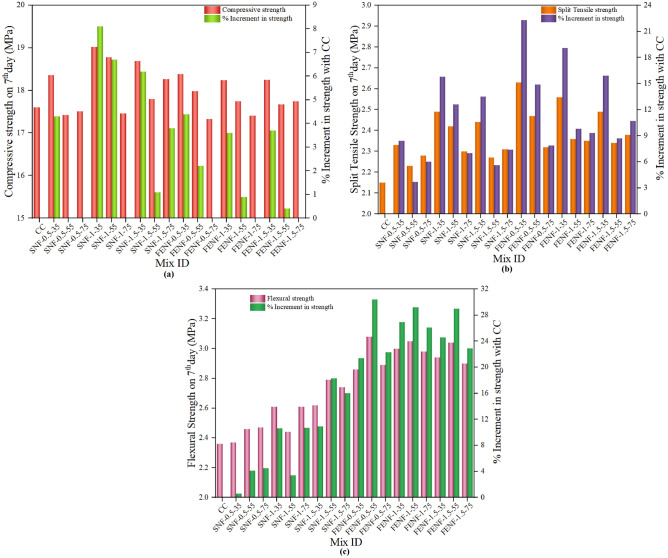

7th Day Strength under: (a) Compression, (b) Split-tension, and (c) Flexure.
Fig. 5.
Fig. 5.
28th Day Strength under: (a) Compression, (b) Split-tension, and (c) Flexure.
Fig. 6
Fig. 6
Histograms of standardized residuals for: (a) Compressive Strength; (b) Split-Tensile Strength; (c) Flexural Strength.
Fig. 7
Fig. 7

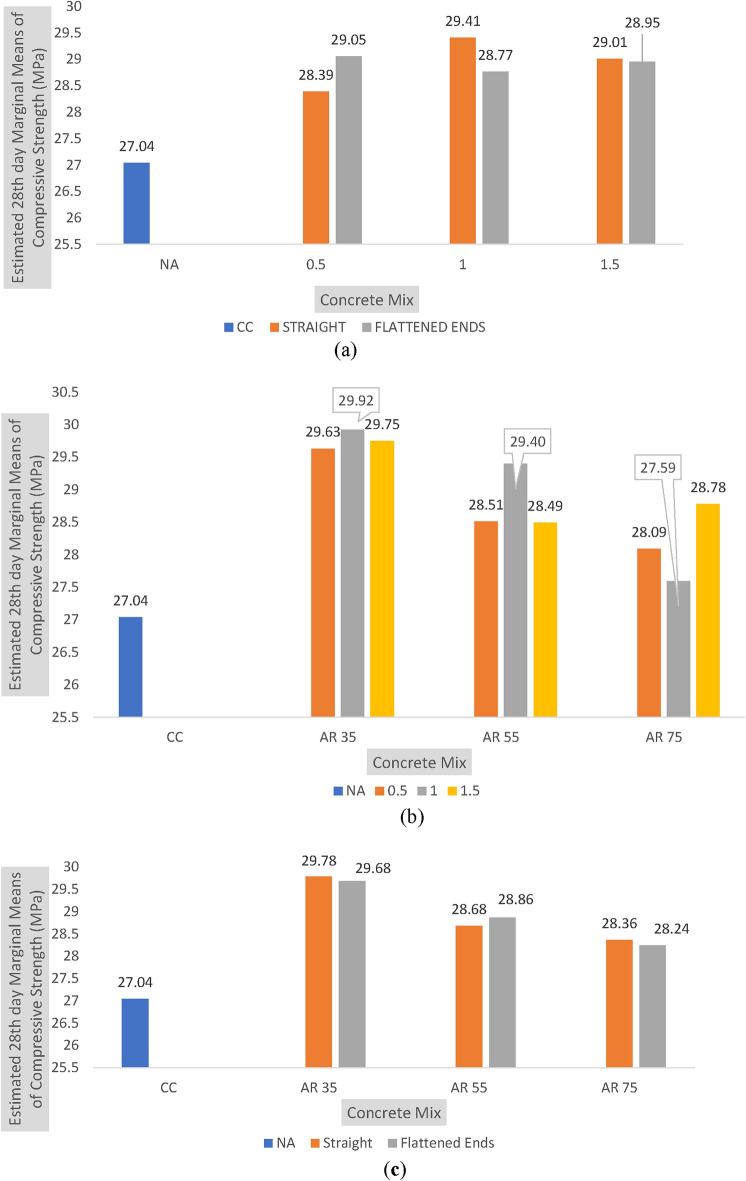

Interaction Effects Plots for the Compressive Strength: (a) Dosage and Shape of the Fibre; (b) Dosage and Aspect Ratio; (c) Shape of the Fibre and Aspect Ratio.
Fig. 8
Fig. 8

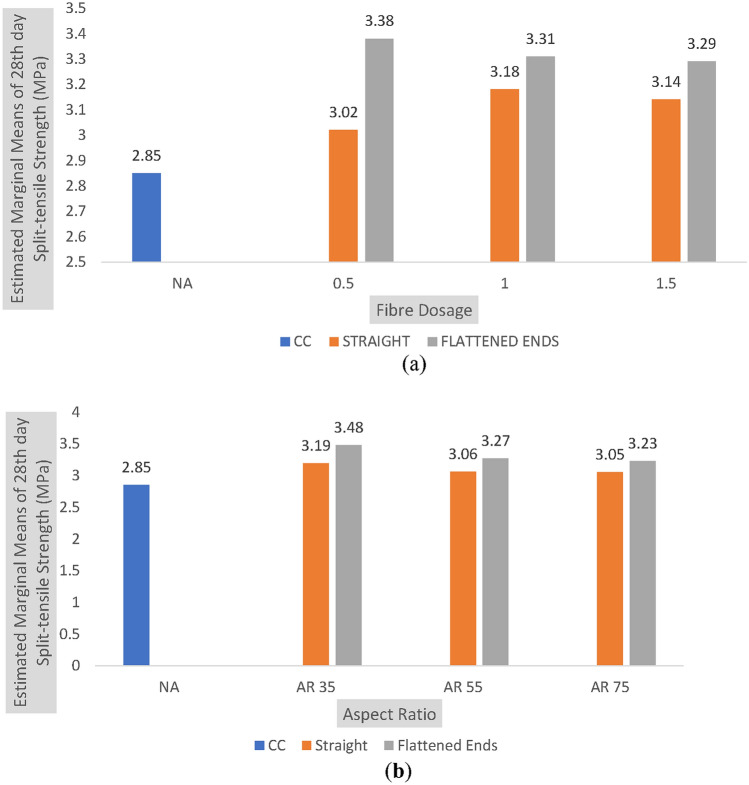

Interaction Effects Plots for the Split-Tensile Strength: (a) Dosage and Shape of the Fibre; (b) Shape of the Fibre and Aspect Ratio.
Fig. 9
Fig. 9
Interaction Effects Plots for the Flexural Strength: (a) Dosage and Aspect Ratio; (b) Shape of the Fibre and Aspect Ratio.
Fig. 10
Fig. 10
Scree Plot.
Fig. 11
Fig. 11
SEM images of concrete: (a) Conventional Concrete Sample, (b) & (c) Concrete with SNF, (d) Concrete with FENF in cross-section (e) Concrete with FENF in longitudinal section.
See this image and copyright information in PMC

References

    1. Khan, M.S., Hashmi, A.F., Shariq, M. Ibrahim, S.M. (2023) Effects of incorporating fibres on mechanical properties of fibre-reinforced concrete: A rev. Mater. Today Proc. 10.1016/j.matpr.2023.05.106.
    1. Rasi-Heikkinen, P. Influence of fibers on the mechanical properties and durability of ultra-high-performance concrete: A review. J. Build. Eng.52, 104370 (2022).
    1. Chen, B., Su, J., Xu, G., Zhang, D. & Zhou, J. Effects of fibers on the mechanical properties of UHPC: A review. J. Traffic & Transp. Eng.9(3), 363–387 (2022).
    1. Abd Elmoaty, M., Morsy, A. & Harraz, A. B. Effect of fiber type and volume fraction on fiber reinforced concrete and engineered cementitious composite mechanical properties. Buildings12(12), 2108 (2022).
    1. Ahsan, M. et al. Influence of fibers on fresh and mechanical properties of (FRC) Fiber Reinforced Concrete, a step towards sustainability. J. Appl. Eng. Sci.13(1), 17–22 (2023).
