Applications and Recent Advances of Low-Temperature Multicomponent Solders in Electronic Packaging: A Review

Guodong Wu  1   2 , Jingfang Shen  3 , Ding Zhou  1 , Muhammad Khairi Faiz  1 , Yew Hoong Wong  1
Affiliations
Review

Applications and Recent Advances of Low-Temperature Multicomponent Solders in Electronic Packaging: A Review

Guodong Wu et al. Micromachines (Basel). .

Abstract

Flexible wearable devices and solar flexible units often use thermally sensitive organic materials as substrates, which are prone to thermal damage during the bonding process in 3D packaging, leading to chip deformation or failure. Multicomponent solders, with well-designed multicomponent metallic elements, exhibit unique low-melting-point characteristics. The application of low-temperature multicomponent solders in electronic packaging can significantly reduce bonding temperatures and minimize thermal damage to chips. This paper reviews the wettability and preparation methods of low-temperature multicomponent solders, and concludes the effect of different metallic elements on the solders. Additionally, this paper discusses the research on interfacial reactions, mechanical properties of low-temperature multicomponent solder joints, providing valuable insights for future research and development in this field.

Keywords: HEA; IMC; low-temperature; multicomponent solder; shear strength; wettability.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflicts of interest.

Figures

Figure 1
Figure 1
Illustrations of (a) a perfect BCC lattice in pure metals and (b) a distorted BCC lattice in multicomponent alloys. (The different colors in the diagram represent different types of elements).
Figure 2
Figure 2
Strengthening effect of Al addition on the cast hardness of AlxCoCrCuFeNi alloys. A, B and C refer to the hardness of FCC, FCC + BCC, and BCC lattice constant, respectively.
Figure 3
Figure 3

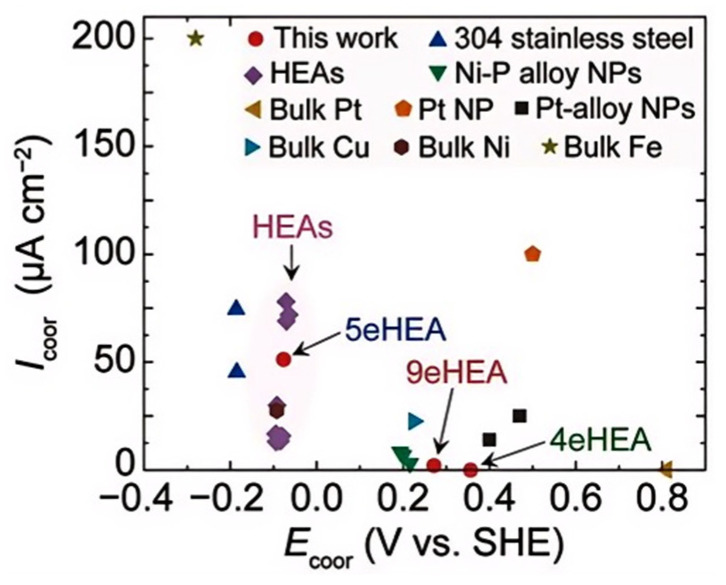

Corrosion parameters of various metals and alloys.
