. 2025 Feb:2025:352-354.
doi: 10.1109/isscc49661.2025.10904714. Epub 2025 Mar 6.

An RFID-Inspired One-Step Packaged Multimode Bio-Analyzer with Vacuum Microfluidics for Point-of-Care Diagnostics

Yan-Ting Hsiao  1 , Ya-Chen Tsai  1 , Wei Foo  1 , Hung-Yu Hou  1 , Yun-Chun Su  2 , Yueting Lily Li  1 , Jun-Chau Chien  1
Affiliations

An RFID-Inspired One-Step Packaged Multimode Bio-Analyzer with Vacuum Microfluidics for Point-of-Care Diagnostics

Yan-Ting Hsiao et al. Dig Tech Pap IEEE Int Solid State Circuits Conf. 2025 Feb.
No abstract available

PubMed Disclaimer

Figures

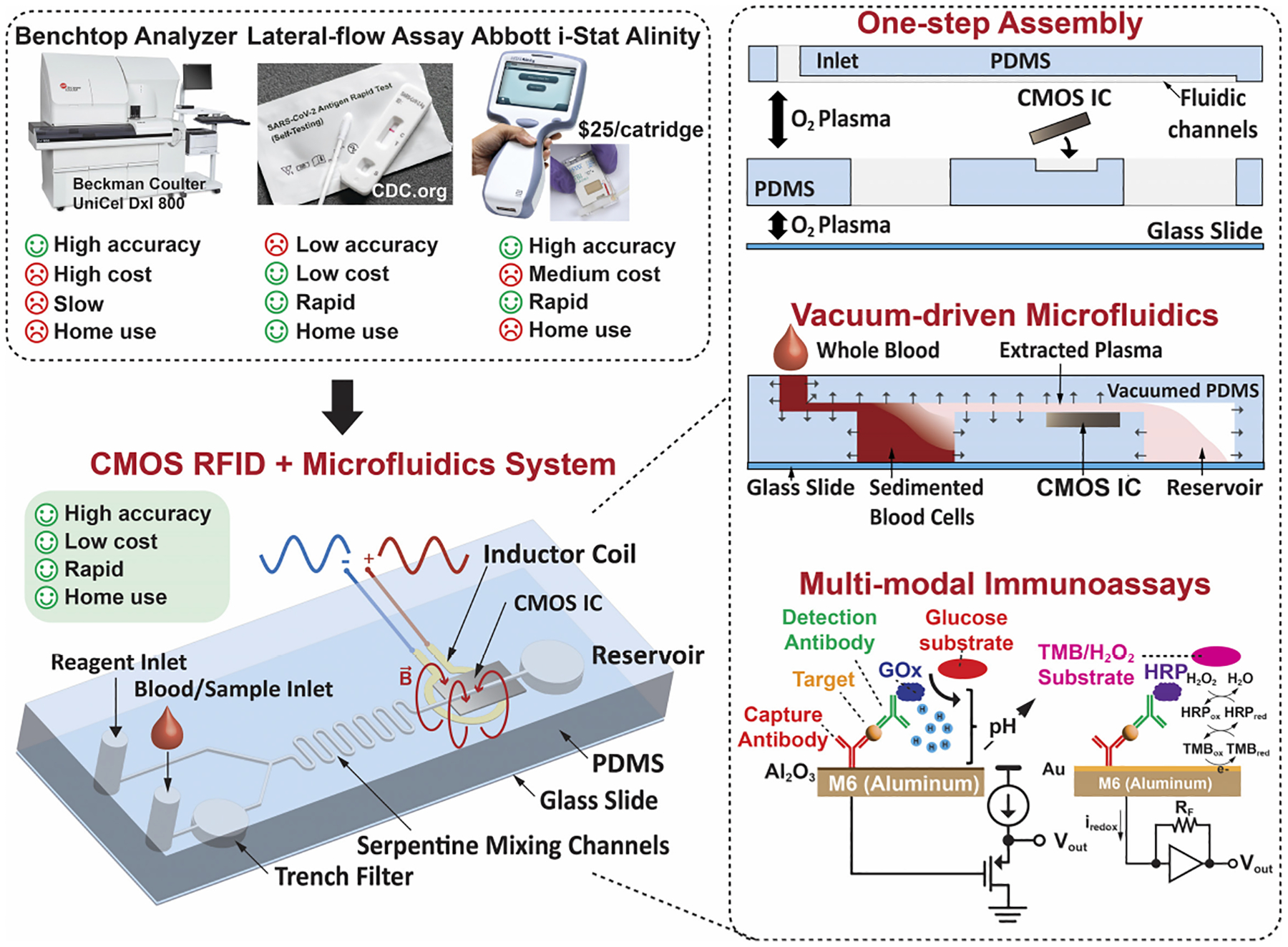

Figure 20.3.1:
Figure 20.3.1:
The RFID-inspired CMOS/microfluidics system enables one-step assembly and integration with vacuum microfluidics while supporting multi-modal immunoassays.

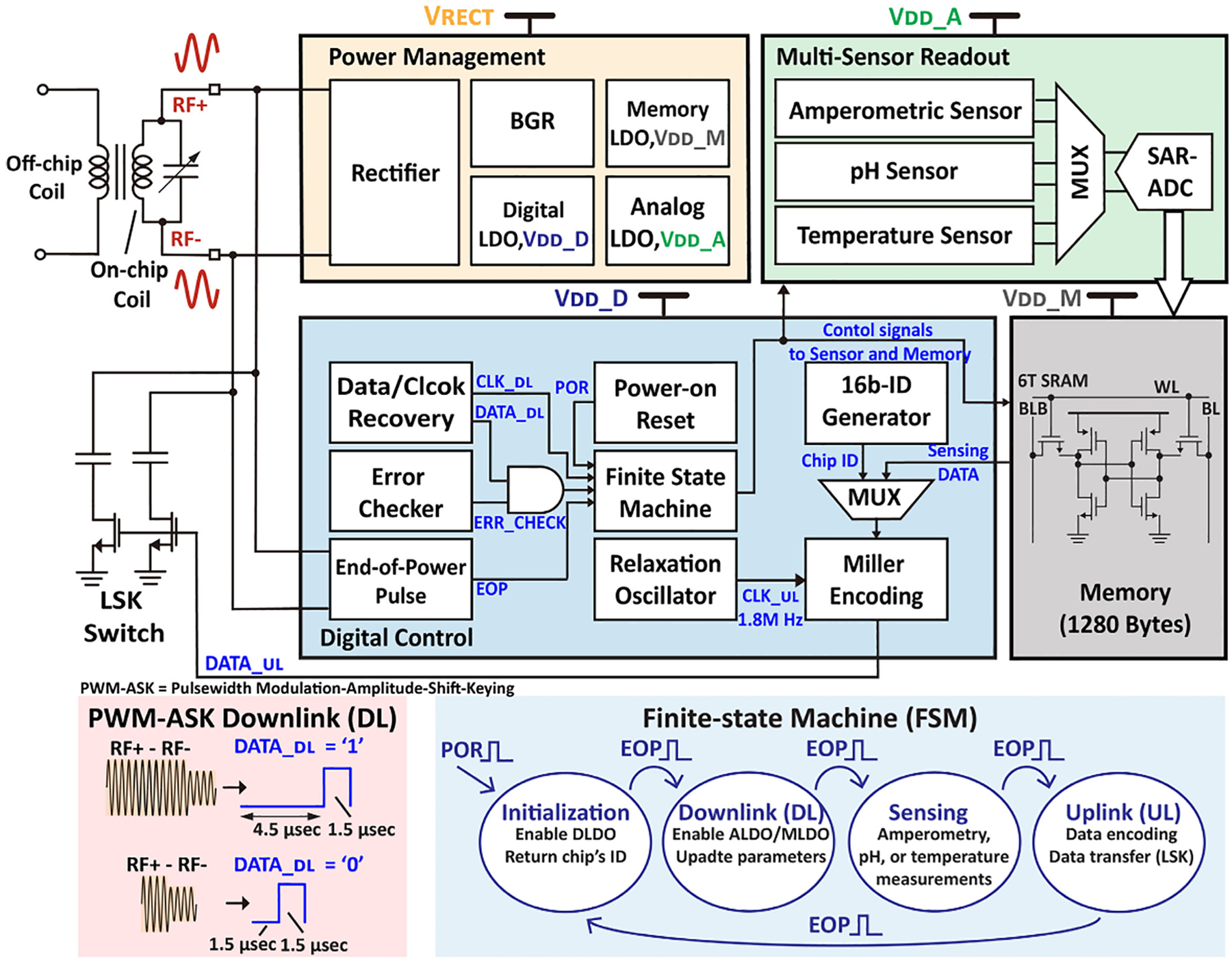

Figure 20.3.2:
Figure 20.3.2:
System block diagram of the wireless bio-analyzer.

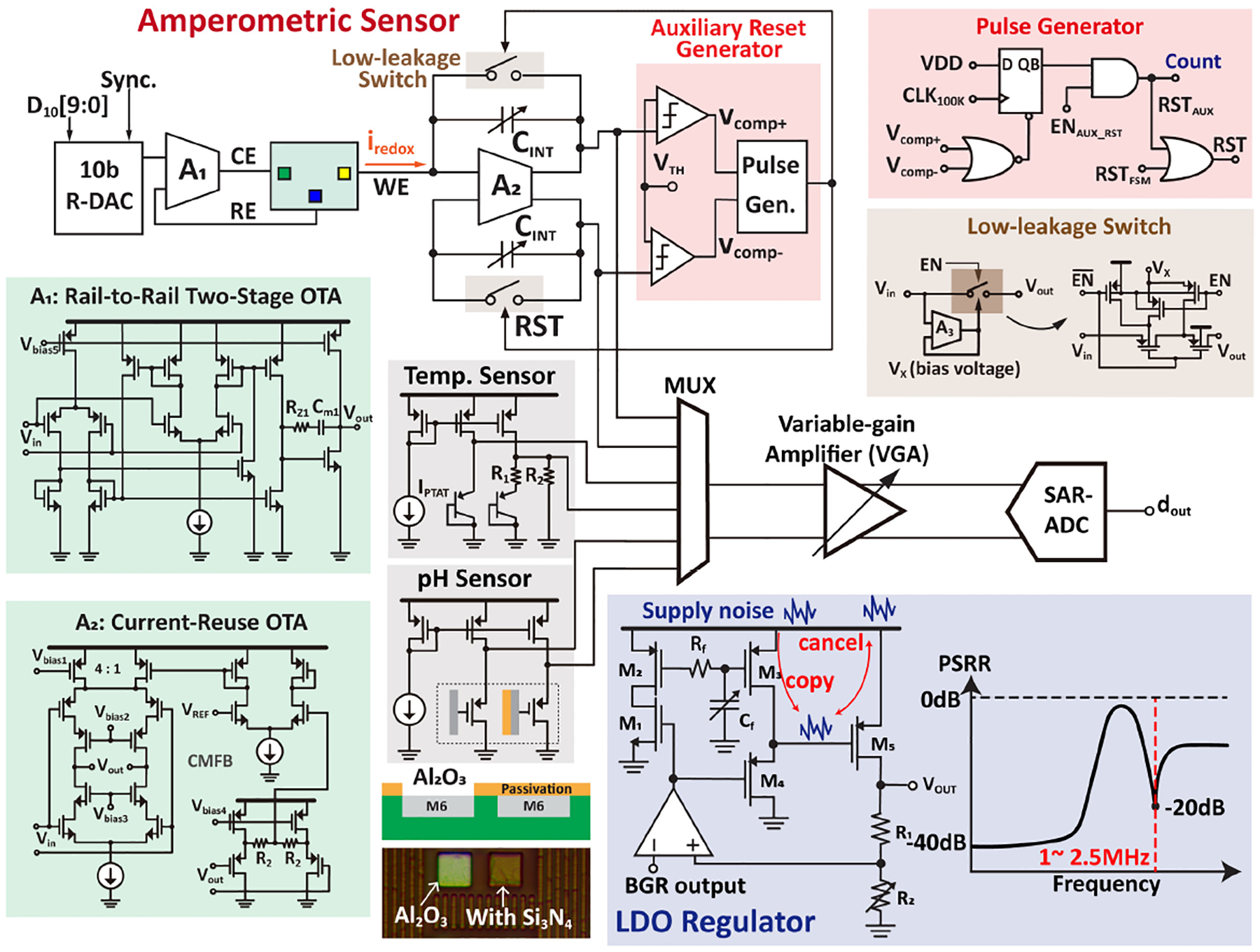

Figure 20.3.3:
Figure 20.3.3:
The schematics of the amperometric, temperature, and pH sensors. Signal-folding is introduced in the current readout to increase the dynamic range. A feedforward path in the LDO regulator introduces a notch in the PSRR response.

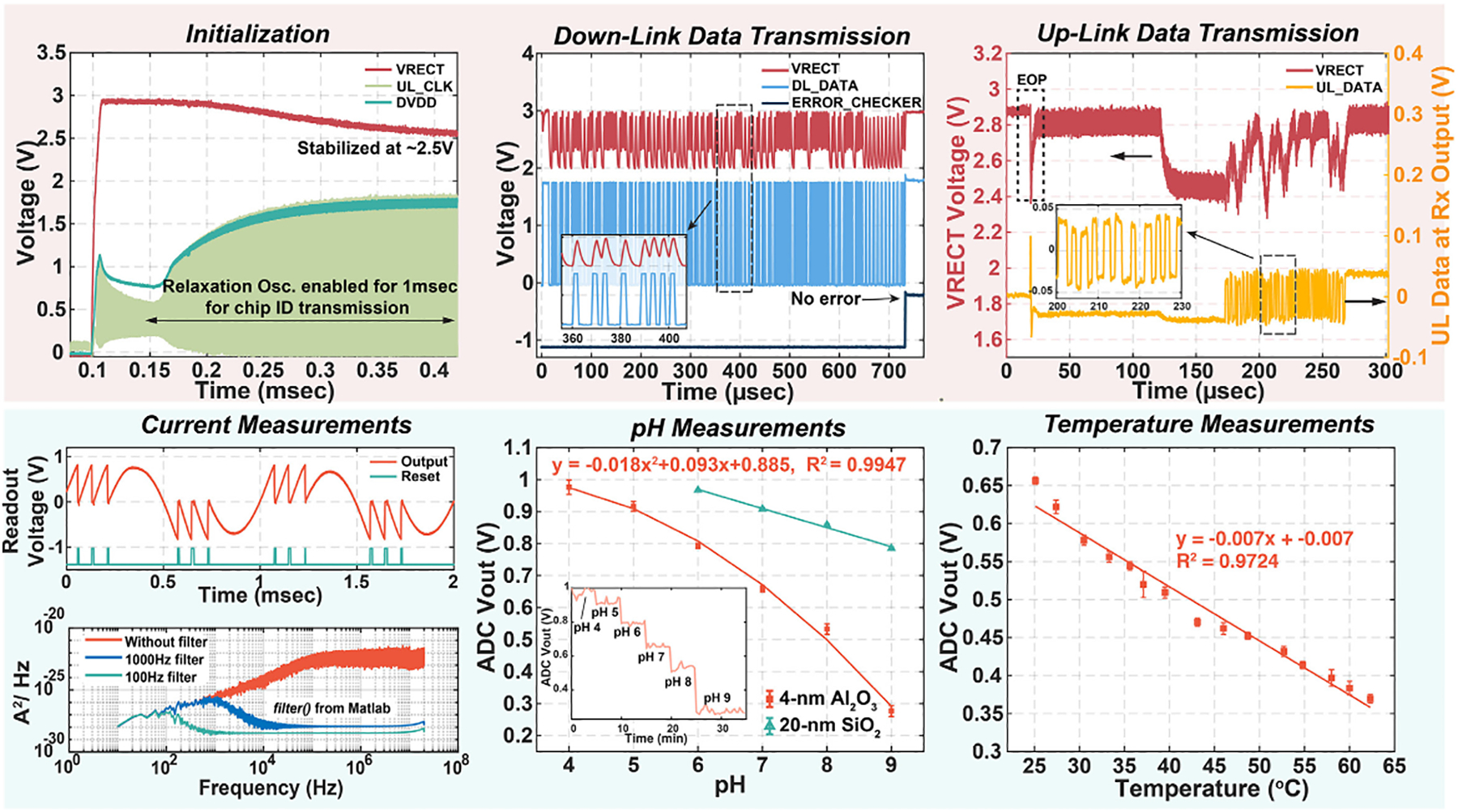

Figure 20.3.4:
Figure 20.3.4:
Demonstration of wireless bio-analyzer operation in three different modes and the measurements of the current-readout frontend and the pH/temperature sensors.

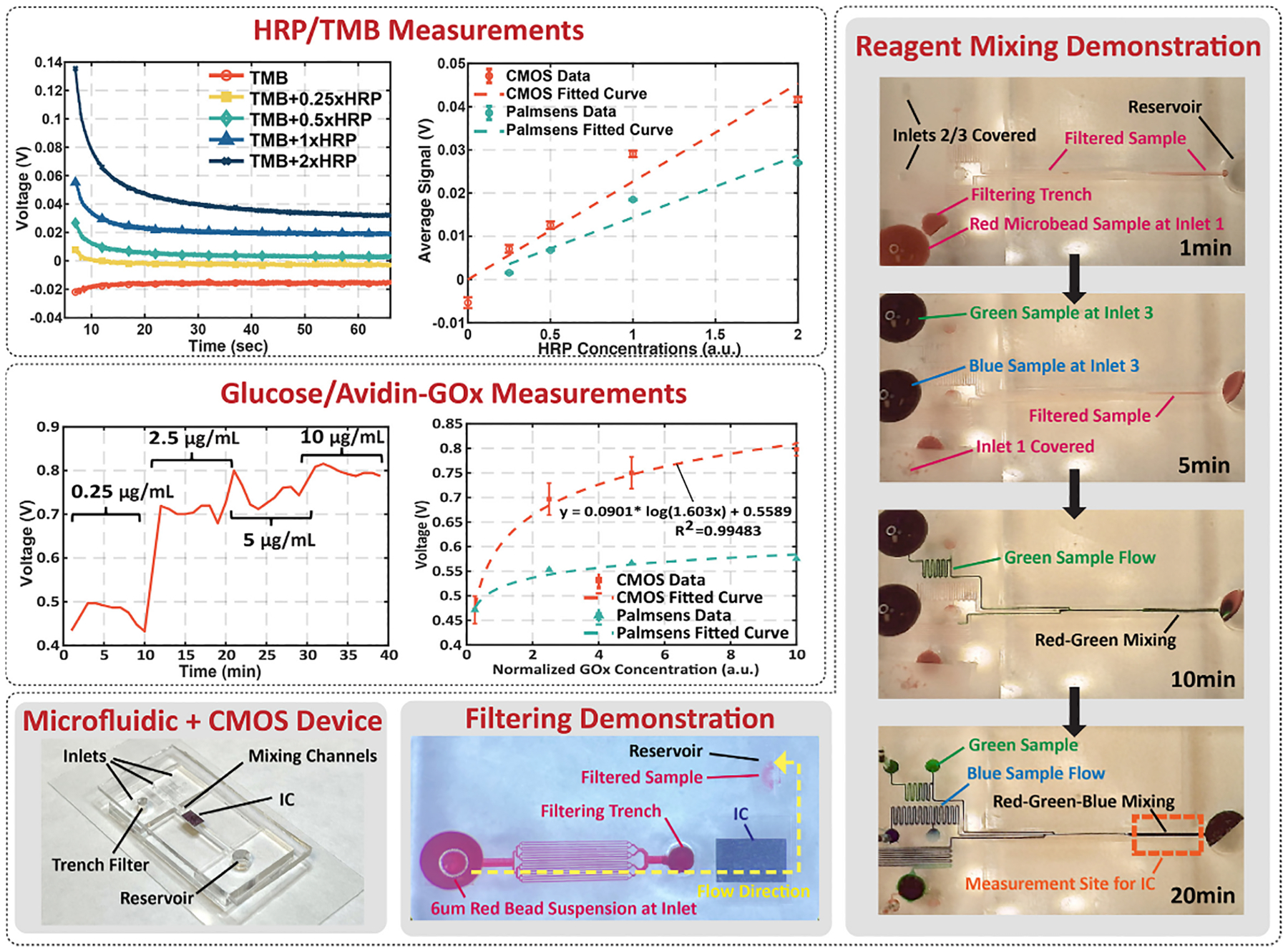

Figure 20.3.5:
Figure 20.3.5:
The bioanalytical results of HRP/TMB and glucose/avidin-GOx reactions and the illustrations of an assembled device, cell filtration function, and sequential injection of samples and reagents with vacuum propulsion in action.

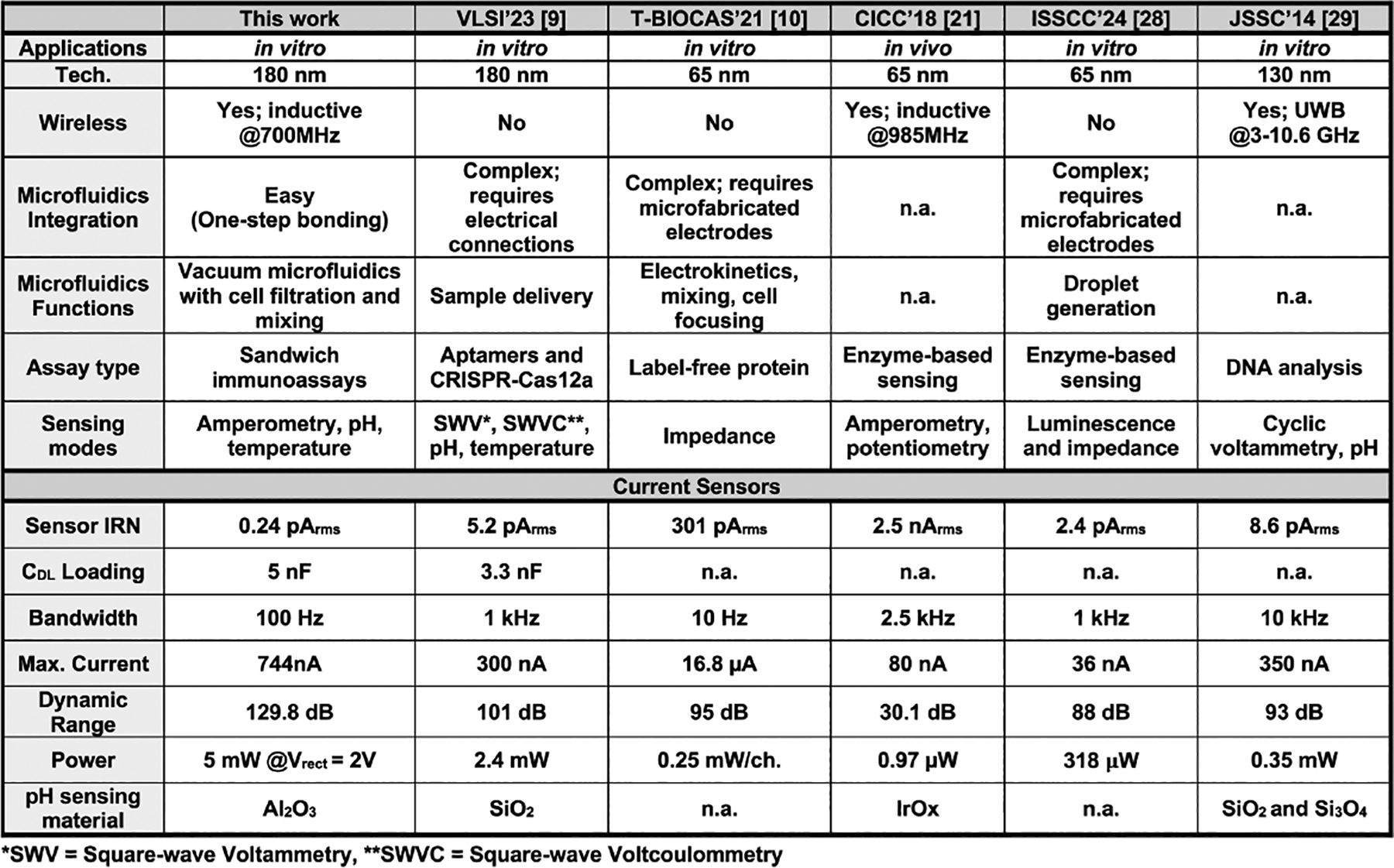

Figure 20.3.6:
Figure 20.3.6:
The comparison table.

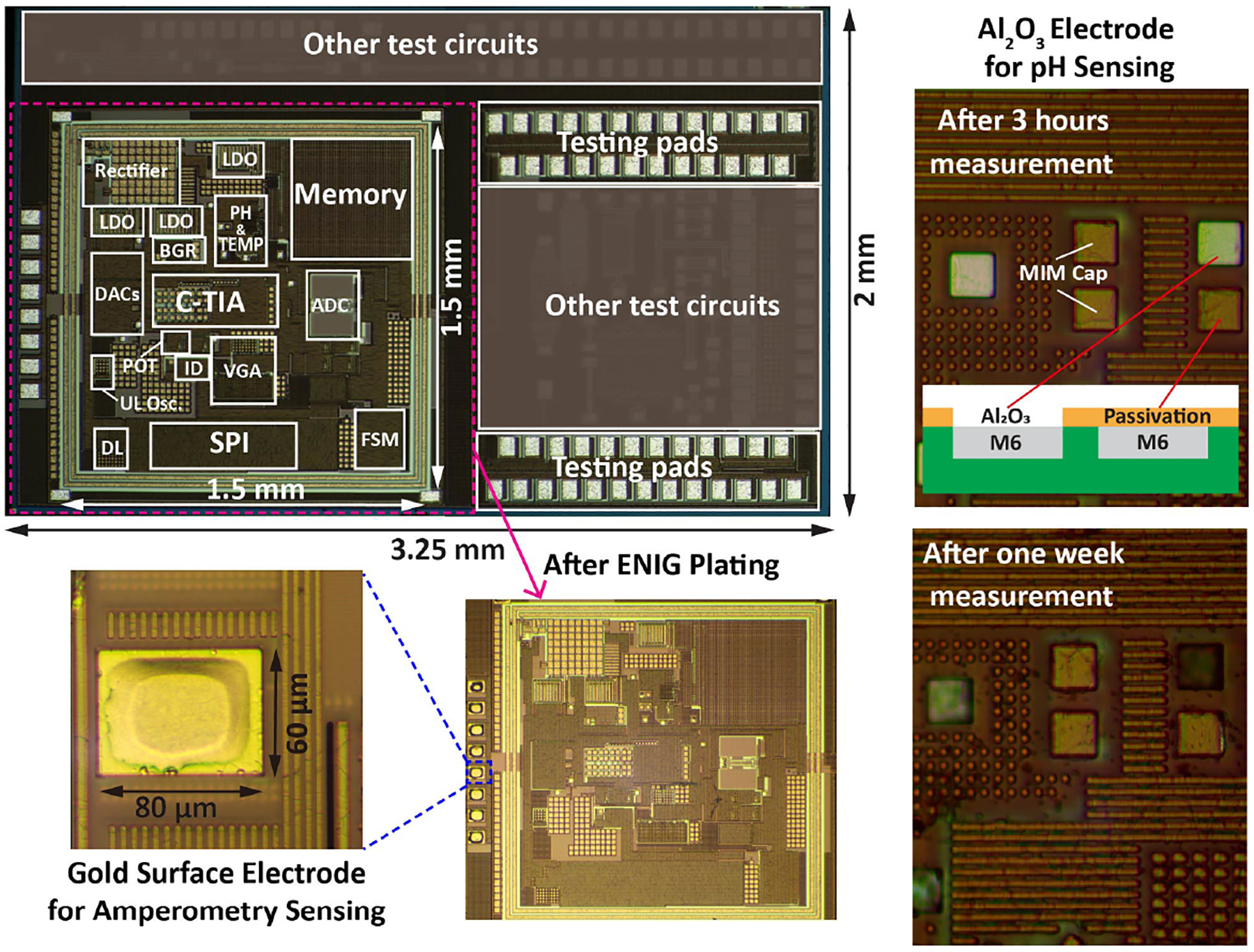

Figure 20.3.7:
Figure 20.3.7:
The die micrograph, the ENIG-plated electrodes, and the states of the pH sensing membranes at different durations.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Wang P and Kricka LJ, “Current and Emerging Trends in Point-of-Care Technology and Strategies for Clinical Validation and Implementation,” Clinical Chemistry, vol. 64, no. 10, pp. 1439–1452, Oct. 2018, doi: 10.1373/clinchem.2018.287052. - DOI - PubMed
    1. Burrow DT et al., “Engineering innovative interfaces for point-of-care diagnostics,” Current Opinion in Colloid & Interface Science, vol. 66, p. 101718, Aug. 2023, doi: 10.1016/j.cocis.2023.101718. - DOI - PMC - PubMed
    1. Koczula KM and Gallotta A, “Lateral flow assays,” Essays in Biochemistry, vol. 60, no. 1, pp. 111–120, Jun. 2016, doi:10.1042/EBC20150012. - DOI - PMC - PubMed
    1. Dey MK et al., “New technologies and reagents in lateral flow assay (LFA) designs for enhancing accuracy and sensitivity,” Anal. Methods, vol. 15, no. 35, pp. 4351–4376, 2023, doi: “10.1039/D3AY00844D. - DOI - PubMed
    1. Larcher R et al., “Analytical Performances of the Novel i-STAT Alinity Point-of-Care Analyzer,” Diagnostics, vol. 13, no. 2, p. 297, Jan. 2023, doi: 10.3390/diagnostics13020297. - DOI - PMC - PubMed
