Two-Stage CD8+ CAR T-Cell Differentiation in Patients with Large B-Cell Lymphoma

Abstract

Chimeric antigen receptor (CAR) T-cell therapy has expanded therapeutic options for patients with diffuse large B-cell lymphoma (DLBCL). However, progress in improving clinical outcomes has been limited by an incomplete understanding of CAR T-cell differentiation in patients. To comprehensively investigate CAR T-cell differentiation in vivo, we performed single-cell, multimodal, and longitudinal analyses of CD28-costimulated CAR T cells from infusion product and peripheral blood (day 8-28) of patients with DLBCL who were successfully treated with axicabtagene ciloleucel. Here, we show that CD8⁺ CAR T cells undergo two distinct waves of clonal expansion. The first wave is dominated by CAR T cells with an exhausted-like effector memory phenotype during the peak expansion period (day 8-14). The second wave is dominated by CAR T cells with a terminal effector phenotype during the post-peak persistence period (day 21-28). Importantly, the two waves have distinct ontogeny and are biologically uncoupled. Furthermore, lineage tracing analysis via each CAR T cell's endogenous TCR clonotype demonstrates that the two waves originate from different effector precursors in the infusion product. Precursors of the first wave exhibit more effector-like signatures, whereas precursors of the second wave exhibit more stem-like signatures. These findings suggest that pre-infusion heterogeneity mediates the two waves of in vivo clonal expansion. Our findings provide evidence against the intuitive idea that the post-peak contraction in CAR abundance is solely apoptosis or extravasation of short-lived CAR T cells from peak expansion. Rather, our findings demonstrate that CAR T-cell expansion and persistence are mediated by clonally, phenotypically, and ontogenically distinct CAR T-cell populations that serve complementary clinical purposes.

Keywords: CAR T-cell differentiation; CD28-costimulated CAR; axicabtagene ciloleucel; chimeric antigen receptor (CAR); large B-cell lymphoma; two-stage differentiation.

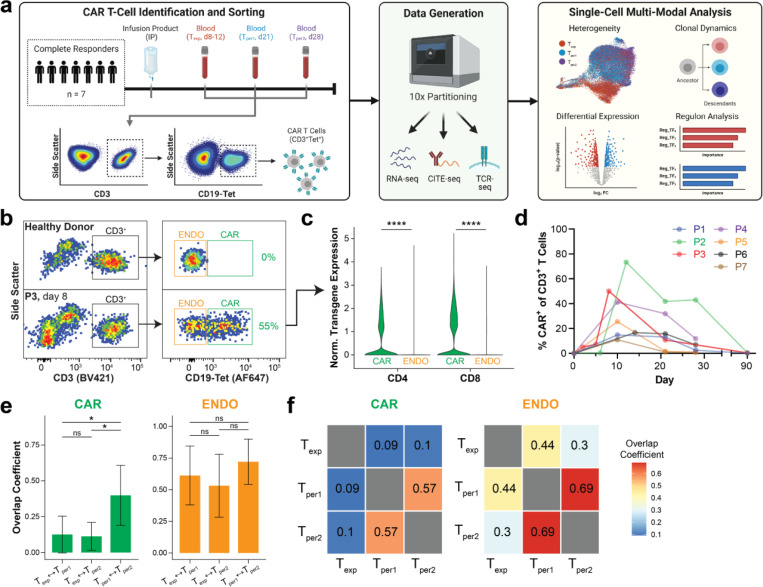

Figure 1.. CD8⁺ CAR T cells from complete responders undergo a clonotypic shift in vivo.

(a) Schematic depicting sorting strategy, data generation, and single-cell multi-modal analysis of CAR T cells in peripheral blood from seven CAR T-cell therapy patients (P1–7) who exhibited complete responses with axicabtagene ciloleucel. (b) Representative flow plots depicting anti-CD3 and CD19 antigen-tetramer staining of peripheral blood mononuclear cells from P3 versus a healthy donor. CD3⁺Tet⁺ (“CAR”) and CD3⁺Tet⁻ (“ENDO”) patient cells were sorted from the indicated gates. (c) Violin plots depicting normalized CAR transgene mRNA expression of sorted CAR and ENDO T cells, split by CD4⁺ (left) and CD8⁺ (right) subsets. Expression levels were compared by Wilcoxon Rank-Sum test, whereby **** indicates p<0.0001. (d) Line plots depicting expansion and contraction of peripheral blood CAR abundance over the course of therapy. (e-f) Bar graphs and heatmaps depicting overlap coefficients for TCR clonotypes comparing CAR (left) and ENDO (right) repertoires between T_exp, T_per1, and T_per2. Overlap coefficients were compared by t-test, whereby * indicates p<0.05 and ns indicates not significant.

Figure 2.. Phenotypic heterogeneity of peripheral blood CD8⁺ and CD4⁺ CAR T cells.

(a, e) UMAPs depicting single-cell transcriptomes of CD8⁺ (a) and CD4⁺ (e) CAR T cells colored by cell cluster. Inset depicts distribution of transcriptomes across timepoints. (b, f) Violin plots depicting normalized expression levels of key genes and proteins for annotating and phenotyping CD8⁺ (b) and CD4⁺ (f) CAR T cells. For extended versions, see figure S5a and S6a. (c, g) Stacked bar graphs depicting proportions of each CD8⁺ (c) and CD4⁺ (g) CAR T-cell phenotype at different timepoints. (d, h) Boxplots depicting proportion of CD8⁺ (d) and CD4⁺ (h) CAR T cells of a given phenotype at different timepoints. Each dot represents a measurement from a single patient. Proportions are compared between timepoints by Wilcoxon Rank-Sum test, whereby *** indicates p<0.001, ** indicates p<0.01, * indicates p<0.05, and ns indicates not significant. Abbreviations: CM, central memory; EM, effector memory; TE, terminal effector; Mem, memory; ISG, interferon stimulated genes; Th1, type 1 helper-like

Figure 3.. Integration of clonotypic and phenotypic shifts supports a two-stage differentiation model.

All figure panels are based on the clonotype-phenotype linked dataset (n=32432 cells). (a) Proportion of CAR T cells with an exhausted-like effector memory (EM-exh), terminal effector (TE), or other phenotypes at each timepoint. (b) Total abundance of all clones that were predominantly EM-exh at T_exp (left), TE at T_per1 (middle), or TE at T_per2 (right), measured across timepoints. A clone’s predominant phenotype was defined as the phenotype with the greatest representation. Each point represents clones from a patient (n=6). Abundance across timepoints were compared by repeated measures ANOVA with post-hoc t-tests. (c) Overlay of clonal abundance dynamics with 95% confidence intervals for clones annotated as EM-exh from T_exp (red) or TE from T_per1/T_per2 (blue). (d) Pie chart depicting proportion of the top 500 clones classified as Wave 1, Wave 2, or Other. (e) Heatmap depicting normalized CAR abundance across timepoints for the top 500 largest clones. (f) Clonal dynamics and phenotypic distribution for the top 500 clones, grouped into Wave 1 and Wave 2. Left panels depict the change in clonal abundance across timepoints, while right panels show the predominant phenotype distribution at each timepoint. (g) Cartoon summarizing the two-stage model for CAR T-cell differentiation. Bulk CAR T-cell expansion and contraction (black line) masks the dynamics of Wave 1 (EM-exh, expansion phase timeframe, red) and Wave 2 (TE, persistence phase timeframe, blue) clones.

Figure 4.. Transcriptional signatures and regulatory networks of CD8⁺ CAR T cells at T_exp and T_per.

(a) Heatmap depicting correlation between pseudo-bulk transcriptome of each sample (patient by timepoint). Samples were ordered along columns and rows by hierarchical clustering. Transcriptomes of day 7 samples from Maus et al. were added for external validation. (b) Stacked bar graph depicting label transfer of timepoint (T_exp or T_per) from this study’s dataset onto single-cell transcriptomes of samples from Maus et al. (c) Gene set enrichment analysis comparing CAR T cells between T_exp and T_per. Gene sets were ordered by direction of upregulation and magnitude of enrichment. (d) Tile map depicting normalized expression of genes (columns) among different cell clusters at T_exp and T_per (rows). Genes were manually grouped into modules according to known functions. (e) Schematic for regulon construction and T_exp versus T_per classification. After transcriptomes were transformed into regulomes, regulon scores were calculated to train a machine-learning model to classify CAR T cells from T_exp and T_per. Key regulons were identified based on importance for the model’s predictions. (f) Bar graph depicting the SHapley Additive exPlanation (SHAP) values for the top eight regulons underlying T_exp and T_per predictions. (g) Tile map depicting normalized signature scores of regulons (columns) among different cell clusters at T_exp and T_per (rows). Regulons were grouped as T_exp-determining (left) and T_per-determining (right). (h, i) Target networks for the top eight T_exp-determining (h) and T_per-determining regulons (i). In each regulatory network, only the top differentially expressed genes are depicted. Each gene is colored according to log₂ fold-change between expression in T_exp (red) and T_per (blue).

Figure 5.. Infusion product precursors of peripheral blood CD8⁺ CAR T cells.

(a) UMAP depicting single-cell transcriptomes of infusion product CD8⁺ T cells colored by cell cluster. (b, c) Density maps (b) and violin plots (c) depicting expression levels of key genes and proteins for annotation and phenotyping. For extended version, see figure S11a–b. (d) Cartoon depicting identification of Pre-T_exp and Pre-T_per using endogenous TCR clonotypes as unique indices. (e) Stacked bar graph depicting proportion distribution of all infusion product (top row) or precursors of peripheral blood CD8⁺ CAR T cells (bottom two rows) among the four cell clusters. (f) Colored UMAPs depicting distribution of Pre-T_exp, Pre-T_per, and non-linked infusion product cells (“IP only”) on the overall UMAP. (g) Tile map depicting normalized expression of genes (columns) among Pre-T_exp, Pre-T_per, and IP only infusion product cells (rows). Genes were manually grouped into modules according to known functions. (h) Violin plots depicting expression levels of select differentially expressed gene sets between Pre-T_exp, Pre-T_per, and IP only infusion product cells. Expression levels were compared by Wilcoxon Rank-Sum test, whereby **** indicates p<0.0001 and ** indicates p<0.01. (i) Gene set enrichment analysis comparing Pre-T_exp and Pre-T_per. Gene sets were ordered according to direction of upregulation and magnitude of enrichment. (j) Enrichment plots for select gene sets differentially expressed between Pre-T_exp and Pre-T_per infusion product cells. (k) Cartoon depicting fates of CD8⁺ CAR T cells over the entire course of therapy, from infusion product precursors to peripheral blood CAR T cells at T_exp and T_per. Abbreviations: NES, normalized enrichment score

Figure 6.. Transcriptomic signatures of exhausted-like EM CD8⁺ CAR T cells.

(a, b) UMAP depicting single-cell transcriptomes of peripheral blood CD8⁺ T cells colored by cell cluster (a) or density contours of each cluster (b). The exhausted-like EM cluster is located on the lower half of the UMAP. (c) Density maps depicting expression levels of major T-cell genes and proteins, divided into categories. In the “receptor” category, proteins are placed directly beneath the corresponding gene. (d) Flow plots for validating transcriptomic data. Plots depict expression of CD39 and CD57 (top row) or CX3CR1 (bottom row) in CD8⁺ CAR T cells at each timepoint from P2. Exhausted-like EM CAR T cells were expected to be T_exp-specific with high CD39 and low CD57/CX3CR1 expression. (e, f) Heat map depicting normalized expression of major gene sets from Wherry et al. (e). Expression of two of the gene sets were depicted as violin plots (f), ordered by decreasing expression level per cluster. Expression levels were compared to that of the cluster with highest expression via Wilcoxon Rank-Sum test, with p-values adjusted for multiple hypotheses testing using the Benjamini-Hochberg method, whereby **** indicates p<0.0001, *** indicates p<0.001. (g) Volcano plot depicting differentially expressed genes between EM and exhausted-like EM CD8⁺ CAR T cells. Genes were colored according to direction of upregulation. (h) Enrichment plots for select gene sets differentially expressed between EM and exhausted-like EM CD8⁺ CAR T cells.
