Fenestration and Bifurcation of the Internal Jugular Vein; Surprises During Head and Neck Surgery

Abstract

Introduction: The internal jugular vein (IJV) is one of the major vessels in the neck and serves as an important landmark for surgeons during head and neck surgery. Anomalies of the IJV are rare and seldom encountered by the surgeons. However, a comprehensive knowledge of these variations is essential for better surgical dissection and to prevent intra-operative mishaps. The variations can be in the forms of bifurcation, trifurcation, duplication, fenestration and posterior tributaries of the IJV. Here we describe three cases of bifurcation and fenestration of the IJV that we encountered in our surgical practice.

Case report: In the first patient, we found an empty fenestration of the right internal jugular vein during a selective neck dissection for tongue carcinoma. The spinal accessory nerve was passing lateral to the IJV above the level of the fenestration. The second patient was operated for a left vagal schwannoma in the neck. During the surgery, we found a bifurcation of the left IJV, and the two tributaries fused just above the left omohyoid muscle. The third patient, a sixty-year-old lady also had a bifurcation of the left IJV. It was found during a modified radical neck dissection for carcinoma ex pleomorphic adenoma of the left parotid gland.

Conclusion: An in-depth knowledge of the anomalies of the internal jugular vein and meticulous evaluation of the pre-operative imaging may help the surgeons in preventing any intra-operative catastrophe during head and neck surgery.

Keywords: Anatomical variation; Bifurcation; Fenestration; Internal jugular vein; Spinal accessory nerve.

Fig 1

A. Empty fenestration of the right internal jugular vein (white arrow). The spinal accessory nerve is passing lateral to the IJV above the level of the fenestration (black arrow). The sternocleido- mastoid (SCM) and digastric (D) muscles are also seen in the surgical field. B. Reconstructed virtual CT scan of the patient showing the empty fenestration of the right internal jugular vein (yellow arrow).

Fig 2

Bifurcation of the left internal jugular vein (white arrow). Both the tributaries fused above the level of the omohyoid forming the main trunk of the internal jugular vein.

Fig 3

A. Bifurcation of the left internal jugular vein (black arrow). Both the branches fuse above the level of the omohyoid muscle to form the main trunk of the IJV. The digastric muscle (D) is seen in the surgical field. B. Reconstructed virtual CT scan of the patient showing bifurcation of the left internal jugular vein (white arrow).

Fig 4

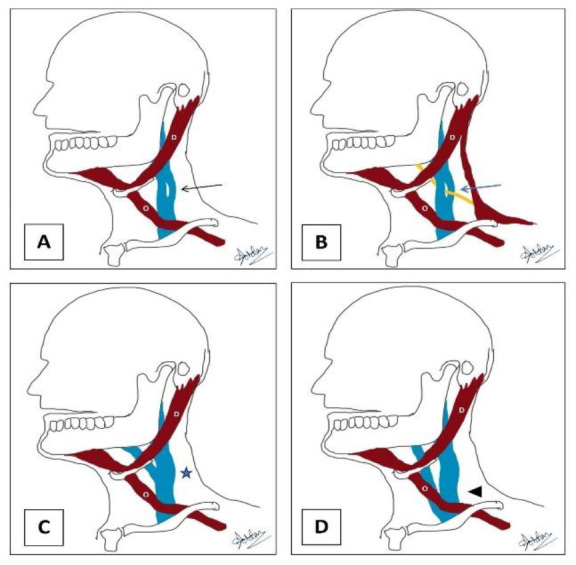

Schematic diagram representing the anatomical variations of the internal jugular vein; A. Empty fenestration of the internal jugular vein (black arrow). B. Fenestration in the internal jugular vein transmitting the spinal accessory nerve through it (blue arrow). C. Bifurcation of the IJV above the level of the omohyoid muscle (O), marked by a blue star. D. Duplication of the IJV below the level of the omohyoid muscle, marked by a black arrowhead.
