Sawfish: improving long-read structural variant discovery and genotyping with local haplotype modeling

Abstract

Motivation: Structural variants (SVs) play an important role in evolutionary and functional genomics but are challenging to characterize. High-accuracy, long-read sequencing can substantially improve SV characterization when coupled with effective calling methods. While state-of-the-art long-read SV callers are highly accurate, further improvements are achievable by systematically modeling local haplotypes during SV discovery and genotyping.

Results: We describe sawfish, an SV caller for mapped high-quality long reads incorporating systematic SV haplotype modeling to improve accuracy and resolution. Assessment against the draft Genome in a Bottle (GIAB) SV benchmark from the T2T-HG002-Q100 diploid assembly shows that sawfish has the highest accuracy among state-of-the-art long-read SV callers across every tested SV size group. Additionally, sawfish maintains the highest accuracy at every tested depth level from 10- to 32-fold coverage, such that other callers required at least 30-fold coverage to match sawfish accuracy at 15-fold coverage. Sawfish also shows the highest accuracy in the GIAB challenging medically relevant genes benchmark, demonstrating improvements in both comprehensive and medically relevant contexts.When joint-genotyping seven samples from CEPH-1463, sawfish has over 9000 more pedigree-concordant calls than other state-of-the-art SV callers, with the highest proportion of concordant SVs (81%). Sawfish's quality model enables selection for an even higher proportion of concordant SVs (88%), while still calling nearly 5000 more pedigree-concordant SVs than other callers. These results demonstrate that sawfish improves on the state-of-the-art for long-read SV calling accuracy across both individual and joint-sample analyses.

Availability and implementation: Sawfish source code, pre-compiled Linux binaries, and documentation are released on GitHub: https://github.com/PacificBiosciences/sawfish.

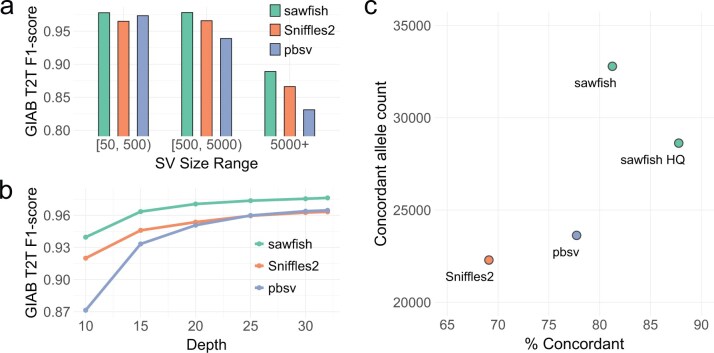

Figure 1.

SV caller accuracy assessment. (a) Assessment of SV caller performance on the HG002 GIAB draft T2T assembly-based benchmark for HiFi WGS data from HG002 at 32-fold coverage. Results are stratified by SV size, showing consistently improved F1-score for sawfish across a range of SV sizes. (b) HG002 SV caller performance assessed as in part (a) but for all SV sizes with depth levels subsampled down to 10-fold coverage, showing improved F1-score for sawfish at all coverage levels. (c) Assessment of SV caller joint-genotyping on samples from CEPH Pedigree 1463 generations 2 and 3. For each SV caller, the number of SVs where genotypes are concordant with the pedigree inheritance pattern across all samples are shown compared to the percentage of concordant SVs. “sawfish HQ” shows sawfish results filtered for genotype quality (GQ) ≥40 in all samples. The results show that sawfish calls thousands more concordant SVs than other SV callers while at the same time calling proportionally more concordant SVs, where the proportion of concordant SVs can be increased to over 87% with modest quality filtration that maintains a very high concordant SV count.
