. 2025 Apr 11;25(1):548.
doi: 10.1186/s12903-025-05893-8.

Correlation between transverse and sagittal dimensions in early stage: a retrospective study between patients treated with clear aligners and untreated patients

Simonetta Meuli  1 , Davide Gentile  2   3 , Daniele Garcovich  4 , Luca Giuliante  2 , Edoardo Staderini  2 , Massimo Cordaro  2
Affiliations

Correlation between transverse and sagittal dimensions in early stage: a retrospective study between patients treated with clear aligners and untreated patients

Simonetta Meuli et al. BMC Oral Health. .

Abstract

Background: The interceptive treatment of Class II malocclusion using clear aligners is still debatable. This retrospective study analyzes the short-term occlusal and cephalometric effects in 40 growing patients with Class II malocclusion.

Methods: The sample was divided into 2 groups: Following the dentoalveolar expansion protocol, the first group was treated with clear aligners (GI). The second group was untreated (GN). Dental arches were scanned before and 1 year after the therapy. Similarly, linear measurements on digital casts and cephalometric ones on lateral X-rays were compared. Maxillary (Lmax), mandibular intermolar length (Lmand), and posterior transverse intermolar discrepancy (DIT) were evaluated. The distance between the mesiobuccal cusp of the upper first molar and the buccal groove of the first lower molar was considered at both sides (Cdx and Csx). The statistical descriptive analysis of T0 and T1 values was performed using a paired t-test, setting a p value < 0.05.

Results: A greater improvement in molar and skeletal Class II parameters in the GI group compared to the GN group was detected. Specifically, in GI, Lmax improved by 3.3 mm, Lmand by 1.1 mm, and DIT improved from - 2.1 mm to 0.1 mm, while Cdx and Csx decreased by 1.28 mm and 1.13 mm, respectively. In contrast, the GN group showed smaller improvements, with Lmax increasing by 1 mm, Lmand by 0.8 mm, DIT improving from - 2 mm to -1.8 mm, and both Cdx and Csx exhibiting slight increases of 0.04 mm and 0.09 mm, respectively. No statistically significant differences were observed regarding divergence or the correlation between skeletal and dental measurements.

Conclusions: Dentoalveolar expansion using Invisalign First appears effective and predictable with better outcomes than the control group. An improvement of skeletal Class II is detected in the treated group with dental improvements on maxillary arch.

Keywords: Clear aligners; Digital orthodontics; Growing patients; Interceptive therapy.

PubMed Disclaimer

Conflict of interest statement

Declarations. Human ethics and consent to participate: The study was conducted according to the guidelines of the Declaration of Helsinki and received approval from the Ethics Committee on Human Research of the European University of Valencia, Spain (reference number: CI/2023 − 358). The ethical approval was obtained before accessing retrospective data. Informed consent to anonymized data release was obtained from all legal guardians of the patients included in this study. Consent for publication: Not applicable. Disclaimer/Publisher’s note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. Competing interests: The authors declare no competing interests.

Figures

Fig. 1
Fig. 1

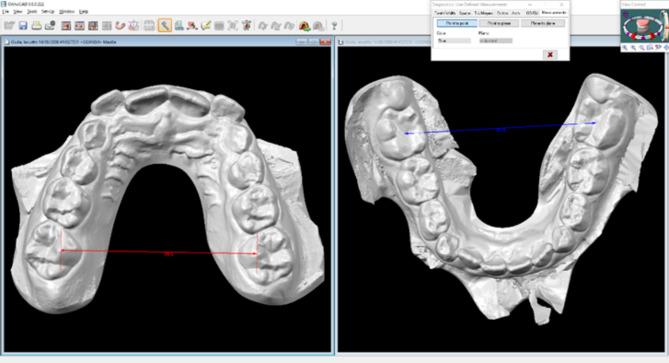

Example of digital model and use of measurement systems, within OrthoCad® software, in occlusal view
Fig. 2
Fig. 2
Example of digital model and use of measurement systems, within OrthoCad® software, in right side view
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Alarashi M, Franchi L, Marinelli A, Defraia E. Morphometric analysis of the transverse dentoskeletal features of class II malocclusion in the mixed dentition. Angle Orthod. 2003;73(1):21–5. - PubMed
    1. Tulloch JFC, Proffit WR, Phillips C. Influences on the outcome of early treatment for class II malocclusion. Am J Orthod Dentofac Orthop. 1997;111:533–42. - PubMed
    1. Kopecky GR, Fishman LS. Timing of cervical headgear treatment based on skeletal maturation. Am J Orthod Dentofac Orthop. 1993;104:162–9. - PubMed
    1. Bishara SE, Jakobsen JR, Vorhies B, Bayati P. Changes in dentofacial structures in untreated class II division 1 and normal subjects: a longitudinal study. Angle Orthod. 1997;67:55–66. - PubMed
    1. Bishara SE. Mandibular changes in persons with untreated and treated class II division 1 malocclusion. Am J Orthod Dentofac Orthop. 1998;113:661–73. - PubMed
