Measuring the fitted filtration efficiency of cloth masks, medical masks and respirators

Abstract

Importance: Masks reduce transmission of SARS-CoV2 and other respiratory pathogens. Comparative studies of the fitted filtration efficiency of different types of masks are scarce.

Objective: To describe the fitted filtration efficiency against small aerosols (0.02-1 µm) of medical and non-medical masks and respirators when worn, and how this is affected by user modifications (hacks) and by overmasking with a cloth mask.

Design: We tested a 2-layer woven-cotton cloth mask of a consensus design, ASTM-certified level 1 and level 3 masks, a non-certified mask, KF94s, KN95s, an N95 and a CaN99.

Setting: Closed rooms with ambient particles supplemented by salt particles.

Participants: 12 total participants; 21-55 years, 68% female, 77% white, NIOSH 1-10.

Main outcome and measure: Using standard methods and a PortaCount 8038, we counted 0.02-1 µm particles inside and outside masks and respirators, expressing results as the percentage filtered by each mask. We also studied level 1 and level 3 masks with earguards, scrub caps, the knot-and-tuck method, and the effects of braces or overmasking with a cloth mask.

Results: Filtration efficiency for the cloth mask was 47-55%, for level 1 masks 52-60%, for level 3 masks 60-77%. A non-certified KN95 look-alike, two KF94s, and three KN95s filtered 57-77%, and the N95 and CaN99 97-98% without fit testing. External braces and overmasking with a well-fitting cloth mask increased filtration, but earguards, scrub caps, and the knot-and-tuck method did not.

Limitations: Limited number of masks of each type sampled; no adjustment for multiple comparisons.

Conclusions and relevance: Well-fitting 2-layer cotton masks filter in the same range as level 1 masks when worn: around 50%. Level 3 masks and KN95s/KF94s filter around 70%. Over a level 1 mask, external braces or overmasking with a cloth-mask-on-ties produced filtration around 90%. Only N95s and CaN99s, both of which have overhead elastic, performed close to the occupational health and safety standards for fit tested PPE (>99%), filtering at 97-99% when worn, without formal fit testing. These findings inform public health messaging about relative protection from aerosols afforded by different mask types and explain the effectiveness of cloth masks observed in numerous epidemiologic studies conducted in the first year of the pandemic. A plain language summary of these findings is available at https://maskevidence.org/masks-compared.

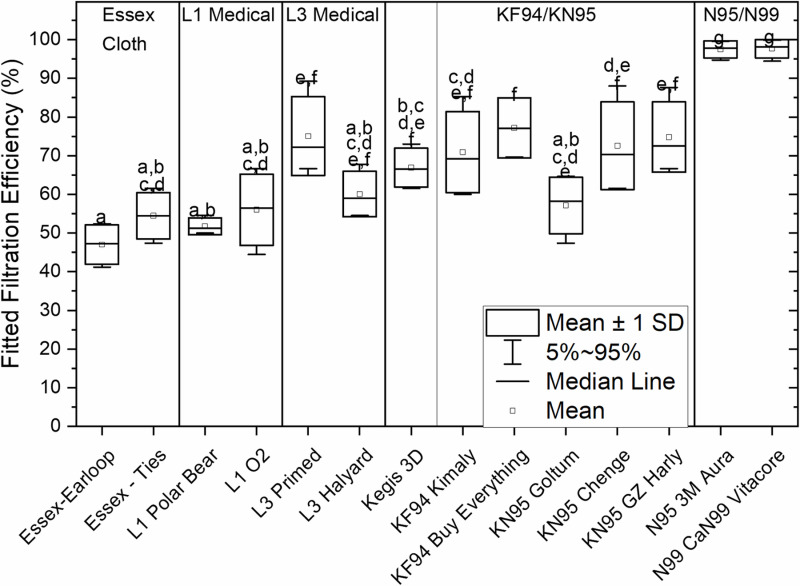

Fig 1. Fitted filtration efficiency for cloth (2), L1 (2) and L3 (2) certified medical masks, a non-certified Kegis 3D mask (purchased as a KN95 look-alike), KF94s (2), KN95s (3), and for respirators, N95 and CaN99.

N = 4. Bars present mean and standard deviation (SD) and whiskers showing 5 - 95 confidence values. Data were normal by Lillefor’s test. Letters above whiskers indicate statistical groupings according to Tukey’s post hoc comparisons. A shared letter for two mask types signifies no difference between those types; absence of a shared letter signifies a significant difference p < 0.05.

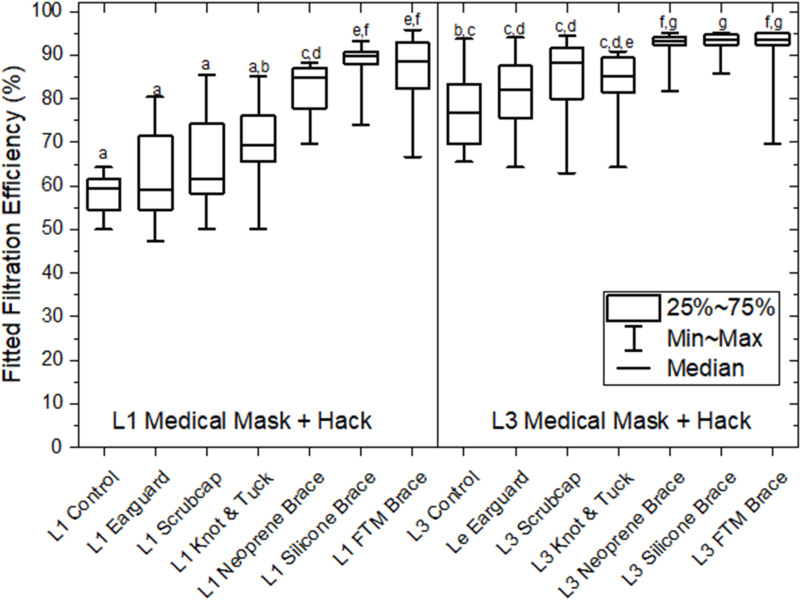

Fig 2. Box and whisker plot showing the effect of minor modifications, or hacks, to a certified level 1 Polar Bear mask and to a certified level 3 Halyard mask.

10 participants, 1 replicate. Data were not normal by Lillefor’s test. Kruskal-Wallis with Conover-Inman post hoc comparisons. Boxes show interquartile range and whiskers minimum and maximum. Letters denote groups which are statistically similar and dissimilar: a shared letter for two mask types signifies no difference between those types; absence of a shared letter signifies a significant difference p < 0.05. Neoprene brace made using downloadable, public domain, template from Fix The Mask and recommended materials; silicone brace designed at McMaster University; FTM brace - proprietary Fix-The-Mask brace. L1 and L3 controls were retested on these participants as part of this panel; estimates differ slightly from those in Fig 1.

Fig 3. Effects of overmasking with Essex masks on earloops and on overhead ties on fitted filtration efficiency.

The graph shows (left) the Essex mask on earloops (Earloop) and on ties (Ties) worn alone, followed by Essex-on-earloop with a second Essex-on-earloop as an overmask (Earloop-Earloop), and by Essex-on-earloop with an Essex-on-ties as an overmask (Earloop-Ties). The centre panel shows the level 1 certified Polar Bear mask worn alone (L1), with an Essex-on-earloop as an overmask (L1- Earloop), and with an Essex-on-ties as an overmask (L1-Ties). The right panel shows the level 3 certified Halyard mask worn alone (L3), with an Essex-on-earloop as an overmask (L3-Earloop), and with an Essex-on-ties as an overmask (L3-Ties). 6 participants, 3 replicates. Data were normal by Lillefor’s test. ANOVA with Tukey’s honestly significant difference for post hoc comparisons was used. Mean and median; boxes show one standard deviation (SD); whiskers show 95% confidence intervals. Letters denote groups which are statistically similar and dissimilar: a shared letter for two mask types signifies no difference between those types; absence of a shared letter signifies a difference. Earloop: Essex mask worn on elastic earloops. Ties: Essex mask worn on overhead cloth ties. L1 level 1; L3 level 3.

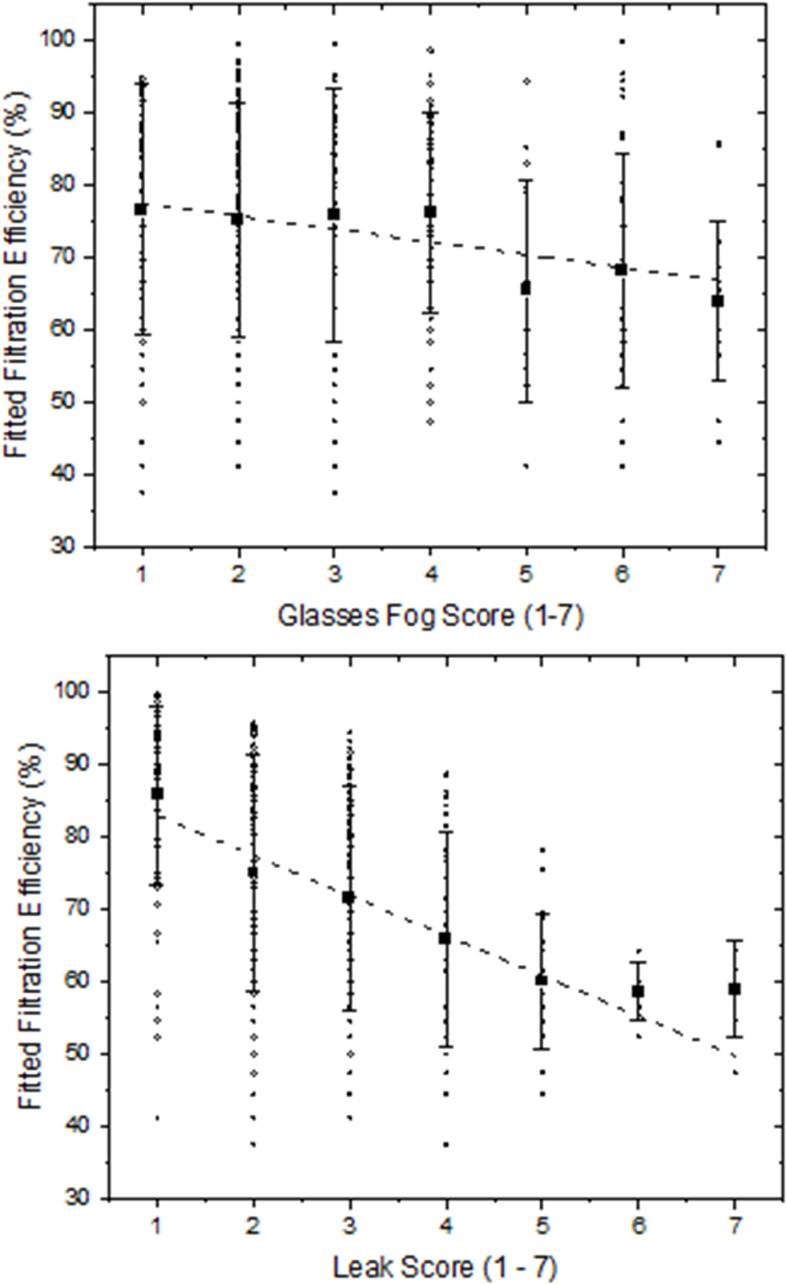

Fig 4. Relationship between fitted filtration efficiency and glasses fog, and between fitted filtration efficiency and subjective leak.

Glasses fog and subjective leak were assessed before fitted filtration efficiency was measured. Top graphic fitted filtration efficiency against glasses fog score across data generated for each sub-study. Open circles are raw data, squares are means and whiskers are standard deviations for each score category. Dashed line is the linear regression fit: FFE =  -1.78 ± 0.48 * Glasses Fog Score +  79.3 ± 1.7; R² =  0.04; p < 0.001, df =  338. Bottom graphic presents data against leak score. Dashed line regression fit: FFE =  -5.5 ± 0.6 * Leak Score +  88.5 ± 1.7; R² = 0.22; p < 0.001, df = 338.
