A Novel Role for Coilin in Vertebrate Innate Immunity

Abstract

Coilin is a protein localized in the nucleus, where it plays a role in the assembly of the Cajal Body and is involved in ribonucleoprotein biogenesis. Our recent research has uncovered new roles for coilin, including its involvement in producing microRNAs and in modifying other proteins through phosphorylation and SUMOylation. We also proposed that coilin could respond to stress signals. In plants, coilin has been shown to help regulate immune genes and activate defense mechanisms, especially in response to stress. In this study, we used two vertebrate models to study coilin function: a human primary foreskin fibroblast cell line deficient in coilin through RNA interference and a newly created zebrafish line with a mutation in the coilin gene generated by CRISPR-Cas9. Transcriptomic analysis in these two models of coilin deficiency revealed dysregulation of immunity-related genes in both species. To phenotypically validate the transcriptomic results, we challenged zebrafish coilin mutants with lipopolysaccharide (LPS), which triggers an innate immune response, and identified an attenuated response to LPS in vivo in the zebrafish coilin mutants. Our results support a vital novel function for coilin in vertebrates in regulating the expression of immunity-related genes. Moreover, these findings could lead to more research on how coilin regulates innate immunity in animals and humans.

FIGURE 1

Human coilin positively contributes to the expression of innate immunity genes in HFF cells. (A) Heatmap of the top 30 differentially expressed genes for all KD and treatment (DMSO or LPS) conditions. Control KD indicated as N, coilin 2 KD indicated as I2, coilin A KD indicated as IA, and WRAP53 KD indicated as W. (B) GO analysis for the top differential expressed terms between control versus coilin 2 siRNA treated with DMSO. The red arrows denote terms related to the immune response. Peaks to the left of zero represent decreased expression whereas peaks to the right of zero are induced compared to control. (C) GO cluster analysis of differentially expressed immunity related GO terms for the control versus coilin 2 siRNA treated with DMSO comparison. (D) GO analysis for the top differential terms between control siRNA treated with LPS versus coilin 2 siRNA treated with LPS. The red arrows denote terms related to the innate immune response. (E) GO cluster analysis of differentially expressed genes between control siRNA treated with LPS and coilin 2 siRNA treated with LPS showing prominent clusters for innate immunity. (F) GO analysis for the top differential terms between control siRNA treated with LPS versus coilin A siRNA treated with LPS. The red arrows denote terms related to the innate immune response. (G) GO analysis for the top differential terms between control siRNA treated with LPS versus WRAP53 siRNA treated with LPS.

FIGURE 2

Coilin contributes to the innate immune response independent of splicing activity in HFF cells. (A) rMATS analysis for the control (N) versus coilin 2 (I2) KD treated with DMSO comparison. Five differentially alternatively spliced events were calculated with a false discovery rate (FDR) of 0.05. Compared to control (N), coilin (I2) KD increases all DAS classes. (B) An overlay of DAS genes with DEG genes for DMSO treated control (N) versus coilin (I2) KD. (C) DAS GO cluster analysis showing the top differentially expressed terms for the DMSO treated control (N) versus coilin (I2) KD comparison. (D) rMATS analysis for the control (N) versus coilin 2 (I2) KD treated with LPS comparison. Coilin (I2) KD increases all DAS classes compared to control (N). (E) An overlay of DAS genes with DEG genes for LPS treated control (N) versus coilin (I2) KD comparison. (F) DAS GO cluster analysis showing the top differentially expressed terms for the LPS treated control (N) versus coilin (I2) KD comparison.

FIGURE 3

Coilin reduction alters the expression of miRNAs that contribute to the innate immune response. Small RNA seq analysis was conducted and miRNAs significantly dysregulated (p ≤ 0.1) in both coilin 2 and coilin A siRNA conditions compared to control (N) siRNA, treated with DMSO are shown. (A, C) Venn diagram showing the number of differentially expressed miRNA genes across coilin 2 (I2) and coilin A (IA) KDs under DMSO or LPS treatment compared to control (N) KD. (B, D) Tables of subsets of miRNAs found to be dysregulated under both coilin I2 and coilin IA KDs with DMSO or LPS treatment compared to control (N) KD. Immunity‐related miRNAs that are upregulated (green) or downregulated (red) in both coilin KD conditions compared to control siRNA are indicated by plus sign (+).

FIGURE 4

Generation of coilin N‐terminal (ΔN) mutants in zebrafish using CRISPR/Cas9. (A) Schematic of coilin's DNA and amino acid sequences showing the typical translational start site (black arrow), the PAM and sgRNA target sequences used to engineer CRISPR/Cas9 mutagenesis (red and green bars), and the alternative translation start (purple double bar) site lacking a Kozak sequence (red dash). The location of a SNP (A/T) corresponding to the N base of the NGG PAM sequence is shown. (B) Illustration of the development of homozygous COIL ΔN mutants. (C) Chromatogram illustrating DNA sequencing results which display the four base pair deletion characterizing the ΔN1 mutation (forward direction) and the eight‐base pair deletion charactering the ΔN2 mutation (reverse direction). The 4 base pair deletion strain has a T at the SNP position and the 8 base pair deletion stain has an A (T when using reverse primer) at this position. Red dash boxes are indicating the deleted sequences and lighting bolts are indicating the site of double‐strand break. (D) Histogram displaying the qPCR results of coilin mRNA expression in COIL ΔN1 and ΔN2 fish relative to wild‐type (WT) zebrafish. Data represents 3 biological replicates with 2 technical repeats for a total N = 6. Error bars represent SD and black dots represent individual data points. ****p < 0.0001 for comparisons to WT. (E) Western blot visualizing coilin protein expression in the testis of COIL ΔN1 and ΔN2 fish relative to WT zebrafish and quantification (histogram). ***p < 0.001.

FIGURE 5

Coilin N‐terminal mutation impairs the activation of immunity‐related pathways. (A) Heatmap of the top 30 differentially expressed genes for WT and coilin mutant (ΔN1 and ΔN2) embryos injected with PBS (blue horizontal bar) or LPS (green horizontal bar). (B, D, F) GO enrichment analysis illustrating the top general pathways altered under PBS versus LPS comparisons in WT and mutants. (C, E, G) REVIGO analysis illustrating the top immunity‐related pathways altered under PBS versus LPS comparisons in WT and mutants.

FIGURE 6

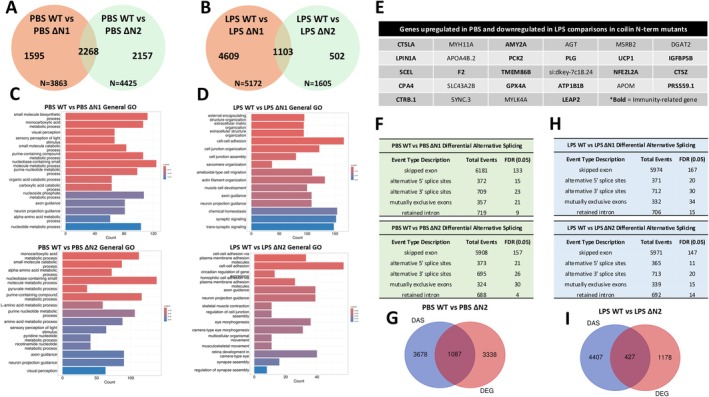

Coilin N‐terminal mutations similarly influence gene expression and predominately act independent of splicing events. (A, B) Venn diagrams illustrating the overlap in genes differentially expressed between ΔN1 and ΔN2 with WT upon PBS or LPS injection. (C, D) GO enrichment analysis illustrating the top general pathways altered under WT versus ΔN mutant comparisons under PBS or LPS injection. (E) Table highlighting a subset of genes found to be upregulated under PBS injection and downregulated under LPS injection in both ΔN mutants compared to WT. Boldened terms highlight immunity‐related genes. (F, H) rMATS analysis for the WT versus ΔN mutant comparisons under PBS or LPS injection. (G, I) Venn diagram showing the number of genes shared across DAS events and differential gene expression in the WT versus ΔN2 comparison under PBS or LPS injection.

FIGURE 7

Coilin N‐terminal mutation impairs the immune response. (A) qPCR analysis of IL‐1β, IL‐6, and IL‐4 mRNA expression in 3 dpf WT or ΔN mutants injected with PBS or LPS. Data represents 3 biological replicates with 2 technical repeats for a total N = 6. Error bars represent SD and black dots represent individual data points. *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001, ns = not significant for comparisons to WT PBS. ^# p < 0.05, ^## p < 0.01, ^### p < 0.001, ^#### p < 0.0001 for comparisons to WT LPS. (B) Illustration of the generation of COIL ΔN zebrafish expressing the neutrophil marker (mCherry: Lyz) and macrophage marker (eGFP: Mpeg). (C) Representative images of neutrophil accumulation around the yolk sac following injection of PBS or LPS in 3 dpf COIL ΔN1 lineage zebrafish. Arrows indicate neutrophils at the yolk sac that were applied to counts. (+) indicates a normal COIL allele and (−) indicates a ΔN COIL allele. (D) Histogram displaying the average number of neutrophils per yolk sac following injection of PBS or LPS in 3 dpf COIL ΔN1 lineage zebrafish. Error bars represent SD and black dots represent individual data points. *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001, ns = not significant for comparisons to (+/+) PBS. ^# p < 0.05, ^## p < 0.01, ^### p < 0.001, ^#### p < 0.0001 for comparisons to (+/+) LPS.
