. 2025 Apr 30;26(1):430.
doi: 10.1186/s12891-025-08681-1.

What is the appropriate axial position in cannulated screw fixation for femoral neck fractures? A finite element analysis

Dae-Kyung Kwak #  1 , Yeji Lee #  2 , Sung-Jae Lee  2 , Seunghun Lee  1 , Je-Hyun Yoo  3
Affiliations

What is the appropriate axial position in cannulated screw fixation for femoral neck fractures? A finite element analysis

Dae-Kyung Kwak et al. BMC Musculoskelet Disord. .

Erratum in

Abstract

Background: Cannulated screw fixation is a common surgical treatment for femoral neck fractures; however, there is limited information on the optimal axial position of the screws. Herein, we aimed to investigate the impact of axial screw position on surgical stability in femoral neck fracture models fixed with three cannulated screws.

Methods: Eighteen finite element models (FEMs) replicating Pauwels type II femoral neck fractures were constructed and tested using nine normal and nine osteoporotic bone models. Each FEM simulated combinations of three different screw positions (anterior, central, and posterior) in the axial view and three models (type 1: 8° angles, 10 mm inter-screw interval; type 2: 6° angles, 10 mm inter-screw interval; type 3: 8° angles, 6 mm inter-screw interval), assuming anatomical reduction. Stress concentrations on the screws and bone were investigated, with measurements of peak von Mises stress (PVMS) and mean stress.

Results: Stress concentration on the cannulated screws was consistently observed at the inferior screw near the fracture site in all FEMs. Stress concentrations on the bone around the screws were noted around the head and tip of the inferior screw in each FEM. All PVMS on the screw and surrounding bone decreased as the screw position moved from posterior to anterior in the axial view. Additionally, these stresses decreased as the screw tilt angle increased and the inter-screw interval was maximized. The mean stresses over the region of interest in all FEMs showed similar patterns to those of the PVMSs.

Conclusion: To enhance fixation stability and reduce stress concentrations at the fracture site and lateral cortex in femoral neck fractures fixed with three canulated screws, positioning the screws anterior to the center in the axial view and maximizing the inter-screw interval, tailored to the patient's femur geometry, are recommended.

Keywords: Axial position; Cannulated screws; Femoral neck fractures.

PubMed Disclaimer

Conflict of interest statement

Declarations. Ethics approval and consent to participate: Not applicable. It did not report on or involve the use of any animal or human data or tissue in this study. It was experimental study. Consent for publication: Not applicable. Competing interests: The authors declare no competing interests.

Figures

Fig. 1
Fig. 1

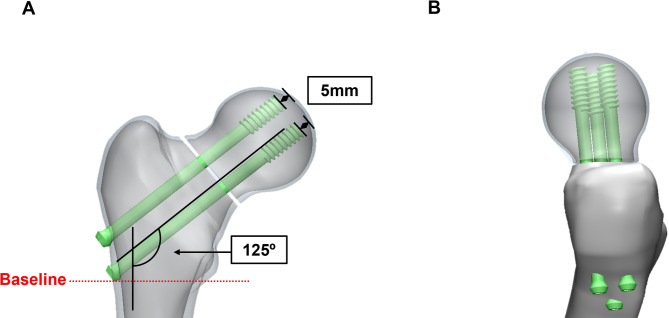

Position of the cannulated screw in anteroposterior (a) and axial (b) view
Fig. 2
Fig. 2
Loading condition of the analysis model; Hip joint force, 2100 N (body weight X 300%); Abductor muscle force, 700 N (body weight X 100%)
Fig. 3
Fig. 3
The figure of nine group models. (type 1: 8° angles, 10 mm inter-screw interval; type 2: 6° angles, 10 mm inter-screw interval; type 3: 8° angles, 6 mm inter-screw interval)
Fig. 4
Fig. 4
Local coordinate system considered at fracture plane which shows the direction of shear and axial displacements
Fig. 5
Fig. 5
Result of the mean stress over a region of interest on the screw in each finite element model
Fig. 6
Fig. 6
64-year-old female patient fixed with three cannulated screws for femoral neck fracture in anteroposterior (a) and axial (b) view
