Yoked surface codes

Abstract

One of the biggest obstacles to building a large scale quantum computer is the high qubit cost of protecting quantum information. For two-dimensional architectures, the surface code has long been the leading candidate quantum memory, but can require upwards of a thousand physical qubits per logical qubit to reach algorithmically-relevant logical error rates. In this work, we introduce a hierarchical memory formed from surface codes concatenated into high-density parity check codes. These yoked surface codes are arrayed in a rectangular grid, with parity checks (yokes) measured along each row, and optionally along each column, using lattice surgery. Our construction assumes no additional connectivity beyond a nearest-neighbor square qubit grid operating at a physical error rate of 10^-3. At algorithmically-relevant logical error rates, yoked surface codes use as few as one-third the number of physical qubits per logical qubit as standard surface codes, enabling moderate-overhead fault-tolerant quantum memories in two dimensions.

Fig. 1. Yoked surface code footprints.

From left to right: unyoked, 1D, and 2D yoked surface code patches drawn to relative scale. In each row of 1D yoked surface codes, we measure multi-body logical X- and Z-type stabilizers. In 2D yoked surface codes, we additionally measure multi-body logical X- and Z-type stabilizers in each column. The Z-type stabilizers are applied to a permutation of the 2D code to commute with the X-type stabilizers. Gray patches represent overhead introduced by the outer stabilizers (i.e. yokes). Dark patches represent the workspace required to measure the row/column stabilizers. There is also overhead due to interstitial space between patches for lattice surgery. Concatenated code parameters, along with approximate overall qubit footprints (including the various overheads) labeled below. Note that the [[192, 176, 2]] outer code is a collection of eight [[24, 22, 2]] 1D parity check code blocks. The logical qubits can be reliably stored for about a trillion operations assuming a physical error rate of 10⁻³ in a superconducting-inspired noise model. The relative savings of yoked surface codes over unyoked surface codes grows as the target error rate decreases.

Fig. 2. Connecting topological diagrams to lattice surgery.

Every topological diagram is a 3D representation of surface code lattice surgery evolving in time. Each block has spacetime extent d × d × d for surface code distance d. Extended connections between blocks serve as a visual aid to emphasize the topology. This shows the topological diagram for a multi-body Z-measurement, accompanied by the stabilizers measured in each time slice.

Fig. 3. Topological diagrams of multi-body logical measurement.

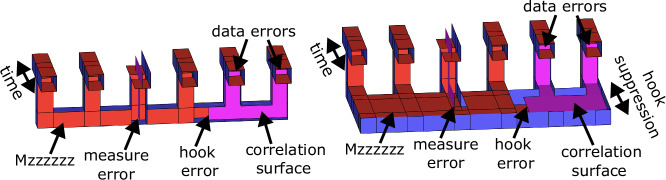

Left: a multi-body Z-measurement, with some surfaces removed for clarity. The right-hand correlation surface shows the equivalence of a short spacelike hook error to two data errors. The left-hand correlation surface shows a measurement error, which is equivalent to two data errors immediately before and after the measurement. Right: the same multi-body Z-measurement with protection against correlated hook errors. We can increase protection against the hook error by extending the distance between the boundaries that it connects. Naively, this would increase the overall qubit footprint of the circuit. However, we can orient this extension in time, trading a smaller qubit footprint for a longer syndrome extraction cycle. This also reorients the measurement error to be spacelike.

Fig. 4. Checking yoke stabilizers using lattice surgery.

Time flows left to right, with the corresponding ZX diagrams shown on the left. Top: For 1D yoked surfce codes, the process occupies 2n surface code patches for 8d rounds, where n is the block length of the outer code. Bottom: For 2D yoked surface codes, the process occupies 3w surface code patches for 25d rounds, where $w=\sqrt{n}$ is the the width of the outer array. In the ZX diagram, top pipes correspond to every other wire beginning from the top, while bottom pipes correspond to every other wire beginning second from the top.

Fig. 5. The full syndrome extraction of yoked surface codes.

Top: For 1D yoked surface codes, an extra row of workspace surface code patches travels through the blocks to measure the outer stabilizers. We use the walking surface code construction in ref. to connect the outer syndrome cycles, which takes 2d rounds to execute. The total length of a syndrome cycle scales as 8d × (# of blocks) + 2d. Bottom: For 2D yoked surface codes, an extra row and column of workspace surface code patches travels through the blocks to measure the outer stabilizers. We use two iterations of walking surface codes to connect the outer syndrome cycles, which together take 4d rounds to execute. The total length of a syndrome cycle scales as 25dw + 4d, where $w=\sqrt{n}$ is the width of the square outer code array, in this case 8.

Fig. 6. Layouts for cold and hot storage using 1D yoked surface codes.

The 2D footprint diagrams at the top show how space is allocated, while the 3D topological diagrams at the bottom show hot storage syndrome cycles occurring over time. In the 2D footprint diagrams, each row is a separate outer code block. The white-filled squares correspond to usable storage while other squares correspond to various overheads. In cold storage, one row of workspace is shared between different blocks in order to measure the yokes. In hot storage, the yokes are measured using the access hallways that are already present. We assume that the access hallways are the full unyoked code distance in height. The hot storage syndrome cycle shown takes 50d rounds and utilizes the access hallways 40% of the time.

Fig. 7. Complementary gap statistics.

We use the SI1000 error model described in Supplementary Note 2 at an error rate of 10⁻³. a 10d round memory experiments with perfect terminal time boundaries checking one observable. Gaps are presented in terms of their ratio in dB, where each gap is binned into the nearest integer dB. A negative gap indicates that the more likely outcome was incorrect. Overall, each curve is comprised of 10⁹ samples. b The decoder calibration after rescaling the gap by 0.9×. Error bars represent hypothetical logical error rates with a Bayes factor of at most 1000 versus the maximum likelihood hypothesis probability, assuming a binomial distribution. c Extrapolating the inverse cumulative distribution functions of the complementary gaps by exponentiating. Extrapolations are represented as x’s with the intervening space shaded. This well-approximates the inverse cumulative distribution function of a longer memory experiment, with a slight tendency towards sampling too-large gaps as the gap increases.

Fig. 8. Simulations of yoked surface codes.

We perform simulations over different code block sizes n and different numbers of rounds r in the check. We include single-significant-figure fits consistent with the different path-counting scalings that well-approximate the data. a–c A comparison of full simulation versus gap simulation. The error rates are reported in terms of logical error per patch-round. d, e Phenomenological gap simulations of yoked surface codes. Each trial consists of 10 outer code rounds, with a fixed measurement error rate given by a 100d round gap distribution. These simulations assume the hook error has been suppressed below the noise floor set by other error mechanisms. The surface code data points toward the very top right correspond to highly noisy simulations, but with error bars that cover the extrapolations. Error bars represent hypothetical logical error rates with a Bayes factor of at most 1000 versus the maximum likelihood hypothesis probability, assuming a binomial distribution.
