Echocardiographic imaging in patients with conduction system pacing

Abstract

Conduction system pacing (CSP), encompassing His-bundle pacing (HBP) and left bundle branch area pacing (LBBAP), revolutionizes cardiac pacing, allowing a more physiological left ventricular activation than conventional right ventricular (RV) pacing through electrode placed in RV apex, interventricular septum or right ventricular outflow tract. Echocardiography plays a pivotal role in patient assessment, primarily by measuring left ventricular ejection fraction (LVEF) to determine the pacing strategy in alignment with current guidelines. Clinical data, simulations and ongoing trials on CSP explore CSP viability across various LVEF conditions. CSP is supposed to defer pacing-induced cardiomyopathy (PiCM) associated with conventional right ventricular pacing (RVP). This paper aims to review the current literature regarding the use of echocardiography in CSP. Images from our experience in the echocardiographic lab were used throughout this document to show our proposals of imaging in CSP. Echocardiography may help to determine lead localization within the interventricular septum (IVS), customizing pacing to individual anatomy and electromechanical indices (like atro-ventricular delay) and evaluates often-overlooked valvular function, a potential PiCM contributor. Three-dimensional (3-D) echocardiography widens the knowledge of lead localization and valvular dysfunction, as well as dyssynchrony assessment. Dyssynchrony, crucial both to resynchronization per se and physiological stimulation is quantified via echocardiography, especially using speckle-tracking imaging. Baseline LVEF and follow-up observation of CSP effects: early in Global Longitudinal Strain (GLS), afterwards in LV volumes and LVEF may improve the future proper qualification of patients. Limited left atrial (LA) and right atrial (RA) strain assessments hold potential in the CSP qualification and response assessment context. Echocardiography complements other imaging modalities for comprehensive patient evaluation. Echocardiography is integral in the CSP clinical use, from patient selection (by showing subtle changes in myocardial function) to post-procedure follow-up (tricuspid regurgitation, LV and RV function, leads and synchrony assessment). GLS, assessed by speckle tracking imaging and profound 2D and 3D (lead placement, septum morphology and global heart function under CSP) analyses show promise in CSP outcome assessment, though standardization is needed.

Keywords: Conduction system; Pacing; Echocardiography; Speckle tracking.

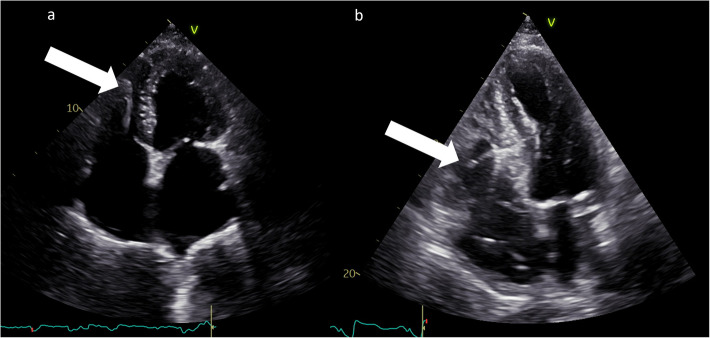

Fig. 1

Conventional lead placement in current right ventricular pacing – apex of right ventricle (a—arrow) and conduction system pacing – lead in interventricular septum (b – arrow)

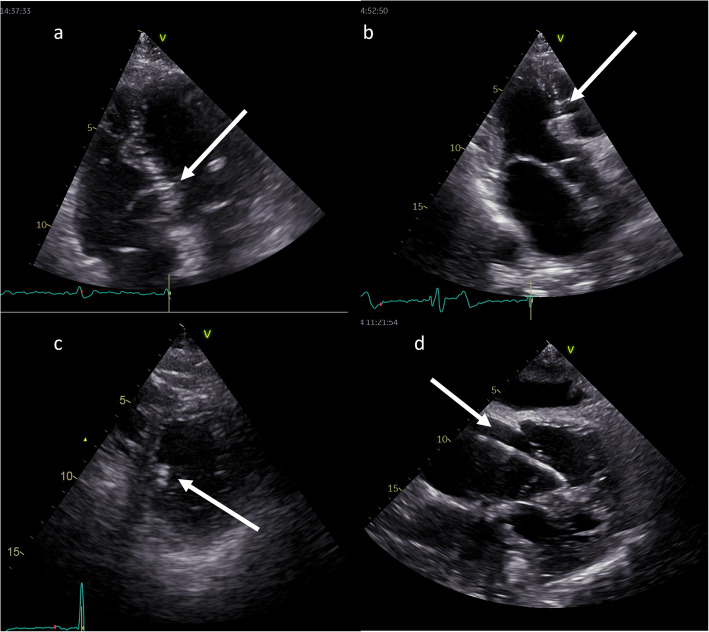

Fig. 2

Evaluation of the conduction system pacing lead placement: posteriorly, if visible in the apical four-chamber view (a); more anteriorly in the interventricular septum., if visible in apical long axis view (APLAx) (b); in the left ventricle's parasternal short axis—determination of the “height” (from base to apex) in interventricular septum (c); the substernal view – insight on the lead and tricuspid valve (d)

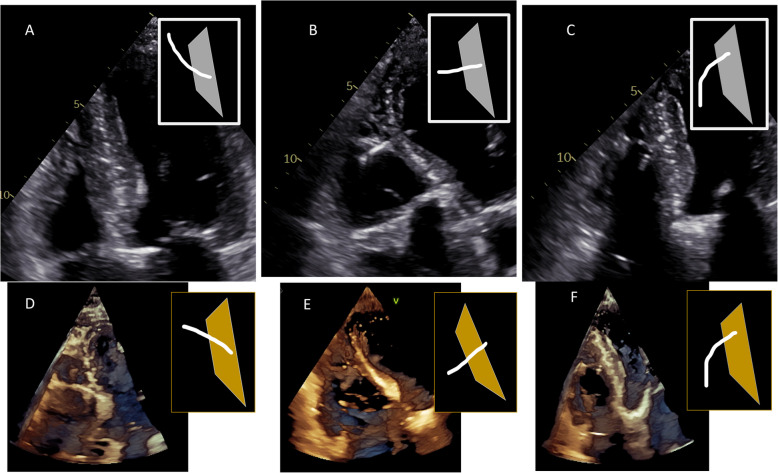

Fig. 3

Evaluation of the conduction system pacing lead placement—three-dimensional imaging modalities—multislice imaging. The lead placement in the interventricular septum is shown on the scheme

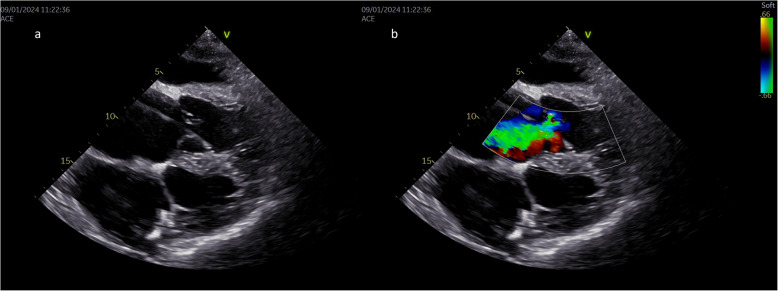

Fig. 4

Tricuspid regurgitation (TR) caused by deflection of the septal tricuspid leaflet by a CSP lead (a). TR jet is shown in color Doppler (b)

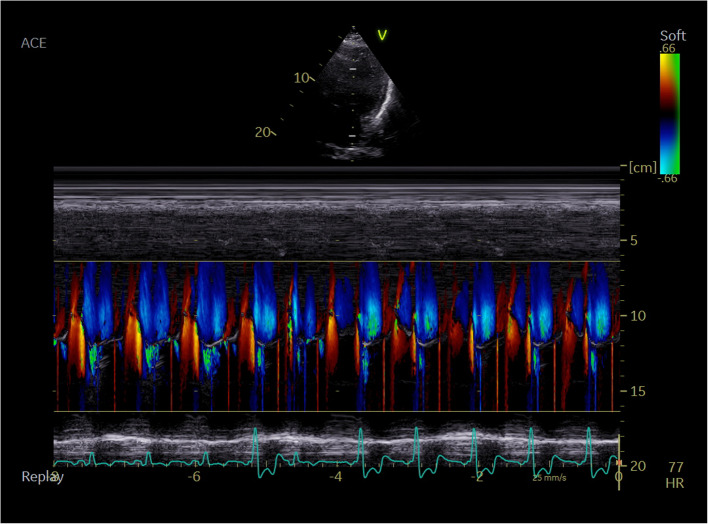

Fig. 5

Change in mitral regurgitation severity during pacing mode shift visualized using M-mode and color Doppler

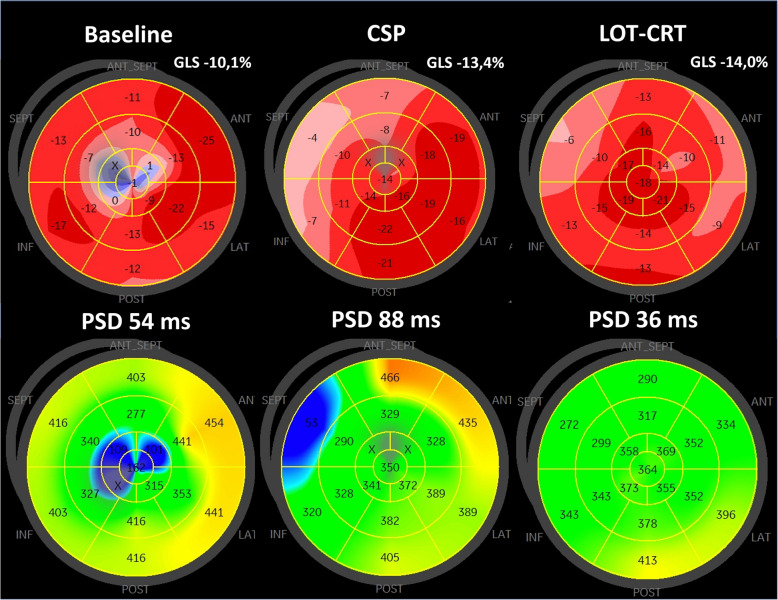

Fig. 6

Longitudinal strain and time to peak strain “bulls eye” plots for baseline, CSP and LOT-CRT (left bundle branch-optimized cardiac resynchronization therapy) in the same patient. In the strain bull's eye and myocardial work analysis, the red areas represent regions with normal longitudinal strain, while the pink areas indicate regions with impaired longitudinal strain. For myocardial work, blue values indicate the shortest times to maximum deformation, red values indicate the longest times, and green values represent normal times
