Generative AI mitigates representation bias and improves model fairness through synthetic health data

Abstract

Representation bias in health data can lead to unfair decisions and compromise the generalisability of research findings. As a consequence, underrepresented subpopulations, such as those from specific ethnic backgrounds or genders, do not benefit equally from clinical discoveries. Several approaches have been developed to mitigate representation bias, ranging from simple resampling methods, such as SMOTE, to recent approaches based on generative adversarial networks (GAN). However, generating high-dimensional time-series synthetic health data remains a significant challenge. In response, we devised a novel architecture (CA-GAN) that synthesises authentic, high-dimensional time series data. CA-GAN outperforms state-of-the-art methods in a qualitative and a quantitative evaluation while avoiding mode collapse, a serious GAN failure. We perform evaluation using 7535 patients with hypotension and sepsis from two diverse, real-world clinical datasets. We show that synthetic data generated by our CA-GAN improves model fairness in Black patients as well as female patients when evaluated separately for each subpopulation. Furthermore, CA-GAN generates authentic data of the minority class while faithfully maintaining the original distribution of data, resulting in improved performance in a downstream predictive task.

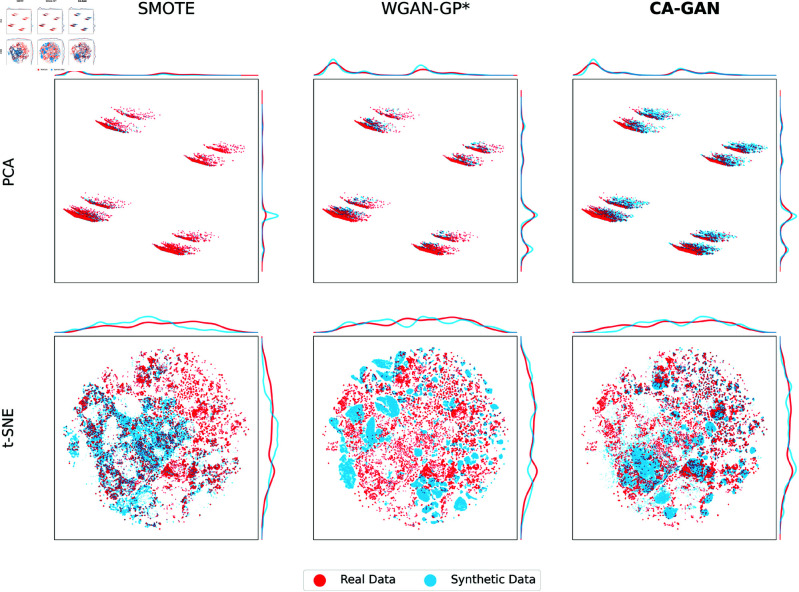

Fig 1. Two-dimensional representations of the acute hypotension dataset for Black patients, including marginal distributions of the principal components.

Top panels: PCA two-dimensional representation of real (red) and synthetic (blue) data, where CA-GAN provides the best overall coverage of real data distribution, while SMOTE and WGAN-GP* show evidence of reduced coverage and mode collapse. Bottom panels: t-SNE two-dimensional representation of real data (red) and synthetic data (blue) for the three methods SMOTE, WGAN-GP, and CA-GAN. It can be seen that CA-GAN more uniformly covers the real distribution, while SMOTE does not cover a significant part of it (top right in the panel) and WGAN-GP* coverage is almost completely separated from the real data.

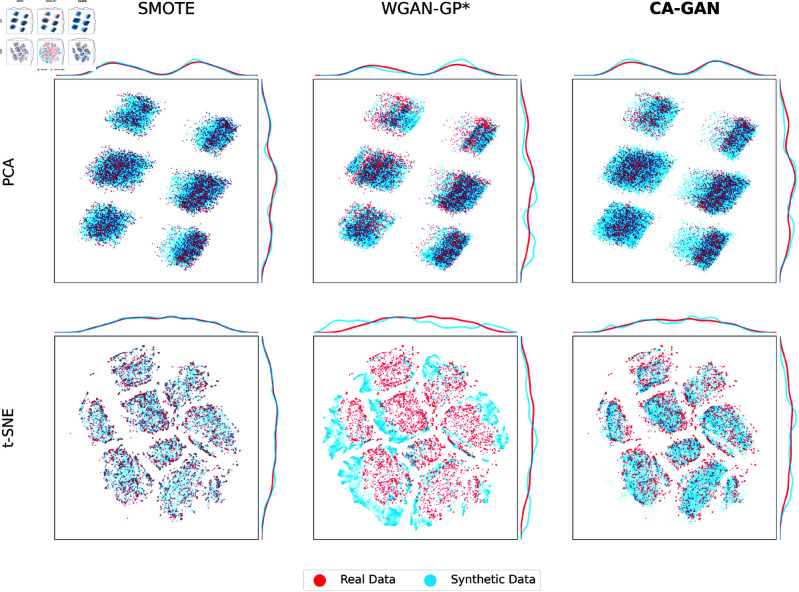

Fig 2. Two-dimensional representations of the sepsis dataset for Black patients, including marginal distributions of the principal components.

Top panels: PCA two-dimensional representation of real (red) and synthetic (blue) data, where CA-GAN provides more coverage than SMOTE (especially in the top right and bottom left part of the panel), while WGAN-GP* provides the lowest coverage. Bottom panels: t-SNE two-dimensional representation of real data (red) and synthetic data (blue) for the three methods SMOTE, WGAN-GP, and CA-GAN. It can be seen that SMOTE follows an interpolation pattern, while CA-GAN expands into latent space, generating authentic data points while remaining within the clusters identified by t-SNE. Data generated by WGAN-GP* fall outside of the real data.

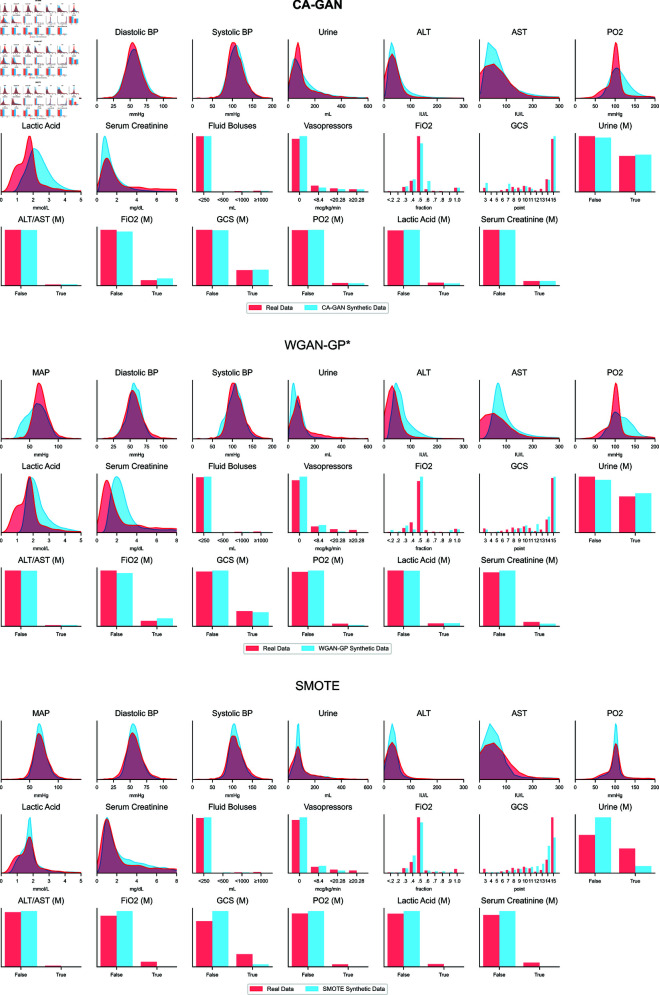

Fig 3. Distribution plots[0mm][-3mm]AQ1[4mm][-3mm]AQ2 of each variable, overlaying real and synthetic data for acute hypotension dataset.

Distribution of variables related to blood pressure (MAP, diastolic and systolic) is captured well by our method in comparison to WGAN-GP* and SMOTE. CA-GAN performs better also for categorical variables, while all the three methods struggle with variables with long tail, non-normal distributions. Top panel: CA-GAN. Middle panel: WGAN-GP. Bottom panel: SMOTE

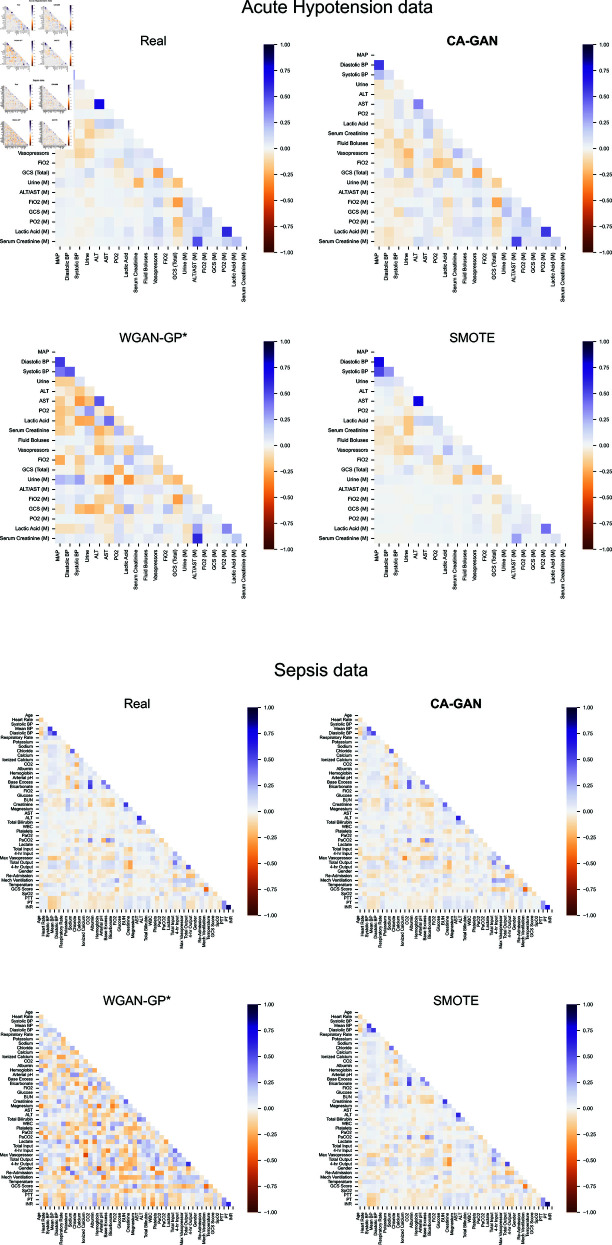

Fig 4. Kendall’s rank correlation coefficients for the real data and the data generated with CA-GAN, WGAN-GP*, and SMOTE.

Top panel: Acute hypotension data. Bottom panel: Sepsis data

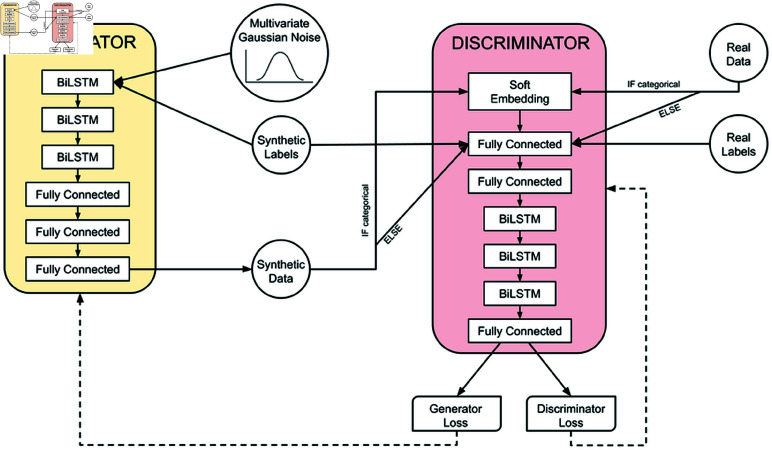

Fig 5. Proposed architecture of our CA-GAN. The Generator and the Discriminator are two deep networks with similar structure and number of parameters.

Both employ three stacked Bidirectional LSTMs (BILSTMs) to capture the temporal relationships of longitudinal data. They are trained together adversarially, with a minimax game. Conditioning is achieved with static labels, passed as input to both networks. The Generator also takes Gaussian noise as input and generates time-series data (synthetic patients). The discriminator evaluates the plausibility of the output of the Generator, compared with the real data.
