. 2025 May 25;25(1):793.
doi: 10.1186/s12903-025-05889-4.

Marginal fit and fracture resistance of CAD/CAM glass ceramic occlusal veneers with different preparation designs

Suad M Hassan  1 , Ayat G Montaser  1 , Zinab R El Sharkawy  1 , Nevin A Gad  2 , Shaimaa A Alrafee  3 , Zahraa A Gabal  1
Affiliations

Marginal fit and fracture resistance of CAD/CAM glass ceramic occlusal veneers with different preparation designs

Suad M Hassan et al. BMC Oral Health. .

Abstract

Background: To assess marginal fit and fracture resistance of CAD/CAM glass ceramic occlusal veneers with different preparation designs.

Methods: First premolar typodont maxillary was chosen. Standard IPS E.max CAD occlusal veneer preparations were carried out using Exocad software using three distinct designs: the first design involved a minimally invasive preparation (butt joint"BJ"group); the second design involved an occlusal veneer preparation with a circumferential hollow chamfer finish line"HC"group; and the third design involved a deep chamfer finish line"DC"group. To create a total of 24 epoxy resin replicas, each prepared design was reproduced eight times ("n = 8"for each prepared design). Every sample was made using IPS E.max CAD ceramics. Every occlusal veneer was firmly attached to the matching epoxy resin using adhesive resin cement. A computerized stereomicroscope was used to measure the vertical marginal gap. Ultimately, the fracture resistance was measured using a universal testing apparatus.

Results: Deep chamfer occlusal veneer design, group"DC", registered statistically significant the highest mean value of vertical marginal gap (118.38 ± 10.43 μm) as well as the lowest mean value of failure load (549.97 ± 56.66 N). While butt joint occlusal veneer design"BJ"registered a statistically significant lowest mean value of vertical marginal gap (99.2 ± 7.15 μm) as well as the highest mean value of failure load (1107.25 ± 93.09 N).

Conclusions: Although different preparation designs of IPS E.max CAD occlusal veneer restorations would significantly affect the marginal fit and fracture resistance, all groups were within the clinically accepted range.

Keywords: Different preparation designs; Fracture resistance; IP E.max CAD; Marginal fit; Occlusal veneer.

PubMed Disclaimer

Conflict of interest statement

Declarations. Ethics approval and consent to participate: The Research Ethics Committee (REC) et al.-Azhar University's Faculty of Dental Medicine for Girls gave its approval to this study under Code (P-PD- 24–13). Consent for publication: Not applicable. Competing interests: The authors declare no competing interests.

Figures

Fig. 1
Fig. 1
Occlusal veneer preparation designs; a Butt joint design. b Hollow chamfer design. c Proposed modified design
Fig. 2
Fig. 2

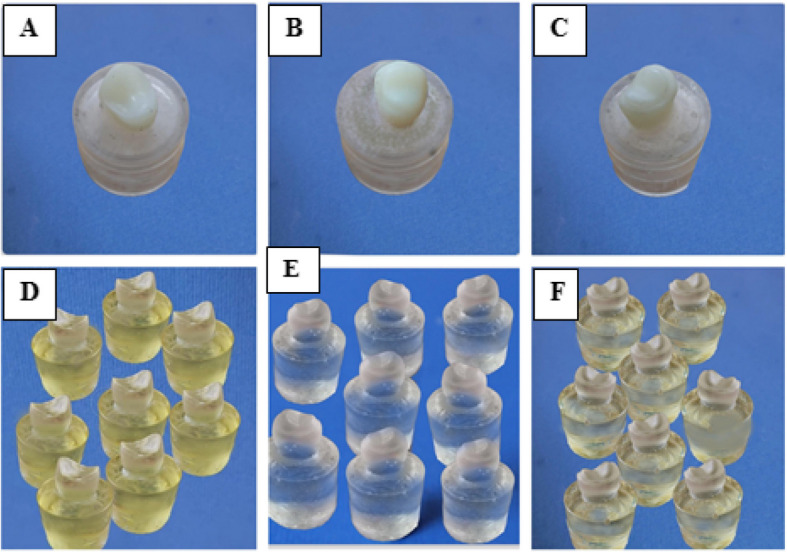

Manufacturing and duplication of epoxy resin dies; A Prepared 3D-printed butt joint design embedded in epoxy resin. B Prepared 3D-printed hollow chamfer design embedded in epoxy resin. C Prepared 3D-printed proposed modified design embedded in epoxy resin. D Epoxy resin dies for butt joint design. E Epoxy resin dies for hollow chamfer design. F Epoxy resin dies for proposed modified design
Fig. 3
Fig. 3

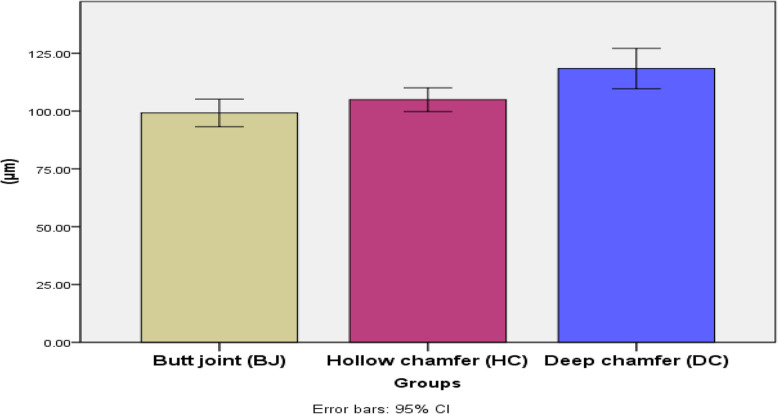

Bar chart illustrating mean marginal fit in different preparation designs used for the fabrication of occlusal veneers
Fig. 4
Fig. 4

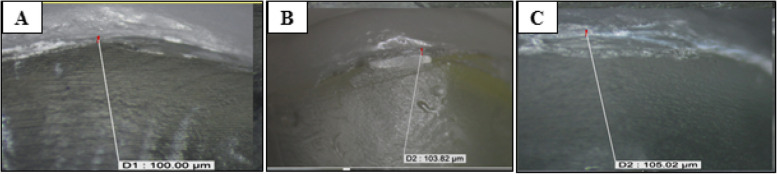

Digital microscopic images of vertical marginal gap distance at different occlusal veneer designs; A Butt joint design. B Hollow chamfer design. C Proposed modified design
Fig. 5
Fig. 5
Bar chart illustrating mean fracture resistance in different preparation designs used for the fabrication of occlusal veneers
Fig. 6
Fig. 6
Failure mode; A Occlusal veneer fracture through midline (half of the veneer is displaced or lost) (Code III). B Fracture of more than half of the occlusal veneers (Code IV). C, D Sever fracture of epoxy resin die or occlusal veneer (Code V)
Fig. 7
Fig. 7

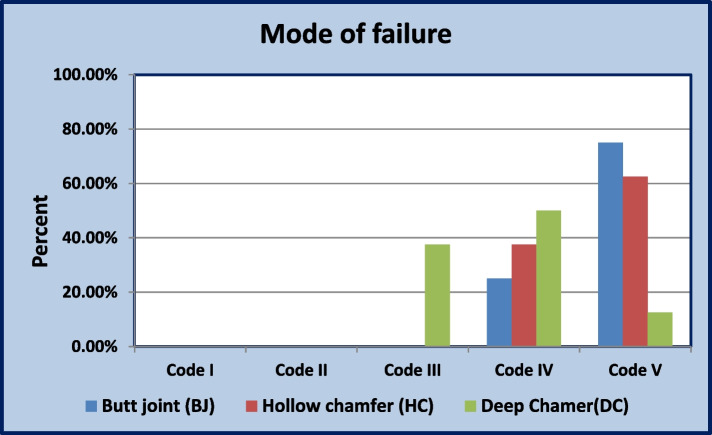

Bar chart illustrating mode of failure between groups
Fig. 8
Fig. 8
Scatter plot showing correlation between fracture resistance and marginal fit
