. 2025 Apr 4:44:493-505.
doi: 10.1016/j.jpra.2025.03.020. eCollection 2025 Jun.

Characterization of cutaneous microvasculature using 3D imaging: A feasibility study in a cohort of head and neck surgery patients with attention to smoking status

O M Alese  1   2 , A C Wilson  1   2 , K M Tessier  3 , A Loavenbruck  4   5 , C Dedeker  2 , A A Lassig  1   2
Affiliations

Characterization of cutaneous microvasculature using 3D imaging: A feasibility study in a cohort of head and neck surgery patients with attention to smoking status

O M Alese et al. JPRAS Open. .

Abstract

Background: This study explored a new method to characterize cutaneous microvasculature and evaluated the associations between baseline vessel characteristics and post-operative wound healing outcomes.

Materials and methods: We prospectively enrolled 17 adult patients undergoing major head and neck surgery. A full thickness cutaneous biopsy from the inferior surgical skin flap of the neck incision was obtained and processed for immunohistochemical analyses. Collagen IV antibody was immunolocalized along with secondary fluorophore-conjugated antibodies for confocal microscopy. The Vesselucida 360 software was used to morphologically characterize the cutaneous vasculature by tracing 3D sections of the collagen IV-stained vessels. Vessel structure metrics including isolated elements (individual vessel structures) and patient characteristics were evaluated for associations. Statistical analyses were performed using R version 3.6.1 and SAS version 9.4; a p-value of 0.05 was considered significant.

Results: Males and prior chemotherapy patients trended toward higher isolated elements compared with females and patients without a history of chemotherapy. Vesselucida assessment results indicated that current and former smokers were found to have more tortuous vessels and irregular vessel walls than never-smokers. Isolated elements were significantly higher in patients who returned to the hospital owing to a wound complication, required long-term wound care, or had other complications. Vascular endothelial growth factor A was positively correlated with vessel endings and total surface area, whereas placental growth factor was positively correlated with isolated elements and endings.

Conclusions: We described the use of Vesselucida 360 as an innovative tool to characterize cutaneous vasculature; using this tool, the increase in isolated elements was found to be associated with poorer wound healing outcomes.

Keywords: Cutaneous vasculature; Surgery; Vessel structure; Vesselucida 360; Wound healing.

PubMed Disclaimer

Figures

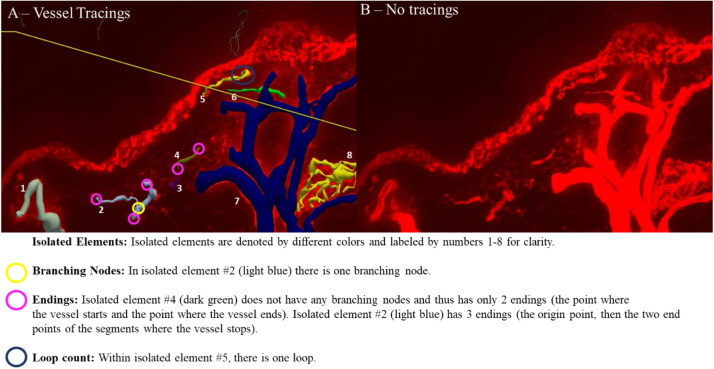

Figure 1:
Figure 1
Morphological Vessel Metrics.
Figure 2:
Figure 2
Morphological Vessel Metrics by Patient Characteristics.
Figure 3:
Figure 3
Total Vessel Size Metrics by Patient Characteristics.
Figure 4:
Figure 4
Confocal microscopy images of smokers (A), former smokers (B), and never-smokers (C).
Figure 5:

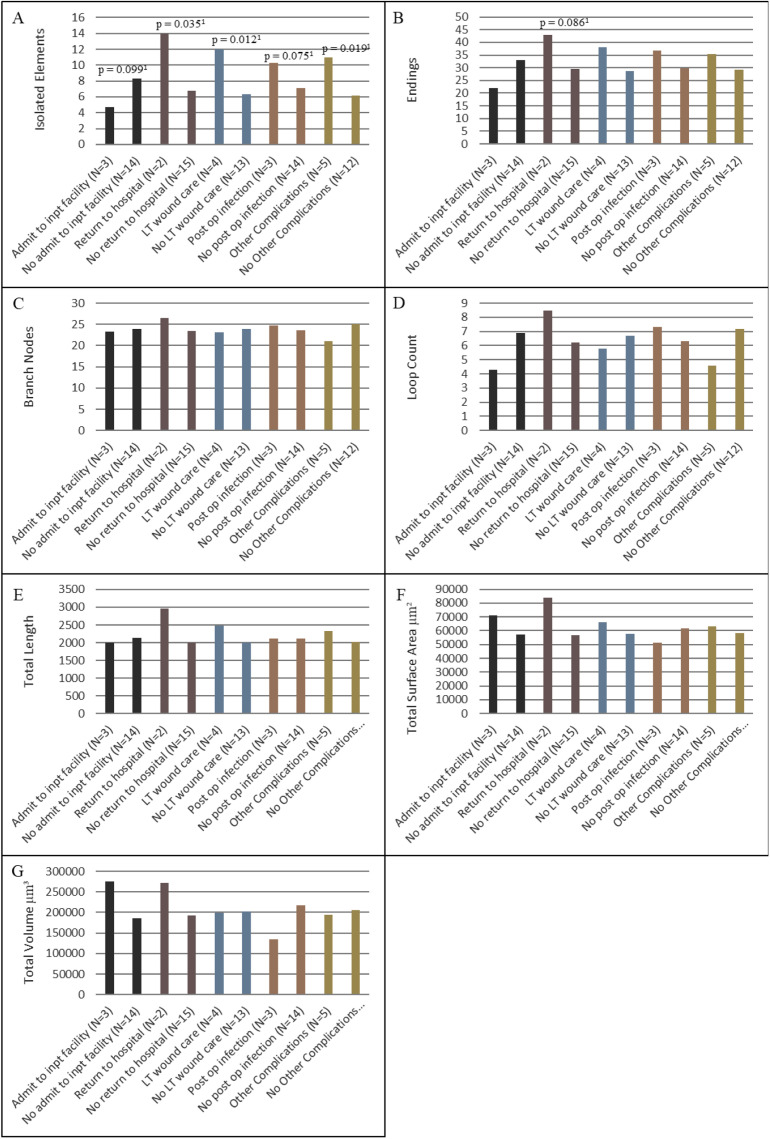

Figure 5
Vessel Metrics by Post-Operative Outcomes.
Figure 6:
Figure 6
Vessel Metrics by Wound Vascular Fluid.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Okonkwo U.A., Dipietro LA. Diabetes and wound angiogenesis. Int J Mol Sci. 2017;18:1419. doi: 10.3390/ijms18071419. - DOI - PMC - PubMed
    1. Burgess J.L., Wyant W.A., Abujamra B.A., Kirsner R.S., Jozic I. Diabetic wound-healing science. Medicina (B Aires) 2021;57(10):1072. doi: 10.3390/medicina57101072. - DOI - PMC - PubMed
    1. Jacobson L.K., Johnson M.B., Dedhia R.D., Niknam-Bienia S., Wong AK. Impaired wound healing after radiation therapy: A systematic review of pathogenesis and treatment. JPRAS Open. 2017;13:92–105. doi: 10.1016/j.jpra.2017.04.001. - DOI
    1. Guo S., DiPietro LA. Factors affecting wound healing. J Dent Res. 2010;89(3):219–229. doi: 10.1177/0022034509359125. - DOI - PMC - PubMed
    1. Nwaneshiudu A., Kuschal C., Sakamoto F.H., Rox Anderson R., Schwarzenberger K., Young R.C. Introduction to confocal microscopy. J Invest Dermatol. 2012;132:e3. doi: 10.1038/jid.2012.429. - DOI - PubMed
