. 2025 May 23:13:1609548.
doi: 10.3389/fbioe.2025.1609548. eCollection 2025.

Research on rehabilitation robot control based on port-Hamiltonian systems and fatigue dissipation port compensation

Jingjing Li  1 , Zhen Chen  1   2 , Jian Li  1 , Hongyu Yan  1 , Zhen Li  1 , Minshan Feng  3   4 , Jiawen Zhan  3 , Liwei Shao  2
Affiliations

Research on rehabilitation robot control based on port-Hamiltonian systems and fatigue dissipation port compensation

Jingjing Li et al. Front Bioeng Biotechnol. .

Abstract

Introduction: Upper-limb rehabilitation robots have been demonstrated to effectively promote motor recovery in stroke patients. However, in active training modes, control instability may be induced by the nonlinear and time-varying characteristics of muscle fatigue, increasing the risks of physical human-robot interaction and ultimately limiting rehabilitation outcomes.

Methods: A novel control strategy within the port-Hamiltonian framework, incorporating a dynamic muscle fatigue model. Fatigue levels were assessed in real time using surface electromyography (sEMG) signals and mapped to damping parameters in joint space, enabling the port-based modeling of fatigue-related energy dissipation. A hierarchical control architecture was constructed, consisting of outer-loop admittance control and inner-loop energy shaping.

Results: Theoretical analysis confirmed that the closed-loop passivity of the system was preserved and stability was ensured. Experimental validation further showed that, compared to fixed damping parameters, the proposed fatigue compensation approach reduced muscle fatigue accumulation by 45% and increased training duration by 40%.

Discussion: The proposed fatigue-adaptive control framework was shown to enhance the safety, effectiveness, and physiological adaptability of rehabilitation training. The integration of real-time sEMG feedback and port-Hamiltonian modeling offers a promising solution for personalized robotic rehabilitation.

Keywords: human-robot interaction stability; muscle fatigue modeling; passivity-based control; port-Hamiltonian system; upper-limb rehabilitation robot.

PubMed Disclaimer

Conflict of interest statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Figures

FIGURE 1

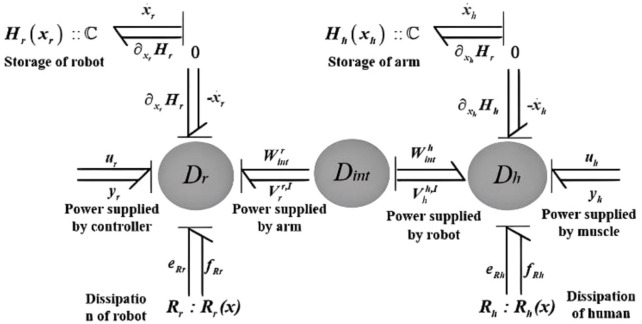

FIGURE 1
PH framework diagram for human-robot interaction.
FIGURE 2

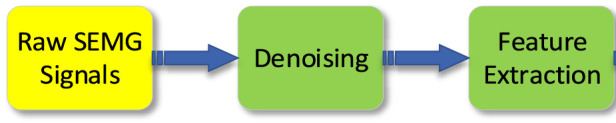

FIGURE 2
sEMG signal processing.
FIGURE 3

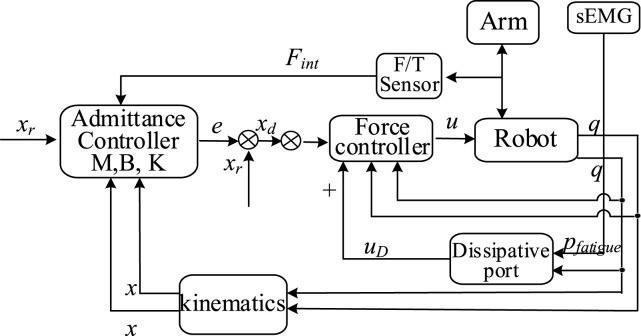

FIGURE 3
Human-robot interaction control block diagram.
FIGURE 4

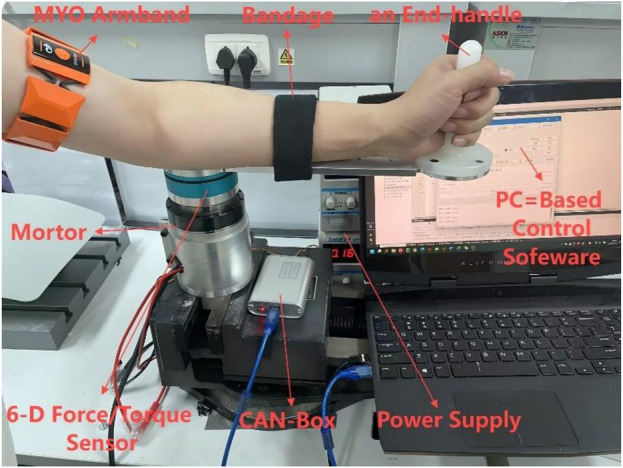

FIGURE 4
Schematic diagram of the experimental platform.
FIGURE 5

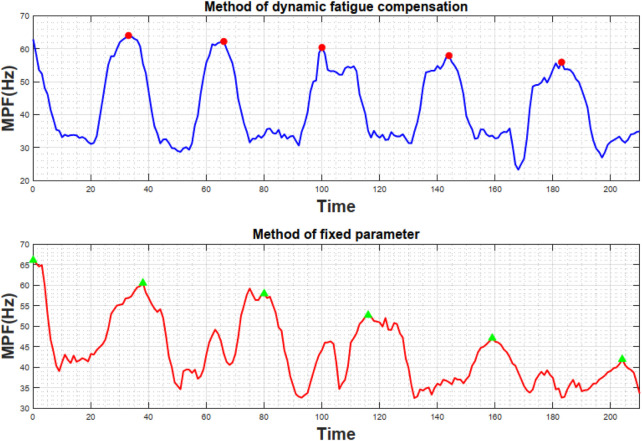

FIGURE 5
Comparison of MPF variation under different control strategies.
FIGURE 6
FIGURE 6
Comparison of normalized MPF and fatigue factor under different control methods.
FIGURE 7

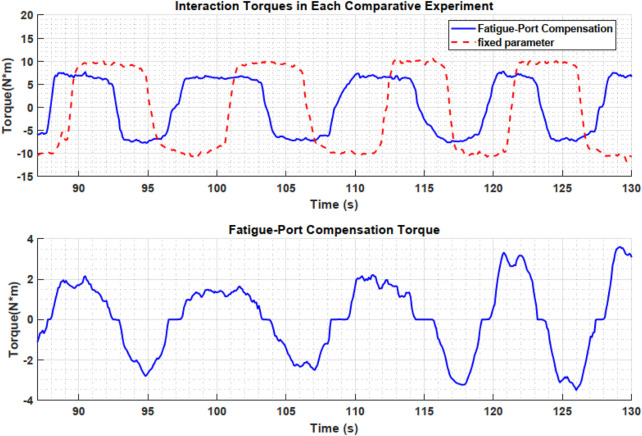

FIGURE 7
Interaction torques under different control methods (top) and corresponding fatigue-port compensation torque (bottom).
See this image and copyright information in PMC
