. 2025 Jul 1;15(1):20518.
doi: 10.1038/s41598-025-05759-7.

Machine learning evaluation model of pilot workload in a low-visibility environment

Yuansheng Wang  1   2 , Xinyao Guo  3   4 , Shaoshuai Guo  1   2 , Fang Jiang  5 , Zhuping Liang  5 , Le Peng  2 , Yi Chai  2
Affiliations

Machine learning evaluation model of pilot workload in a low-visibility environment

Yuansheng Wang et al. Sci Rep. .

Abstract

To analyze the variation trend of pilots' workload in a low-visibility flight environment and then put forward a scientific evaluation method, this study set up an experimental platform using an E01-pro simulated flight platform and a PhysioPlux multipurpose physiological index tester. The ECG signal data of 40 pilots in normal- and low-visibility flight environments were monitored and collected. Meanwhile, the workload and heart rate (HR) changes of pilots under different visibility levels were analyzed in accordance with the American NASA-TLX workload scale, and the sensitive indexes significantly affecting pilots' workload among ECG signal indexes were screened and extracted. A quantitative evaluation method for pilots' workload was established on the basis of the hidden Markov model (HMM) in machine learning theory, sensitive ECG signal indexes, and subjective scale data. In addition, the workload state of pilots under different visibility levels was judged, and the evolution laws of ECG indexes were revealed. Results show that multiple indexes such as pilots' average HR and scale scores grow significantly under the low-visibility flight environment. The four indexes-pNN20, HF/LF, SD2/SD1, and HR-in ECG signals exhibit significant differences in distinguishing different levels of workload. The accuracy of the HMM-based pilots' workload evaluation model can reach as high as 87.5%. The conclusions provide methodological support for the fast evaluation of pilots' workload state.

Keywords: Civil pilots; ECG signal; Low visibility; Machine learning; Workload.

PubMed Disclaimer

Conflict of interest statement

Competing interests: The authors declare no competing interests.

Figures

Fig. 1
Fig. 1

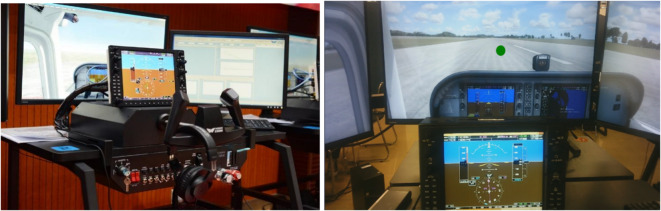

E01-pro flight simulation device.
Fig. 2
Fig. 2
ECG denoising results.
Fig. 3
Fig. 3

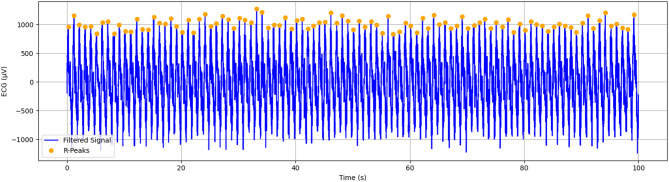

R-wave positioning marks.
Fig. 4
Fig. 4

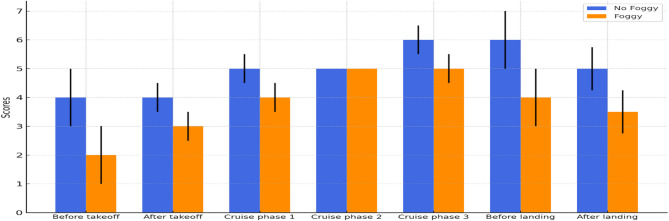

Statistical results of the NASA-TLX scale in the simulated flight of the subjects.
Fig. 5
Fig. 5

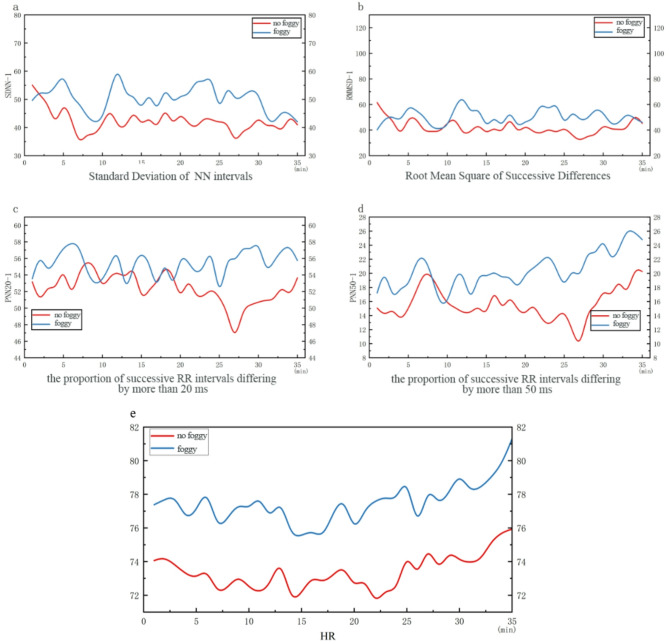

Mean values of ECG time-domain analysis indexes.
Fig. 6
Fig. 6

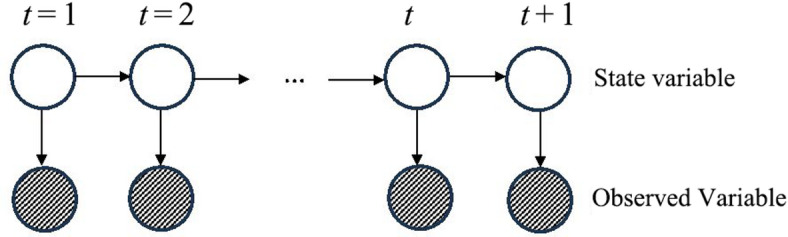

HMM time-series logic.
Fig. 7
Fig. 7

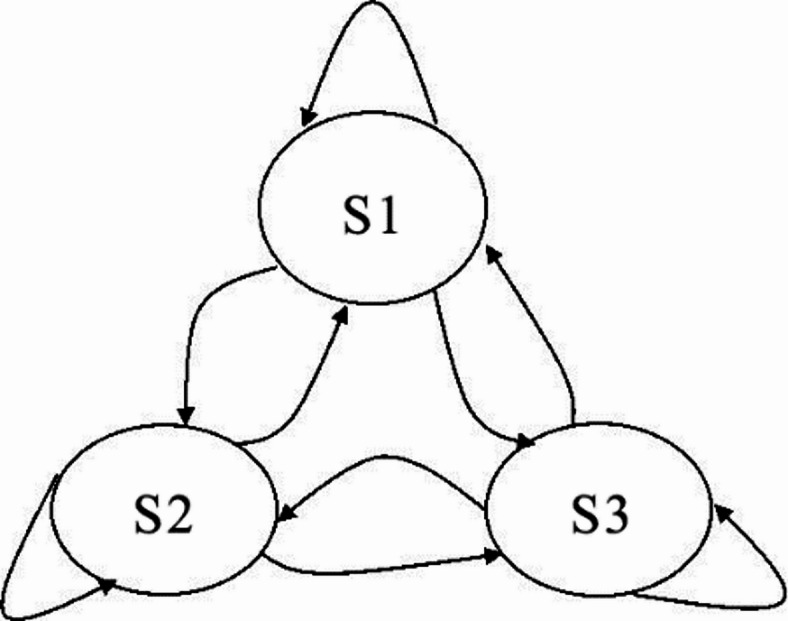

HMM state transition diagram.
Fig. 8
Fig. 8

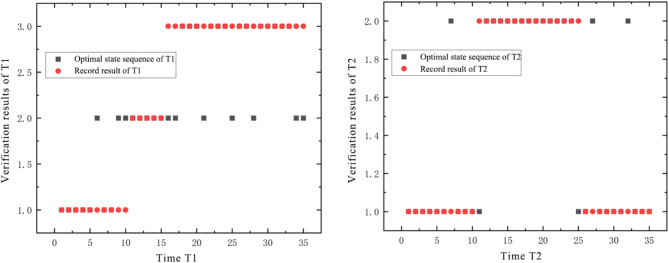

Comparison between model calculation results and recorded results.
See this image and copyright information in PMC
