Automated 3D segmentation of the hyoid bone in CBCT using nnU-Net v2: a retrospective study on model performance and potential clinical utility

Ismail Gümüssoy  1 , Emre Haylaz  2 , Suayip Burak Duman  3 , Fahrettin Kalabalik  1 , Seyda Say  1 , Ozer Celik  4 , Ibrahim Sevki Bayrakdar  5
Affiliations

Automated 3D segmentation of the hyoid bone in CBCT using nnU-Net v2: a retrospective study on model performance and potential clinical utility

Ismail Gümüssoy et al. BMC Med Imaging. .

Abstract

Objective: This study aimed to identify the hyoid bone (HB) using the nnU-Net based artificial intelligence (AI) model in cone beam computed tomography (CBCT) images and assess the model's success in automatic segmentation.

Methods: CBCT images of 190 patients were randomly selected. The raw data was converted to DICOM format and transferred to the 3D Slicer Imaging Software (Version 4.10.2; MIT, Cambridge, MA, USA). HB was labeled manually using the 3D Slicer. The dataset was divided into training, validation, and test sets in a ratio of 8:1:1. The nnU-Net v2 architecture was utilized to process the training and test datasets, generating the algorithm weight factors. To assess the model's accuracy and performance, a confusion matrix was employed. F1-score, Dice coefficient (DC), 95% Hausdorff distance (95% HD), and Intersection over Union (IoU) metrics were calculated to evaluate the results.

Results: The model's performance metrics were as follows: DC = 0.9434, IoU = 0.8941, F1-score = 0.9446, and 95% HD = 1.9998. The receiver operating characteristic (ROC) curve was generated, yielding an AUC value of 0.98.

Conclusion: The results indicated that the nnU-Net v2 model achieved high precision and accuracy in HB segmentation on CBCT images. Automatic segmentation of HB can enhance clinicians' decision-making speed and accuracy in diagnosing and treating various clinical conditions.

Clinical trial number: Not applicable.

Keywords: Artificial intelligence; Cone-beam computed tomography; Convolutional neural network; Hyoid bone.

PubMed Disclaimer

Conflict of interest statement

Declarations. Ethics approval and consent to participate: This study was approved by the Non-Interventional Clinical Research Ethics Committee of Inönü University (approval no.2025/6807, approval date: 3 January 2025). We certify that the study was performed in accordance with the Helsinki Declaration of 1975 and later amendments. This study was approved by the Non-Interventional Clinical Research Ethics Committee of Inönü University, and informed consent was waived for all patients due to the retrospective nature of the study. Consent for publication: Not applicable. Competing interests: The authors declare no competing interests.

Figures

Fig. 1
Fig. 1
Computational pipeline of the nnU-Net v2 algortihm
Fig. 2
Fig. 2
Manual labeling of hyoid bone in axial (A, B, C), coronal (D, E, F), and sagittal (G, H, I) sections on CBCT images
Fig. 3
Fig. 3
The workflow of the methodology used to develop and train the deep learning model
Fig. 4
Fig. 4
Original and predictive analysis of the proposed nnU-Net v2 model
Fig. 5
Fig. 5
Quantitative evaluation of segmentation performance using standard metrics (Precision, Recall, Dice, IoU, F1-score, and 95% Hausdorff Distance)
Fig. 6
Fig. 6

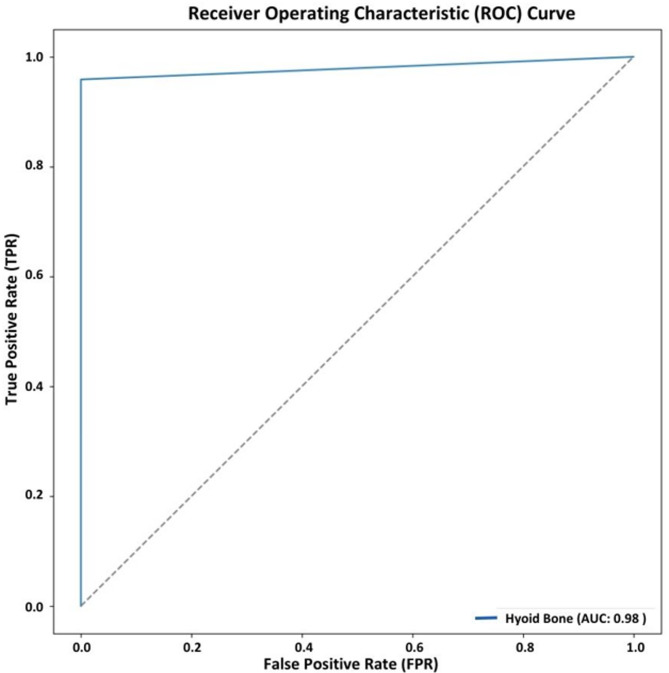

Visualization of the model’s ROC curve and reflection of performance success through the AUC value
Fig. 7
Fig. 7
DC and loss function values at each number of cycles of the model
