. 2025 Jun 26:16:1596306.
doi: 10.3389/fneur.2025.1596306. eCollection 2025.

Shared and distinct brain activation patterns of acupoints HT7, ST36, and KI4: a task-based fMRI study

Liyu Hu #  1   2 , Jinhuan Zhang #  1 , Xiaoxiong Wu  3 , Xingxian Huang  1 , Xinbei Li  4 , Xingchen Liu  5 , Hanqing Lyu  4 , Nan Yang  5 , Jinping Xu  2 , Haibo Yu  1
Affiliations

Shared and distinct brain activation patterns of acupoints HT7, ST36, and KI4: a task-based fMRI study

Liyu Hu et al. Front Neurol. .

Abstract

Objective: We aimed to investigate the shared and distinct of brain responses to manual acupuncture at HT7, ST36, and KI4.

Methods: Sixteen healthy participants receiving acupuncture at HT7, 19 at ST36, and 16 at KI4. All subjects experienced deqi sensation without severe pain during the acupuncture sessions. Task-functional magnetic resonance imaging was performed to explore the common and specific brain activation networks. The activation networks were further decoded for functional characterization and analyzed for network components.

Results: We found convergence deactivation in the left cerebellar crus II across all three acupoints. Additionally, specific patterns of deactivated brain network were observed: the left superior occipital gyrus, middle temporal gyrus, and inferior parietal lobule was predominately deactivated for the HT7, the left cerebellar Crus I and right middle occipital gyrus was primarily deactivated for the ST36, and the posterior cerebellum was mainly deactivated for the KI4. They were all involved in the default, attentional, and visual networks. In addition, the control network was also related to HT7, the limbic network to ST36, and the salient network to KI4. These functional networks were linked to spatial vision and cognition, with HT7 and ST36 also influencing emotional processing.

Conclusions: All three acupoints caused shared deactivation in the left cerebellar Crus II, highlighting it as a significant region of neural convergence in acupuncture's brain modulation. HT7 and ST36 jointly influenced emotional processing, while KI4 targeted pain-cognition pathways. These findings support "acupoint-effect specificity" and guide clinical applications.

Keywords: acupoint specificity; acupuncture; brain network; deqi; task functional magnetic resonance imaging.

PubMed Disclaimer

Conflict of interest statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Figures

Figure 1
Figure 1

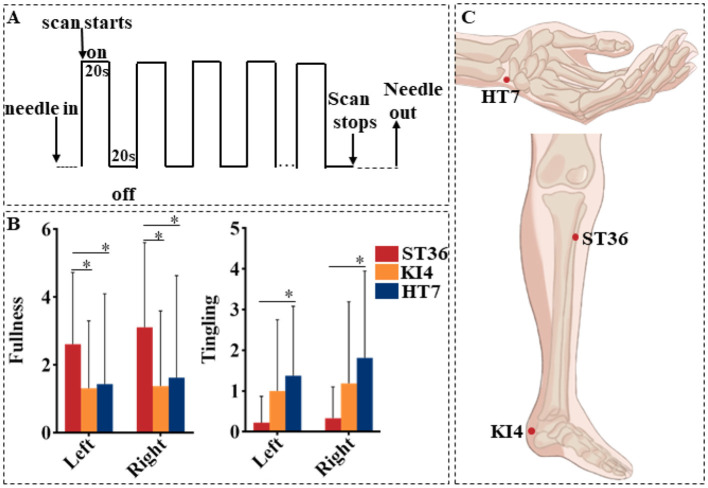

(A) The acupuncture stimulation paradigm. On denotes needle twirling and off denotes needle retention. (B) Differences of deqi scores among three groups. *Means P < 0.05. (C) The location of acupoints.
Figure 2
Figure 2

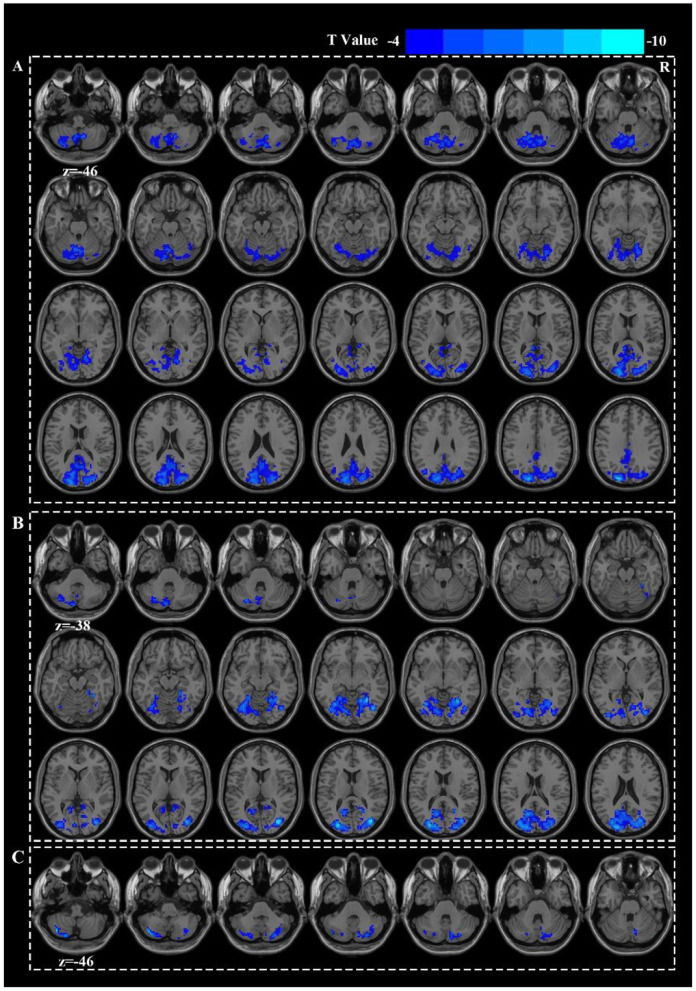

Active patterns for HT7 (A), ST36 (B), and KI4 (C).
Figure 3
Figure 3
Commonly activated brain regions across three acupoints (A) and their functional characteristics (B).
Figure 4
Figure 4

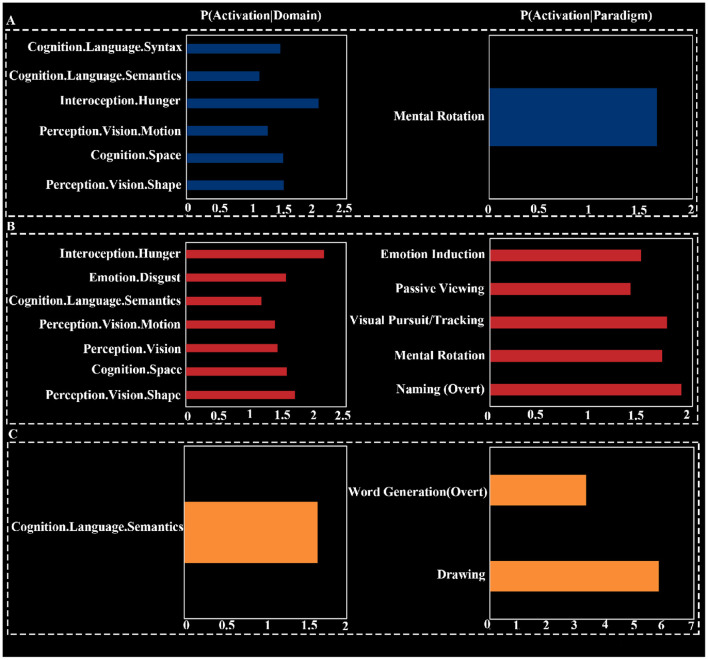

Functional characterization for HT7 (A), ST36 (B), and KI4 (C).
Figure 5
Figure 5

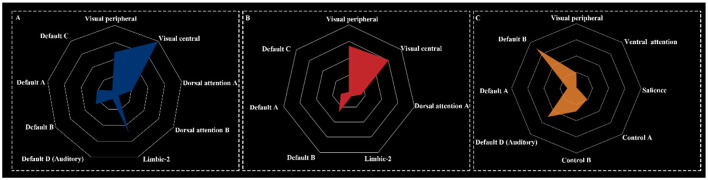

Network components for HT7 (A), ST36 (B), and KI4 (C).
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Han R. Acupuncture: an overview on its functions, meridian pathways and molecular mechanisms. Am J Chin Med. (2024) 52:1215–44. 10.1142/S0192415X24500496 - DOI - PubMed
    1. Langevin HM, Wayne PM. What is the point? The problem with acupuncture research that no one wants to talk about. J Altern Complement Med. (2018) 24:200–7. 10.1089/acm.2017.0366 - DOI - PMC - PubMed
    1. Kong J, Kaptchuk TJ, Webb JM, Kong J-T, Sasaki Y, Polich GR, et al. Functional neuroanatomical investigation of vision-related acupuncture point specificity–a multisession fMRI study. Hum Brain Mapp. (2009) 30:38–46. 10.1002/hbm.20481 - DOI - PMC - PubMed
    1. Wesolowski T, Lotze M, Domin M, Langner S, Lehmann C, Wendt M, et al. Acupuncture reveals no specific effect on primary auditory cortex: a functional magnetic resonance imaging study. Neuroreport. (2009) 20:116–20. 10.1097/WNR.0b013e328321004d - DOI - PubMed
    1. Zhang WT, Jin Z, Luo F, Zhang L, Zeng YW, Han JS. Evidence from brain imaging with fMRI supporting functional specificity of acupoints in humans. Neurosci Lett. (2004) 354:50–3. 10.1016/j.neulet.2003.09.080 - DOI - PubMed
