Multi-Scale Attention Fusion Gesture-Recognition Algorithm Based on Strain Sensors

Abstract

Surface electromyography (sEMG) signals are commonly employed for dynamic-gesture recognition. However, their robustness is often compromised by individual variability and sensor placement inconsistencies, limiting their reliability in complex and unconstrained scenarios. In contrast, strain-gauge signals offer enhanced environmental adaptability by stably capturing joint deformation processes. To address the challenges posed by the multi-channel, temporal, and amplitude-varying nature of strain signals, this paper proposes a lightweight hybrid attention network, termed MACLiteNet. The network integrates a local temporal modeling branch, a multi-scale fusion module, and a channel reconstruction mechanism to jointly capture local dynamic transitions and inter-channel structural correlations. Experimental evaluations conducted on both a self-collected strain-gauge dataset and the public sEMG benchmark NinaPro DB1 demonstrate that MACLiteNet achieves recognition accuracies of 99.71% and 98.45%, respectively, with only 0.22M parameters and a computational cost as low as 0.10 GFLOPs. Extensive experimental results demonstrate that the proposed method achieves superior performance in terms of accuracy, efficiency, and cross-modal generalization, offering a promising solution for building efficient and reliable strain-driven interactive systems.

Keywords: cross-modal recognition; dynamic-gesture recognition; hybrid attention mechanism; multi-scale feature fusion; strain sensors.

Figure 1

Structural diagram of the multi-channel strain signal acquisition and processing system.

Figure 2

Schematic diagram of strain-gauge sensor layout.

Figure 3

Classification and execution diagram for the dynamic gestures. Each gesture involves a continuous transition from an initial neutral state to the final hand posture. For gestures with intermediate transitional postures, arrows are used to indicate the direction of change between steps.

Figure 4

Overall architecture of the proposed lightweight multi-branch hybrid attention network, MACLiteNet.

Figure 5

Structure of the Causal Depthwise Separable Convolution block.

Figure 6

Structure of the MSF module.

Figure 7

Structure of the DPCA module.

Figure 8

Average confusion matrices over five-fold cross-validation under different network configurations: (a) Baseline; (b) Baseline + LTMB; (c) Baseline + MSF; (d) Baseline + DPAC; (e) Baseline + MSF + DPAC; and (f) Proposed.

Figure 8

Average confusion matrices over five-fold cross-validation under different network configurations: (a) Baseline; (b) Baseline + LTMB; (c) Baseline + MSF; (d) Baseline + DPAC; (e) Baseline + MSF + DPAC; and (f) Proposed.

Figure 9

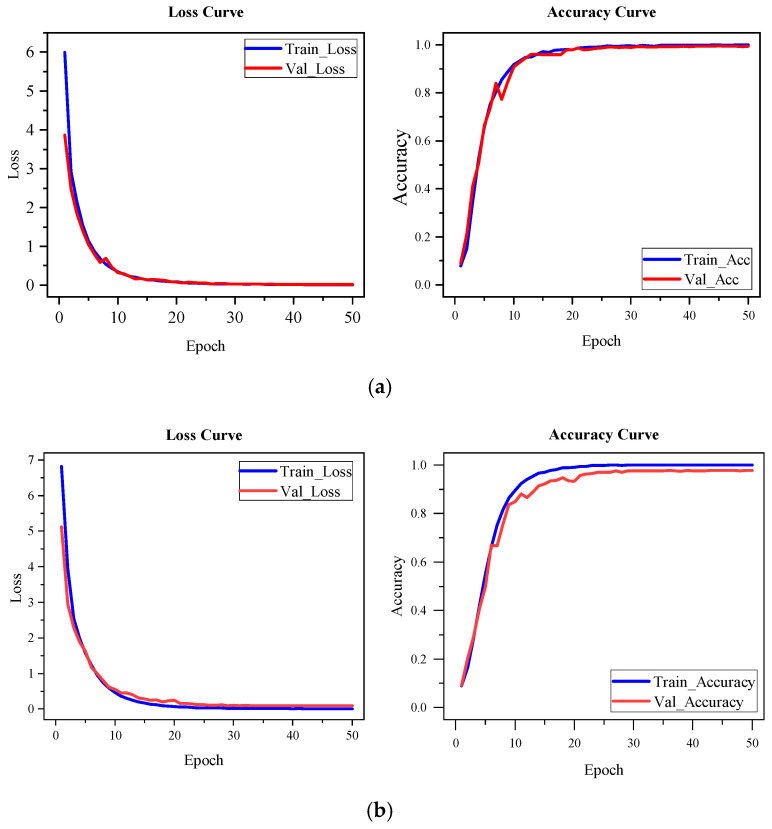

Training process comparison for the proposed model, on different modalities: (a) training accuracy and loss curves on the self-constructed strain-gauge dataset; (b) training accuracy and loss curves on the public sEMG dataset (NinaPro DB1).

Figure 10

Performance comparisons of different models relative to key classification metrics.
