Structures of MmpL complexes reveal the assembly and mechanism of this family of transporters

Abstract

We co-expressed the MmpL5 transporter and MmpS5 adaptor proteins in Mycobacterium smegmatis and defined their structures from these detergent-solubilized crude membranes. Data generated from these samples allowed us to simultaneously solve three distinct classes of membrane protein complexes to high resolutions. We observed that MmpL5 presents as a monomer in complex with the cytosolic meromycolate extension acyl carrier protein M (AcpM) in a molar ratio of 1:1, where these AcpM-MmpL5 complexes closely pack together to generate regular two-dimensional arrays. We also identified MmpL5 as a trimer that interacts with MmpS5 and AcpM in a molar ratio of 3:3:3 to assemble the tripartite complex AcpM-MmpL5-MmpS5 that spans both the inner and outer membranes of the mycobacterium. In addition, we discovered that MmpL5 and AcpM are able to form the trimeric AcpM-MmpL5 complex in a molar ratio of 3:3. The structural data reveal that the full-length MmpL5 trimer is capable of spanning the entire mycobacterial cell envelope to transport substrates. However, this assembly requires the presence of MmpS5 to stabilize secondary structural features of the MmpL5 periplasmic subdomains.

Fig 1.

Duplicated AcpM-MmpL5 units form 2D arrays. (A) Side view, (B) top view and (C) bottom view of the cryo-EM maps and ribbon diagrams of duplicated AcpM-MmpL5 units within the 2D arrays. Individual MmpL5 molecules are in different colors. Each AcpM molecule is colored orange. (D) Structure of an individual AcpM-MmpL5 unit within the AcpM-MmpL5 arrays.

Fig 2.

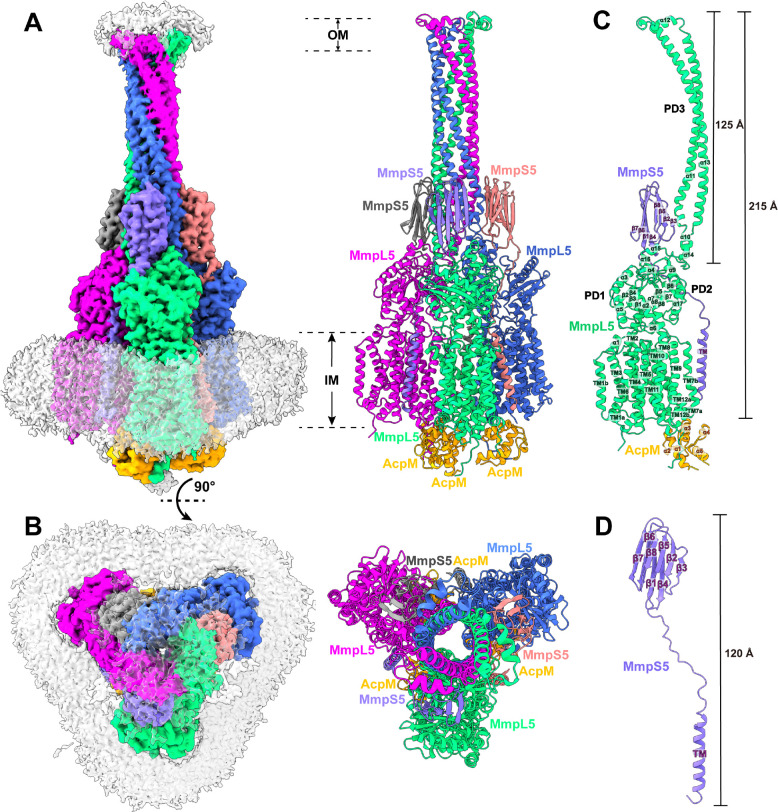

Structure of the tripartite AcpM-MmpL5-MmpS5 complex. (A) Side view and (B) top view of the cryo-EM maps and ribbon diagrams of the AcpM-MmpL5-MmpS5 complex. The structure indicates that MmpL5 assembles as a trimer. The stoichiometry of AcpM:MmpL5:MmpS5 within the complex is in the form of a 3:3:3 molar ratio. Individual MmpL5 and MmpS5 molecules are colored differently. The AcpM molecules are colored orange and the detergent belts in the cryo-EM maps are colored gray. The inner and outer membrane regions are indicated as IM and OM, respectively. (C) Structure of a single unit of AcpM-MmpL5-MmpS5 within the trimeric complex. The structure indicates that the PD3 subdomain of MmpL5 forms an elongated hairpin of 125 Å in length, resulting in a vertical dimension of the MmpL5 protomer to be 215 Å. (D) Structure of a molecule of the MmpS5 adaptor. The structure indicates that MmpS5 is an elongated protein 120 Å long that is composed of an N-terminal transmembrane domain of one single helix (TM) and a C-terminal periplasmic domain of eight β strands (β1-β8).

Fig 3.

Structure of the trimeric PD3 channel. (A) Ribbon diagrams and electrostatic surface potentials of the side and top views of the trimer PD3 channel. The three PD3 domains of the MmpL5 trimer are in different colors. The blue (> 10 k_BT) and red (< −10 k_BT) colors of the electrostatic surface potential indicate the positively and negatively charged areas of the protein, respectively, where k_B is the Boltzmann constant and T is absolute temperature. White denotes area between 10 k_BT and −10 k_BT. The needle-like apparatus of the PD3 channel is 125 Å long and 40 Å wide. (C) The interior of the central channel creates a pathway for transporting substrates. The channel, calculated by HOLE (http://www.holeprogram.org), is indicated by cyan dots. Residues forming the restriction sites and narrowest regions of the channel are represented with sticks. (D) The elongated substrate transport channel connecting the outer leaflet of the inner membrane up to the outer mycomembrane. The beginning of this channel is generated by a hydrophobic pocket created by TM7-TM10 of MmpL5. This channel (colored blue) was calculated using the program CAVER (http://loschmidt.chemi.muni.cz/caver). In both (B) and (C), the restriction site is created by residues M615 and F619 of each PD3 subdomain of the MmpL5 trimer.

Fig 4.

MmpL5-MmpS5 interactions. Protomers 1, 2 and 3 of MmpL5 within the trimer are colored green, blue and magenta, respectively. Molecules 1, 2 and 3 of MmpS5 are colored salmon, gray and slate, respectively. The three AcpM molecules are colored orange. The TM helix of molecule 1 of MmpS5 (colored salmon) solely interacts with TM8 of protomer 1 of MmpL5 through hydrophobic interactions. The all β strand periplasmic domain of molecule 1 of MmpS5 predominantly contacts protomer 2 of MmpL5 via hydrogen-bonds and dipole-dipole interactions. This all β strand domain of molecule 1 of MmpS5 also interacts with protomer 3 of MmpL5 via hydrogen-bonds and charge-charge interactions. In addition, residues of the loop region of molecule 1 of MmpS5 contact protomers 1 and 2 of MmpL5 through hydrogen-bonds, charge-charge, dipole-dipole, and hydrophobic interactions to further strengthen the binding. Residues participating in these interactions are in sticks. The hydrogen-bonds are indicated with dotted lines.

Fig 5.

Structure of the dipartite AcpM-MmpL5 complex. (A) Side view and (B) top view of the cryo-EM maps and ribbon diagrams of the AcpM-MmpL5 complex. The structure indicates that MmpL5 assembles as a trimer. The stoichiometry of AcpM:MmpL5 within the complex is in the form of a 3:3 molar ratio. Individual MmpL5 molecules are colored differently. The AcpM molecules are colored orange and the detergent belts in the cryo-EM maps are colored gray. The inner membrane region is indicated as IM. (C) Structure of a single unit of AcpM-MmpL5 within the trimeric complex. The structure indicates that the top half of the PD3 hairpin is unstructured.

Fig 6.

Proposed mechanism for the assembly of the AcpM-MmpL5-MmpS5 trimeric complex. In the absence of MmpS5, the AcpM-MmpL5 molecules form 2D arrays, which facilitate their lateral diffusion along the inner membrane of the mycobacterium. In the presence of MmpS5, MmpL5 forms a trimer and the tripartite AcpM-MmpL5-MmpS5 complex assembles. The trimer oligomerization of MmpL5 and the interaction between MmpL5 and MmpS5 stabilize the secondary structural elements of the three PD3 subdomains of the MmpL5 trimer, allowing them to create an elongated channel which protrudes towards the outer mycomembrane. The presence of the arabinogalactan (AG) and peptidoglycan (PG) layers create sufficient resistance to prevent the lateral movement of the trimeric AcpM-MmpL5-MmpS5 complex on the membrane plane. After the extrusion of substrates, the trimeric AcpM-MmpL5-MmpS5 complex can be dismantled by removing the three MmpS5 adaptor molecules to form the trimeric AcpM-MmpL5 complex. In this state, the secondary structural elements of subdomain PD3 of MmpL5 become unsteady and the top portion of the secondary structure of the hairpin becomes untraceable. The trimeric AcpM-MmpL5 complex then dismantles to form three monomeric AcpM-MmpL5 complexes, where the secondary structural elements of the entire PD3 subdomain of each MmpL5 molecule are untraceable and form a flexible loop. These AcpM-MmpL5 monomers then repack and form 2D arrays to stabilize the AcpM-MmpL5 complex structure.
