. 2025 Jul 16;20(7):e0311739.
doi: 10.1371/journal.pone.0311739. eCollection 2025.

Surveillance of tuberculosis incidence and mortality through spatio-temporal analysis in Oyo State, Nigeria

Titilade Kehinde Ayandeyi Teibo  1 , Thais Zamboni Berra  1 , Yan Mathias Alves  1 , Reginaldo Bazon Vaz Tavares  1 , Oluwaseyi Ademo Olayemi  2 , Ricardo Alexandre Arcêncio  1
Affiliations

Surveillance of tuberculosis incidence and mortality through spatio-temporal analysis in Oyo State, Nigeria

Titilade Kehinde Ayandeyi Teibo et al. PLoS One. .

Abstract

The study aimed to describe the epidemiological profile of Tuberculosis (TB) and analyze the spatial distribution and temporal trend of TB incidence and mortality in Oyo state Nigeria from 2015-2019. The study was composed of TB cases and deaths reported by the Oyo State Health Secretariat between 2015 and 2019. The purely spatial, space-time scanning and the Getis-Ord Gi* techniques were used to analyze the spatial characteristics of TB and to identify areas at risk for its occurrence and deaths based on rates in each unit of analysis - Local Government Area (LGA), while the time series analysis technique was used to assess the characteristics of TB in Oyo state over the period studied. The standardized rates of sex and age were considered for data analysis. We analyzed 28,670 new cases of pulmonary and extra pulmonary TB as well as 1142 deaths reported in all LGAs between 2015 and 2019. Ibadan South West local government had the highest rate and risk (334 cases per 100,000), solely constituting above 10% of all cases reported in all 33 LGAs and for deaths the rate was 19.01 cases/100,000 inhabitants. Ido and Oluyole LGAs were Hot Spot regions for TB with a 99% confidence interval (CI) for TB incidence; about TB mortality, five municipalities were identified with a spatial association at 95% CI. The historical series of TB incidence rate slightly increased between the years 2015-2017, with a sharp decline from then until 2019. The temporal trend for the incidence and mortality of TB in the period under study decreased. This study contributes to knowing the epidemiological profile, the spatial and temporal distribution, and areas with higher risk of TB transmission in Oyo state. This makes it possible for policy makers to target hotspot areas for intervention and disease prevention.

PubMed Disclaimer

Conflict of interest statement

The authors have declared that no competing interests exist.

Figures

Fig 1

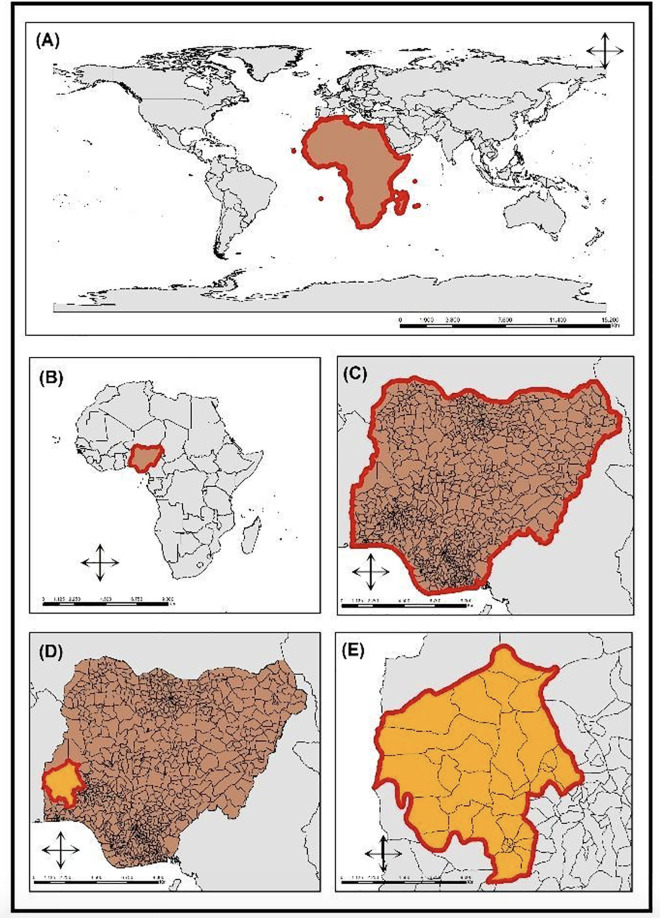

Fig 1. Geographic location of Oyo State, Nigeria. Legend: A) Geographical location of the African continent; B) Geographical location of Nigeria; C) Geographical division of Nigeria; D) Geographic location of Oyo state, Nigeria E) Geographic division of the LGAs of Oyo state. Source: Shapefile: Data Catalog – World Bank Group. Creation: Authors. Software: ArcGis version 10.5.
Fig 2

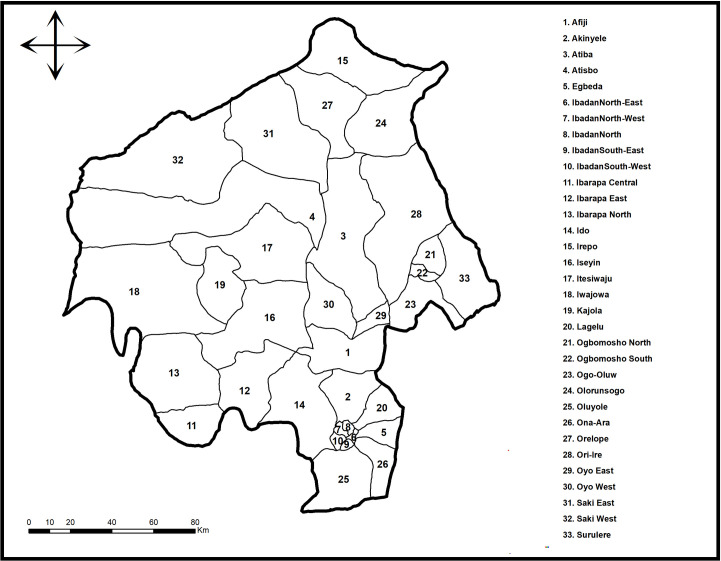

Fig 2. Geographic division of the LGAs of Oyo state, Nigeria.
Source: Shapefile: Data Catalog – World Bank Group. Creation: Authors. Software: ArcGis version 10.5.
Fig 3

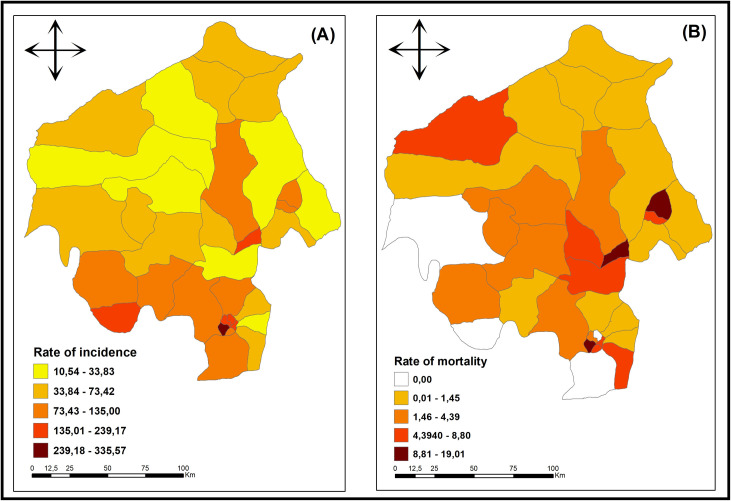

Fig 3. Distribution of tuberculosis incidence and mortality rates (per 100 thousand inhabitants), Oyo – Nigeria (2015 - 2019).
Legend: A) Distribution of tuberculosis average incidence rates according to LGAs in Oyo state, Nigeria (2015 - 2019); B). Distribution of tuberculosis average mortality rates according to LGAs in Oyo state Nigeria (2015 - 2019). Source: Data: Ministry of Health of Nigeria; Shapefile: Data Catalog – World Bank Group; Creation and analysis: Authors; Software: ArcGis version 10.5.
Fig 4

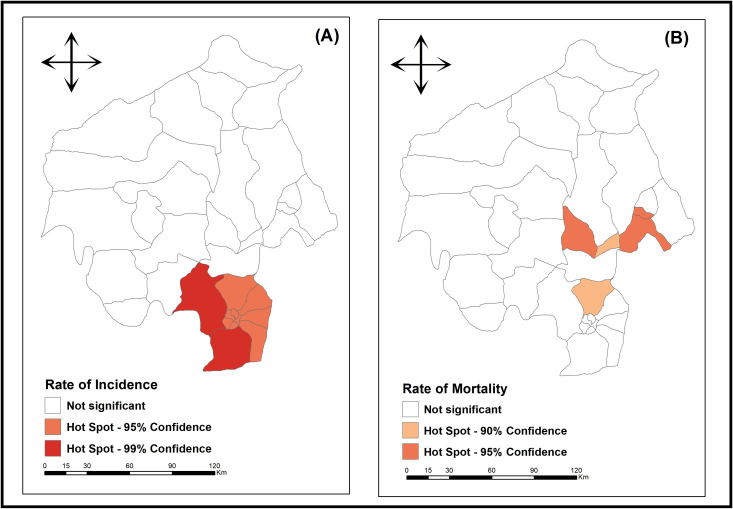

Fig 4. Areas with spatial association for tuberculosis incidence and mortality, Oyo – Nigeria (2015 - 2019).
Legend: A) LGAs with spatial association for tuberculosis average incidence rate in Oyo state, Nigeria (2015 - 2019); B) LGAs with spatial association for tuberculosis average mortality rate in Oyo state, Nigeria (2015 - 2019). Source: Data: Ministry of Health of Nigeria; Shapefile: Data Catalog – World Bank Group; Creation and analysis: Authors; Software: ArcGis version 10.5.
Fig 5

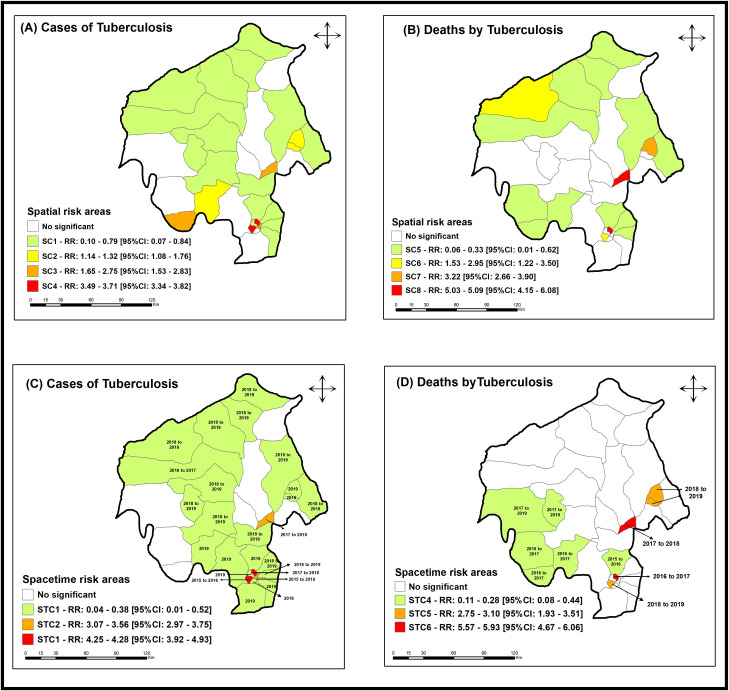

Fig 5. Areas with spatial risk for tuberculosis cases and deaths, Oyo – Nigeria (2015 - 2019).
Legend: A) LGAs with spatial risk for tuberculosis cases in Oyo state, Nigeria (2015–2019); B) LGAs with spatial risk for tuberculosis deaths in Oyo state, Nigeria (2015–2019). Source: Data: Ministry of Health of Nigeria; Shapefile: Data Catalog – World Bank Group; Creation and analysis: Authors; Software: ArcGis version 10.5.
Fig 6

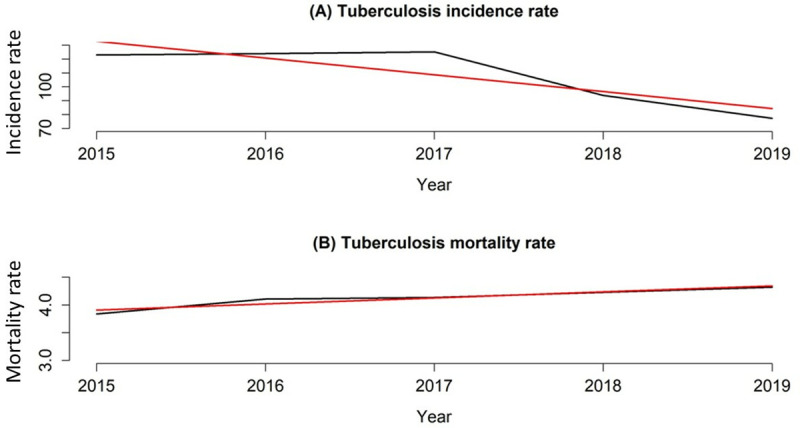

Fig 6. Series and time trend of tuberculosis incidence and mortality rates, Oyo – Nigeria (2015 - 2019).
Legend: A) Series (black line) and time trend (red line) of tuberculosis incidence rate in Oyo state, Nigeria (2015–2019); B) Series (black line) and time trend (red line) of tuberculosis mortality rate in Oyo state, Nigeria (2015–2019). Source: Data: Ministry of Health of Nigeria; Creation and analysis: Authors; Software: RStudio version 3.3.0.
See this image and copyright information in PMC

References

    1. World Health Organization. Global strategy and targets for tuberculosis prevention, care, and control after 2015. 2021. https://www.who.int/publications/digital/global-tuberculosis-report-2021...
    1. Teibo TKA, Andrade RL de P, Rosa RJ, Tavares RBV, Berra TZ, Arcêncio RA. Geo-spatial high-risk clusters of Tuberculosis in the global general population: a systematic review. BMC Public Health. 2023;23(1):1586. doi: 10.1186/s12889-023-16493-y - DOI - PMC - PubMed
    1. World Health Organization WHO. Global Tuberculosis Report 2019. Geneva: World Health Organization. 2020. https://iris.who.int/bitstream/handle/10665/329368/9789241565714-eng.pdf
    1. World Health Organization WHO. Africa’s fight against TB: the gains and the challenges. https://www.un.org/africarenewal/magazine/africa%E2%80%99s-fight-against.... Accessed 2024 February 2.
    1. Otu A. A review of the national tuberculosis and leprosy control programme (ntblcp) of Nigeria: Challenges and prospects. Ann Trop Med Public Health. 2013;6(5):491. doi: 10.4103/1755-6783.133685 - DOI
