. 2025 Jul 14;26(14):6735.
doi: 10.3390/ijms26146735.

TIM-3/Galectin-9 Immune Axis in Colorectal Cancer in Relation to KRAS, NRAS, BRAF, PIK3CA, AKT1 Mutations, MSI Status, and the Cytokine Milieu

Błażej Ochman  1 , Anna Kot  1 , Sylwia Mielcarska  1 , Agnieszka Kula  2 , Miriam Dawidowicz  2 , Dorota Hudy  1 , Monika Szrot  3 , Jerzy Piecuch  3 , Dariusz Waniczek  2 , Zenon Czuba  4 , Elżbieta Świętochowska  1
Affiliations

TIM-3/Galectin-9 Immune Axis in Colorectal Cancer in Relation to KRAS, NRAS, BRAF, PIK3CA, AKT1 Mutations, MSI Status, and the Cytokine Milieu

Błażej Ochman et al. Int J Mol Sci. .

Abstract

In this study, we investigated the expression of TIM-3 and Galectin-9 (Gal-9) in colorectal cancer (CRC) and their associations with oncogenic mutations, MSI status, cytokine profiles, and transcriptional data. TIM-3 and Gal-9 protein levels were significantly increased in CRC tissues compared to matched non-tumor margins (p < 0.05 and p < 0.001, respectively). TIM-3 protein concentration was notably higher in PIK3CA-mutated tumors (p < 0.05), while no associations were found with KRAS, NRAS, BRAF, AKT1, or MSI status. Multiplex cytokine profiling revealed strong correlations between TIM-3 and Gal-9 levels and key immunomodulatory pathways, including IL-10, IL-17, and chemokine signaling. We also observed significant associations with cytokine subsets involved in protumor activity and immune regulation. Gene set enrichment analysis (GSEA) demonstrated that high TIM-3 and Gal-9 expression was associated with upregulation of cell cycle-related pathways, and downregulation of immune signatures, such as interferon responses and TNF-α/NFκB signaling. These findings suggest that increased TIM-3 and Gal-9 expression reflects a shift toward proliferative activity and immune suppression in the CRC tumor microenvironment, highlighting their potential as biomarkers of immunoevasive tumor phenotypes, especially in PIK3CA-mutant CRC tumors.

Keywords: BRAF; Galectin-9; KRAS; NRAS; PIK3CA; TIM-3; colorectal neoplasms; microsatellite instability (MSI); tumor immune microenvironment.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflicts of interest.

Figures

Figure 1
Figure 1

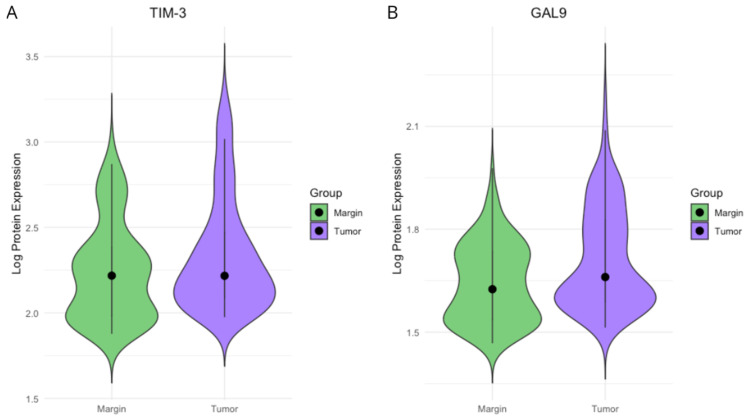

(A) TIM-3 protein expression in CRC tissues versus adjacent surgical margins. Wilcoxon signed-rank test (p < 0.001). (B) Gal-9 protein expression in CRC tissues and matched margins. Wilcoxon signed-rank test indicated a highly significant difference, with a p-value < 0.001. All data were subjected to log10 transformation prior to analysis.
Figure 2
Figure 2

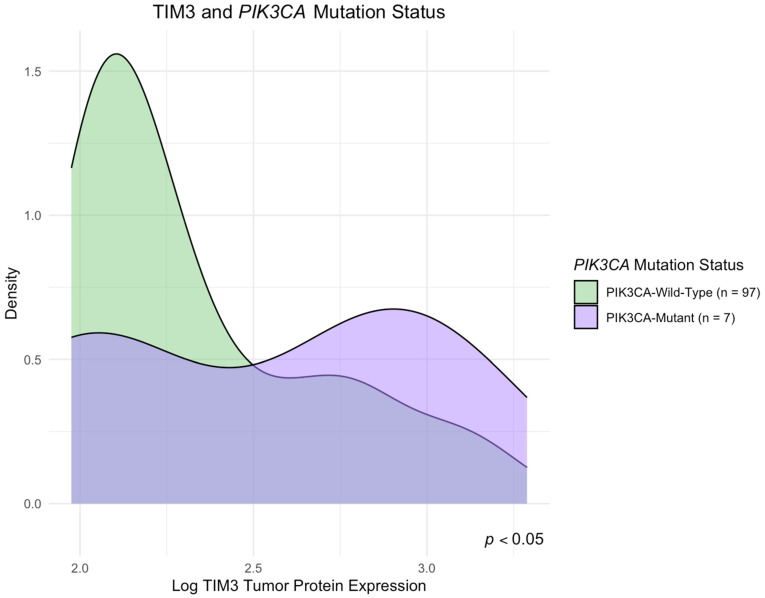

TIM-3 protein concentration according to PIK3CA mutation. Density plot shows case counts (n) and significance level determined by the U–Mann–Whitney U test.
Figure 3
Figure 3

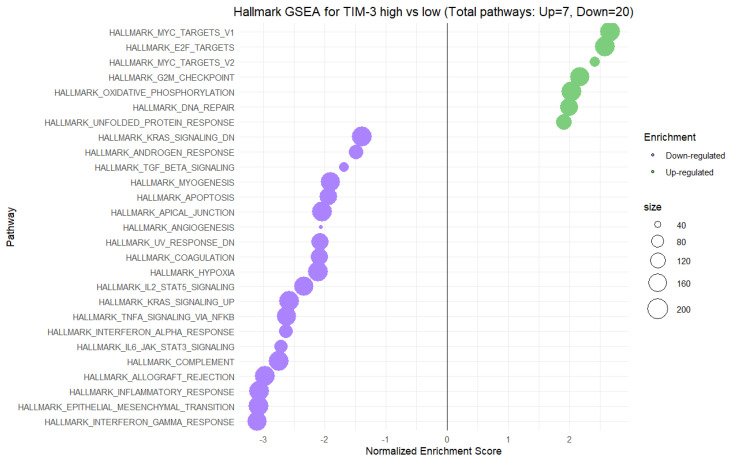

Hallmark gene set enrichment analysis (GSEA) comparing high vs. low expression of TIM-3 in CRC tissues.
Figure 4
Figure 4
Hallmark gene set enrichment analysis (GSEA) comparing high vs. low expression of TIM-3 in CRC tissues.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Fan A., Wang B., Wang X., Nie Y., Fan D., Zhao X., Lu Y. Immunotherapy in Colorectal Cancer: Current Achievements and Future Perspective. Int. J. Biol. Sci. 2021;17:3837. doi: 10.7150/ijbs.64077. - DOI - PMC - PubMed
    1. Luis A., Diaz J., Shiu K.-K., Kim T.W., Jensen B.V., Jensen L.H., Punt C., Smith D., Garcia-Carbonero R., Benavides M., et al. Pembrolizumab versus Chemotherapy for Microsatellite Instability-High or Mismatch Repair-Deficient Metastatic Colorectal Cancer (KEYNOTE-177): Final Analysis of a Randomised, Open-Label, Phase 3 Study. Lancet Oncol. 2022;23:659. doi: 10.1016/S1470-2045(22)00197-8. - DOI - PMC - PubMed
    1. Overman M.J., Lonardi S., Wong K.Y.M., Lenz H.-J., Gelsomino F., Aglietta M., Morse M.A., Van Cutsem E., McDermott R., Hill A., et al. Durable Clinical Benefit with Nivolumab Plus Ipilimumab in DNA Mismatch Repair-Deficient/Microsatellite Instability-High Metastatic Colorectal Cancer. J. Clin. Oncol. Off. J. Am. Soc. Clin. Oncol. 2018;36:773–779. doi: 10.1200/JCO.2017.76.9901. - DOI - PubMed
    1. Singh M., Morris V.K., Bandey I.N., Hong D.S., Kopetz S. Advancements in Combining Targeted Therapy and Immunotherapy for Colorectal Cancer. Trends Cancer. 2024;10:598–609. doi: 10.1016/j.trecan.2024.05.001. - DOI - PubMed
    1. Joller N., Anderson A.C., Kuchroo V.K. LAG-3, TIM-3, and TIGIT: Distinct Functions in Immune Regulation. Immunity. 2024;57:206–222. doi: 10.1016/j.immuni.2024.01.010. - DOI - PMC - PubMed
