. 2025 Jul 14;14(14):4980.
doi: 10.3390/jcm14144980.

Placental Shear Wave Elastography Assessment in Early and Late Fetal Growth Restriction

Erika Cavanagh  1   2   3   4 , Kylie Crawford  1 , Jesrine Hong  1   4   5 , Davide Fontanarosa  2   3 , Christopher Edwards  2   3 , Marie-Luise Wille  6 , Jennifer Hong  4 , Vicki L Clifton  1 , Sailesh Kumar  1   4   7
Affiliations

Placental Shear Wave Elastography Assessment in Early and Late Fetal Growth Restriction

Erika Cavanagh et al. J Clin Med. .

Abstract

Background/Objectives: The application of shear wave elastography (SWE) for the assessment of placental disease is still unproven and there is limited data correlating placental biomechanical properties with aberrations in fetal growth. This study investigated changes in placental shear wave velocity (SWV) in early and late fetal growth restriction (FGR). Methods: We analyzed three study cohorts: Pregnancies with appropriate growth for gestational age (AGA) and those with early (<32 weeks') and late (>32 weeks') FGR. Mean SWV at two time points was compared in the following cohorts: all FGR vs. AGA, early FGR vs. late FGR, early FGR vs. AGA, and late FGR vs. AGA. Results: The study comprised 222 women-79 (35.6%) FGR and 143 (64.4%) AGA. Of the FGR pregnancies, 37 (46.8%) were early and 42 (53.2%) were late. On multivariate analysis mean, SWV was not increased in FGR compared to AGA placentae (β 0.21, 95% CI -0.17-0.60, p 0.28). It was also not increased in early FGR compared to late FGR or AGA placentae (β 0.36, 95% CI -0.06-0.77, p 0.09). We observed an effect measure modification by pre-eclampsia, increasing mean SWV to a greater extent in AGA compared to FGR cases. Conclusions: Although previous studies have shown an association between placental SWV and FGR, our study showed no difference between cases and controls. The interaction of pre-eclampsia indicated that SWE may have a greater role in pre-eclampsia than in FGR alone. Further investigation of the influence of increased maternal vascular pressure on placental stiffness would be beneficial.

Keywords: fetal growth restriction; placental elastography; placental stiffness; pre-eclampsia; shear wave elastography; ultrasound.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Figures

Figure 1
Figure 1
Placental 2D-SWE display demonstrating acquisition of SWV measurement with 10 mm region-of-interest (ROI); left image shows 2D color-coded shear wave speed map; right image shows reliability propagation map with parallel lines representing areas of high reliability.
Figure 2
Figure 2

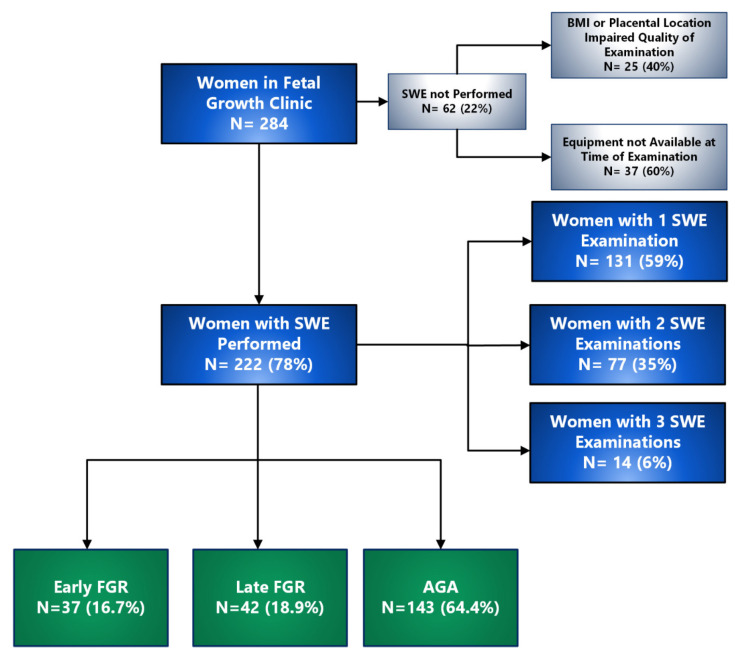

Study flow chart. SWE: shear wave elastography, BMI: body mass index, FGR: fetal growth restriction, AGA: appropriate for gestational age.
Figure 3
Figure 3

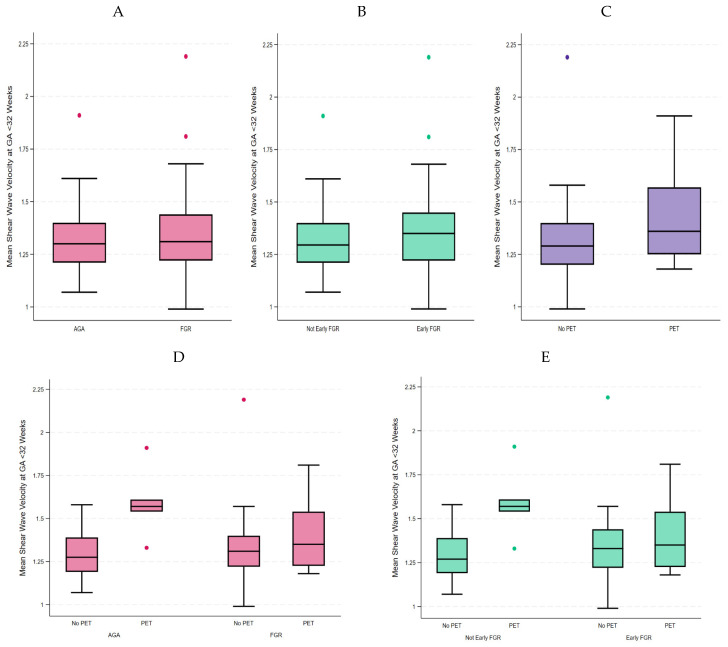

Mean SWV at final scan before 32 weeks: (A) All FGR, (B) Early FGR, (C) Pre-eclampsia, (D) FGR stratified by pre-eclampsia, and (E) Early FGR stratified by pre-eclampsia. GA: gestational age, AGA: appropriate for gestational age, FGR: fetal growth restriction, PET: pre-eclampsia.
Figure 4
Figure 4
Mean Shear Wave Velocity at final scan before birth: (A) All FGR, (B) Early FGR, (C) Pre-eclampsia, (D) FGR, (E) Early FGR, and (F) Late FGR stratified by pre-eclampsia. AGA: appropriate for gestational age, FGR: fetal growth restriction, PET: pre-eclampsia.
See this image and copyright information in PMC
