DRL-Driven Intelligent SFC Deployment in MEC Workload for Dynamic IoT Networks

Abstract

The rapid increase in the deployment of Internet of Things (IoT) sensor networks has led to an exponential growth in data generation and an unprecedented demand for efficient resource management infrastructure. Ensuring end-to-end communication across multiple heterogeneous network domains is crucial to maintaining Quality of Service (QoS) requirements, such as low latency and high computational capacity, for IoT applications. However, limited computing resources at multi-access edge computing (MEC), coupled with increasing IoT network requests during task offloading, often lead to network congestion, service latency, and inefficient resource utilization, degrading overall system performance. This paper proposes an intelligent task offloading and resource orchestration framework to address these challenges, thereby optimizing energy consumption, computational cost, network congestion, and service latency in dynamic IoT-MEC environments. The framework introduces task offloading and a dynamic resource orchestration strategy, where task offloading to the MEC server ensures an efficient distribution of computation workloads. The dynamic resource orchestration process, Service Function Chaining (SFC) for Virtual Network Functions (VNFs) placement, and routing path determination optimize service execution across the network. To achieve adaptive and intelligent decision-making, the proposed approach leverages Deep Reinforcement Learning (DRL) to dynamically allocate resources and offload task execution, thereby improving overall system efficiency and addressing the optimal policy in edge computing. Deep Q-network (DQN), which is leveraged to learn an optimal network resource adjustment policy and task offloading, ensures flexible adaptation in SFC deployment evaluations. The simulation result demonstrates that the DRL-based scheme significantly outperforms the reference scheme in terms of cumulative reward, reduced service latency, lowered energy consumption, and improved delivery and throughput.

Keywords: deep reinforcement learning; internet of things; multi-access edge computing; network functions virtualization; service function chaining.

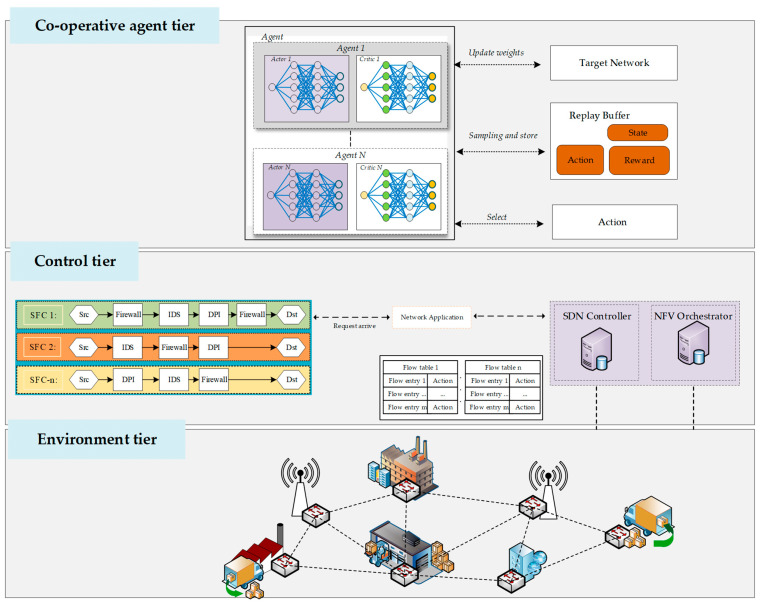

Figure 1

Multi-agent enabled in NFV for policy charging on resource utilization.

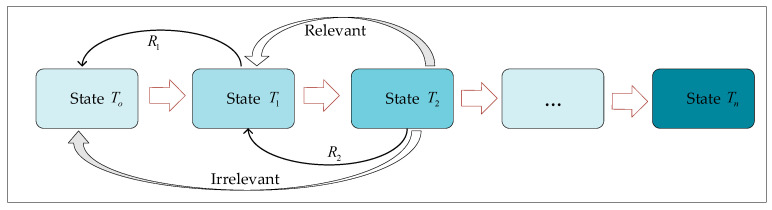

Figure 2

State space flow execution on an interval.

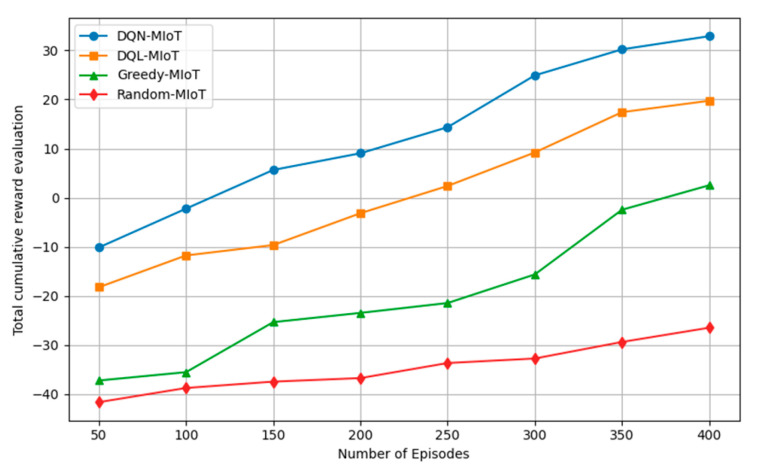

Figure 3

Result of cumulative reward evaluation.

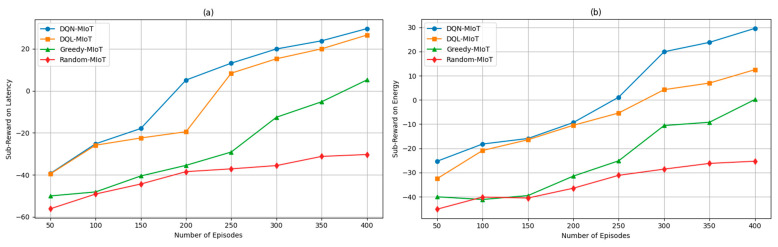

Figure 4

Performance metrics on sub-rewards of (a) latency and (b) energy.

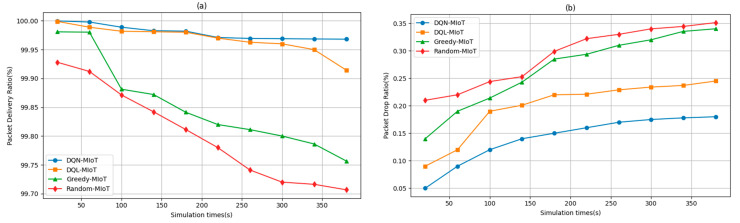

Figure 5

Performance metrics of (a) packet delivery and (b) packet drop ratio.

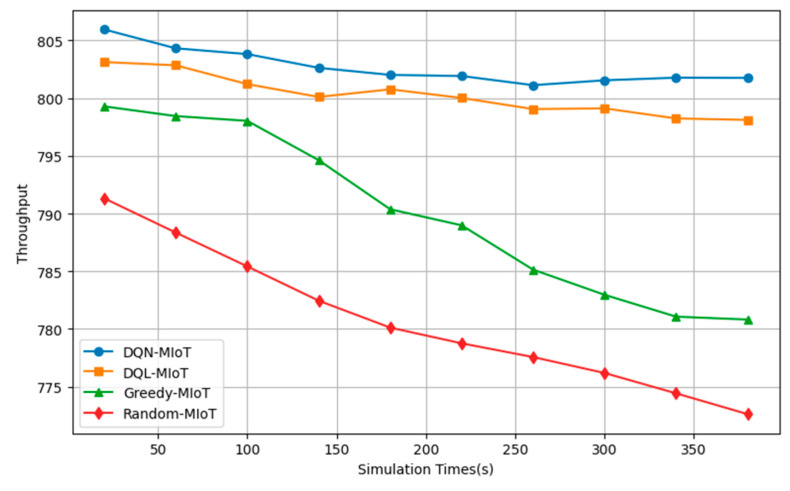

Figure 6

Result on throughput.
