. 2025 Jul 29;16(35):16004-16015.
doi: 10.1039/d5sc04306a. eCollection 2025 Sep 10.

Topochemical photocycloaddition in two-dimensional lead-halide coordination polymers with tunable phosphorescence

Zhongwei Chen  1 , Jin Wu  1 , Zeyu Deng  2 , Congcong Chen  3 , Jianning Feng  1 , Baixu Ma  3 , Lizhi Tao  3 , Lingling Mao  3 , Haipeng Lu  1
Affiliations

Topochemical photocycloaddition in two-dimensional lead-halide coordination polymers with tunable phosphorescence

Zhongwei Chen et al. Chem Sci. .

Abstract

Topochemical transformation in which the parent structural motifs are preserved has become a powerful strategy to access new advanced materials. Solid-state topochemical conversion in a single-crystal-to-single-crystal (SCSC) fashion is particularly attractive as it provides design principles with unequivocal structural details. Here, we report a series of two-dimensional (2D) lead-halide coordination polymers with bipyridyl ethylene (bpe) ligands that can undergo quantitative SCSC [2 + 2] photocycloaddition. The chemical and structural diversity of 2D lead-halide coordination polymers allows systematic modulation of the rate of SCSC [2 + 2] photocycloaddition by changing the halide and bpe ligands. Our work reveals the structure-property relationship in lead-halide coordination polymers during the dynamic [2 + 2] photocycloaddition process. The photo-transformed coordination polymers with cyclobutane linkages show drastically different properties in optical absorption and emission. We present a viable strategy to modify the structure and properties of lead-halide coordination polymers by post-synthetic modification.

PubMed Disclaimer

Conflict of interest statement

The authors declared that they have no conflicts of interest.

Figures

Scheme 1
Scheme 1. Schematic illustration for the design of lead halide coordination polymers and their solid-state [2 + 2] photocycloaddition process.
Fig. 1

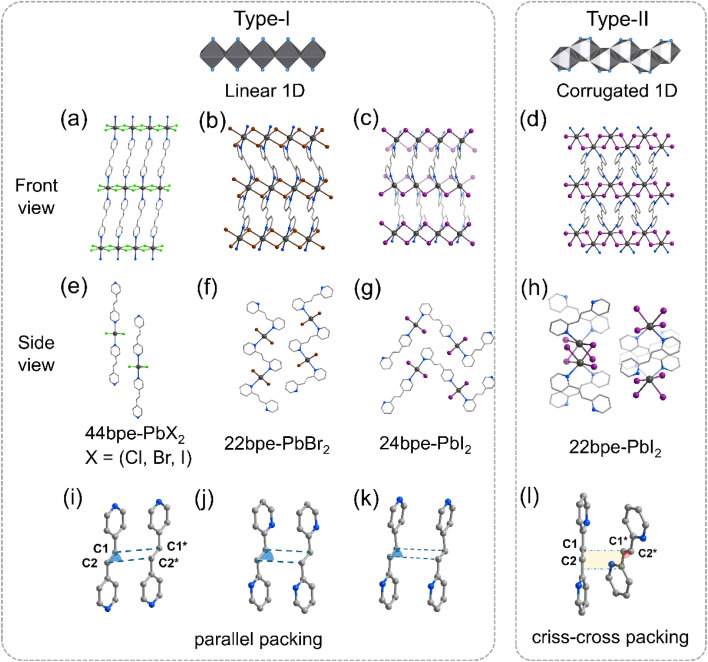

Fig. 1. Structures of bpe-based lead-halide CPs. (a–d) Front view of the 2D structures of 44bpe-PbX2 (X = Cl, Br, I), 22bpe-PbBr2, 24bpe-PbI2, and 22bpe-PbI2. (e–h) Side view of the 2D structures of 44bpe-PbX2, 22bpe-PbBr2, 24bpe-PbI2, and 22bpe-PbI2. (i–k) Parallel packing of 44bpe, 22bpe, and 24bpe. (l) Criss-cross packing of 22bpe. Green, blue, brown, purple, and dark spheres denote the Cl, N, Br, I, and Pb atoms, respectively. Gray sticks denote the C atoms.
Fig. 2

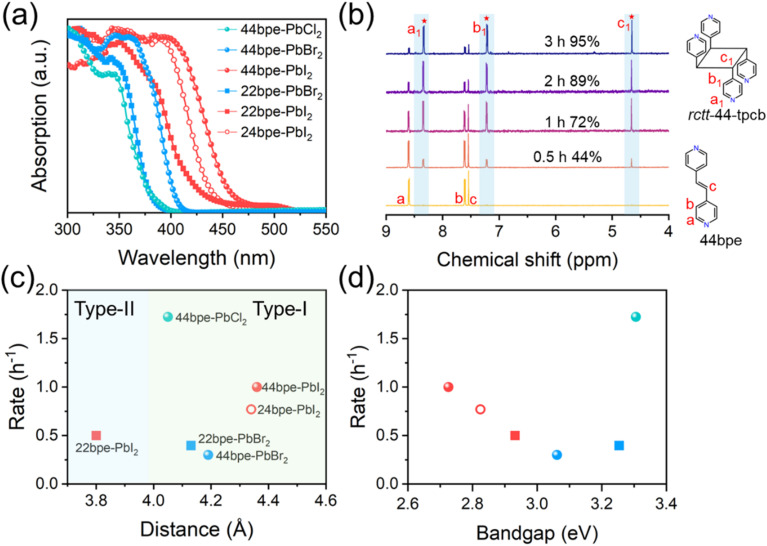

Fig. 2. (a) Absorption spectra of the bpe-PbX2 CPs. (b) 1H NMR spectra of 44bpe-PbCl2 under different irradiation times. (c) Photocycloaddition rates of the bpe-PbX2 CPs with different double bond distances. (d) The relationship between the photocycloaddition rates and bandgap.
Fig. 3
Fig. 3. Different conformations of cyclobutane photoproducts. (a) rctt. (b) rtct.
Fig. 4
Fig. 4. [2 + 2] Photocycloaddition induced SCSC transformation in bpe-PbX2 CPs. (a) 44bpe-PbCl2-P; the inset shows the single crystal after illumination, scale bar is 100 μm. (b) 44bpe-PbBr2-P. (c) 44bpe-PbI2-P. (d) 22bpe-PbBr2-P. (e) 24bpe-PbI2-P.
Fig. 5
Fig. 5. Absorption spectrum changes in bpe-PbX2 CPs after photocycloaddition. (a) 44bpe-PbCl2. (b) 44bpe-PbBr2. (c) 44bpe-PbI2. (d) 22bpe-PbBr2. (e) 22bpe-PbI2. (f) 24bpe-PbI2.
Fig. 6
Fig. 6. Photocycloaddition-induced PL spectrum changes in 44bpe-PbCl2 (a), 44bpe-PbBr2 (b), 44bpe-PbI2 (c), 22bpe-PbBr2 (d), and 24bpe-PbI2 (e). (f) PL lifetime of the bpe-PbX2 CPs.
Fig. 7
Fig. 7. Band decomposed partial charge densities of 22bpe-PbBr2 (top panel) and 22bpe-PbBr2-P (bottom panel) at VBM (left and middle panels) and CBM (right panel), respectively.
See this image and copyright information in PMC

References

    1. Lange R. Z. Hofer G. Weber T. Schlüter A. D. A Two-Dimensional Polymer Synthesized through Topochemical [2 + 2]-Cycloaddition on the Multigram Scale. J. Am. Chem. Soc. 2017;139:2053–2059. doi: 10.1021/jacs.6b11857. - DOI - PubMed
    1. Raju C. Ramteke G. R. Jose K. V. J. Sureshan K. M. Cascading Effect of Large Molecular Motion in Crystals: A Topotactic Polymorphic Transition Paves the Way to Topochemical Polymerization. J. Am. Chem. Soc. 2023;145:9607–9616. doi: 10.1021/jacs.3c00132. - DOI - PubMed
    1. Anderson C. L. Li H. Jones C. G. Teat S. J. Settineri N. S. Dailing E. A. Liang J. Mao H. Yang C. Klivansky L. M. Li X. Reimer J. A. Nelson H. M. Liu Y. Solution-processable and functionalizable ultra-high molecular weight polymers via topochemical synthesis. Nat. Commun. 2021;12:6818. doi: 10.1038/s41467-021-27090-1. - DOI - PMC - PubMed
    1. Biradha K. Santra R. Crystal engineering of topochemical solid state reactions. Chem. Soc. Rev. 2013;42:950–967. doi: 10.1039/C2CS35343A. - DOI - PubMed
    1. Rath B. B. Gallo G. Dinnebier R. E. Vittal J. J. Reversible Thermosalience in a One-Dimensional Coordination Polymer Preceded by Anisotropic Thermal Expansion and the Shape Memory Effect. J. Am. Chem. Soc. 2021;143:2088–2096. doi: 10.1021/jacs.0c12363. - DOI - PubMed
